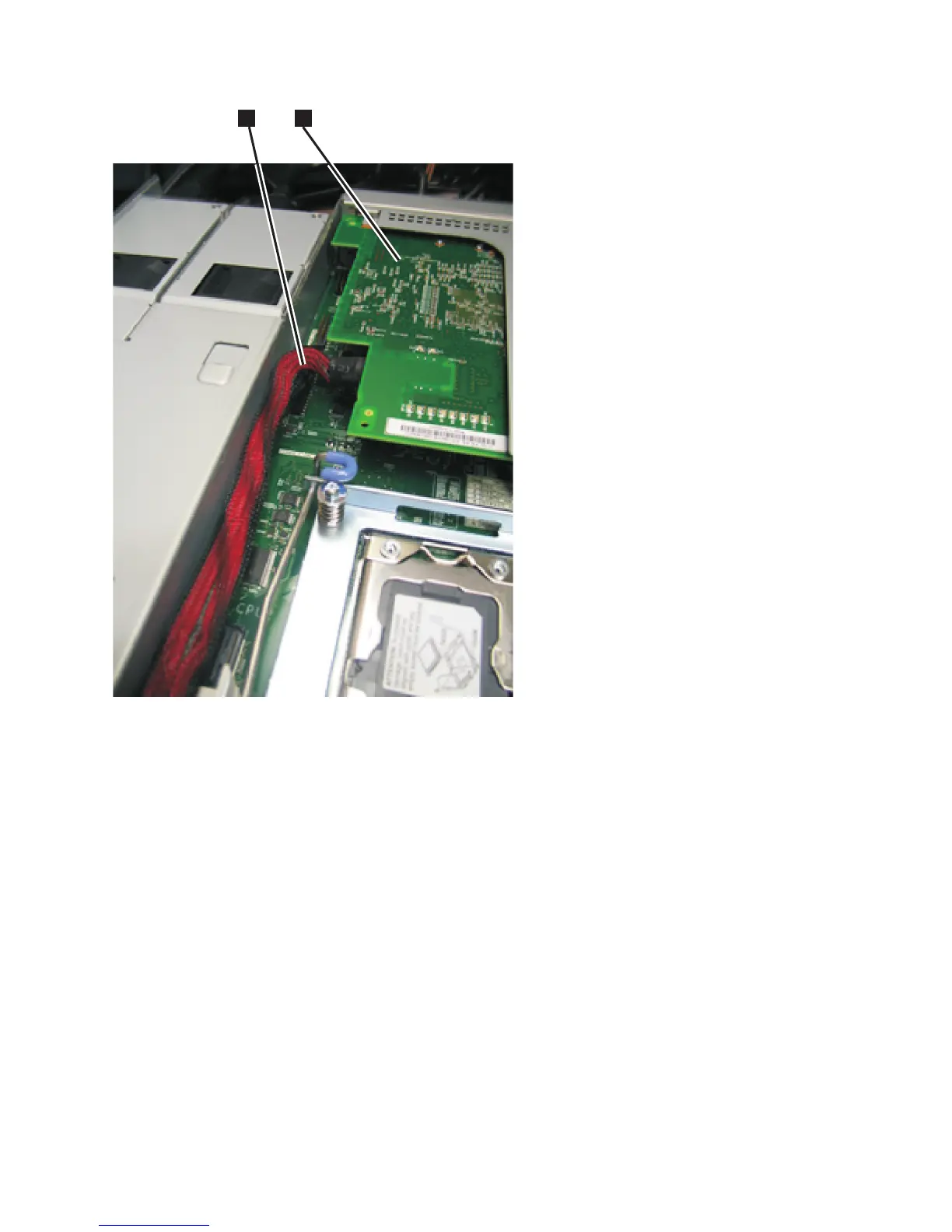

1 High-speed SAS cable plugged into the high-speed SAS adapter assembly

2 High-speed SAS adapter assembly

2. Attach the high-speed SAS cable to the high-speed SAS adapter.

Attach the cable so that the end with the label is to the front of the node and the end without the

label attaches to the adapter.

3. Replace the high-speed SAS adapter card, as described in “Replacing the SAN Volume Controller

2145-CF8 high-speed SAS adapter assembly” on page 173.

4. Disconnect the boot-disk SAS cable from the disk controller and move it out of the blue bulkhead clip.

5. Route the cable from the high-speed SAS adapter through the blue bulkhead clip behind the drive

backplane.

6. Attach the high-speed SAS cable to the SAS connector in the center of the back of the SAS drive back

plane. Use the connector that connects to drive bays 0, 1, 2, and 3.

The high-speed SAS cable is shown in Figure 196 on page 180.

Figure 195. High-speed SAS adapter assembly and high-speed SAS cable in the SAN Volume Controller 2145-CF8

Chapter 2. Removing and replacing parts 179
