To remove the cable-retention bracket, perform these steps:

1. Carefully remove the two retaining screws on the right side of the power supply rear plate shown in

Figure 26.

2. Remove the bracket.

3. Replace the screws in the power supply rear plate.

Removing the SAN Volume Controller 2145-8G4 cable retention bracket - option B:

Remove the cable-retention bracket before you remove the SAN Volume Controller 2145-8G4 from the

rack.

To remove the cable-retention bracket, perform these steps:

1. Remove the securing bolt from the node side rail (shown in Figure 27 on page 34) next to the power

supply.

svc00365

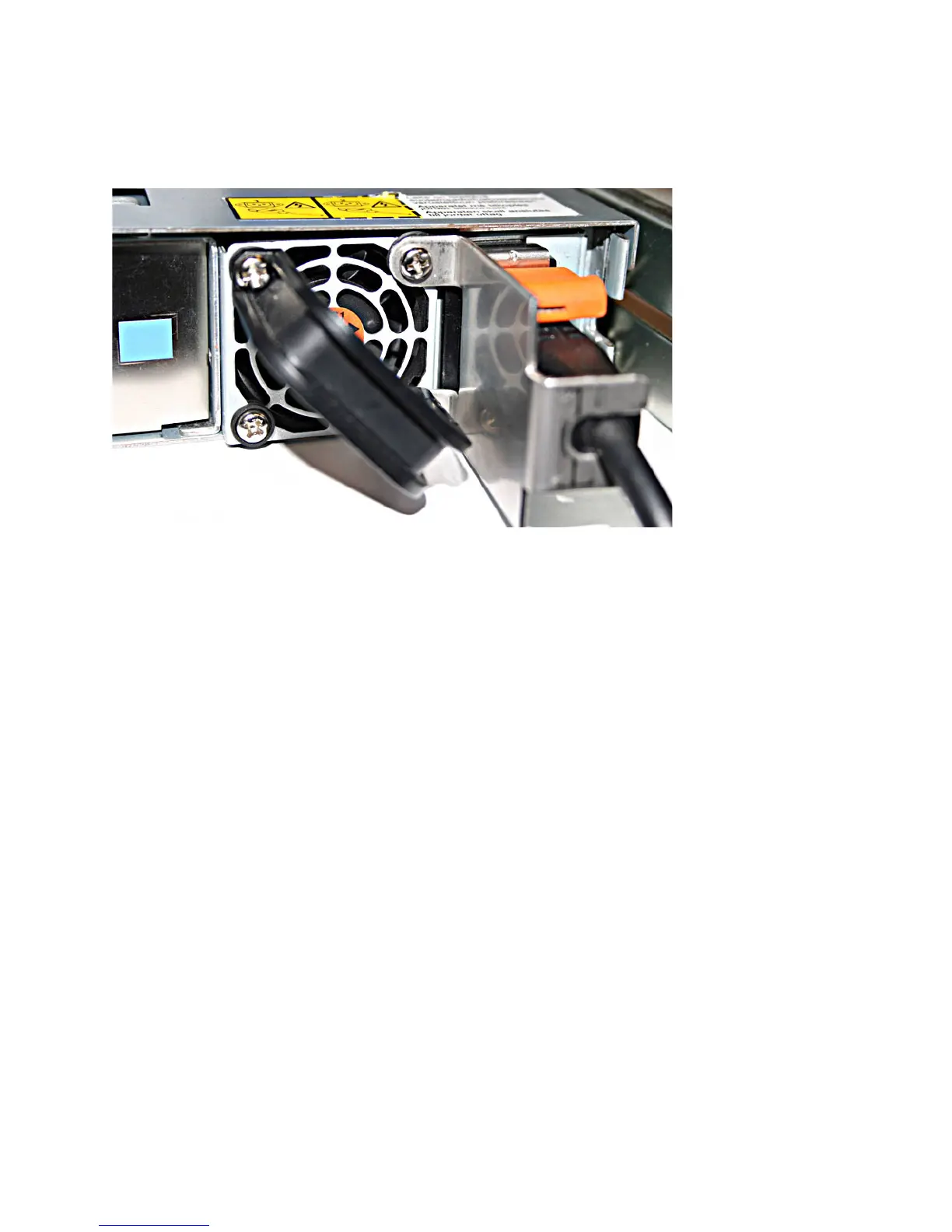

Figure 26. The SAN Volume Controller 2145-8G4 with the cable-retention bracket attached

Chapter 2. Removing and replacing parts 33
