3. Pull the loops of the rails toward each other and slide the drive into the node until the drive connects

to the backplate.

4. Release the loops of the drive tray.

6. Reconnect the power cords and the fibre-channel and Ethernet cables. Ensure that you replace the

fibre-channel and Ethernet cables in the same ports from which they were removed.

7. Turn on the node. When you turn on the node, use the node rescue procedure to install the SAN

Volume Controller software on the new disk. Then add the node back into the cluster. See

"Performing the node rescue" in the IBM System Storage SAN Volume Controller 2145 Troubleshooting

Guide.

Note: If you must replace the hard disk and the service controller at the same time, you cannot start

the node to perform node rescue. See “Replacing a disk drive and a service controller on the SAN

Volume Controller” on page 92.

Replacing the SAN Volume Controller 2145-8F4 or SAN Volume Controller

2145-8F2 SATA disk drive

This topic describes how to replace the SATA (serial advanced technology attachment) disk drive for the

SAN Volume Controller 2145-8F2 and the SAN Volume Controller 2145-8F4 nodes.

The SAN Volume Controller 2145-8F4 or SAN Volume Controller 2145-8F2 SATA disk drive can be

replaced after you remove the existing disk drive.

To replace the SAN Volume Controller 2145-8F4 or SAN Volume Controller 2145-8F2 disk drive, perform

the following steps:

1. Slide the disk drive into the bay until the rear of the drive snaps into place with the rear panel-mount

connector.

3. Place the node in the rack. See “Replacing the SAN Volume Controller in a rack” on page 48.

4. Reconnect the power cords and the fibre-channel and Ethernet cables. Ensure that you replace the

fibre-channel and Ethernet cables in the same ports from which they were removed.

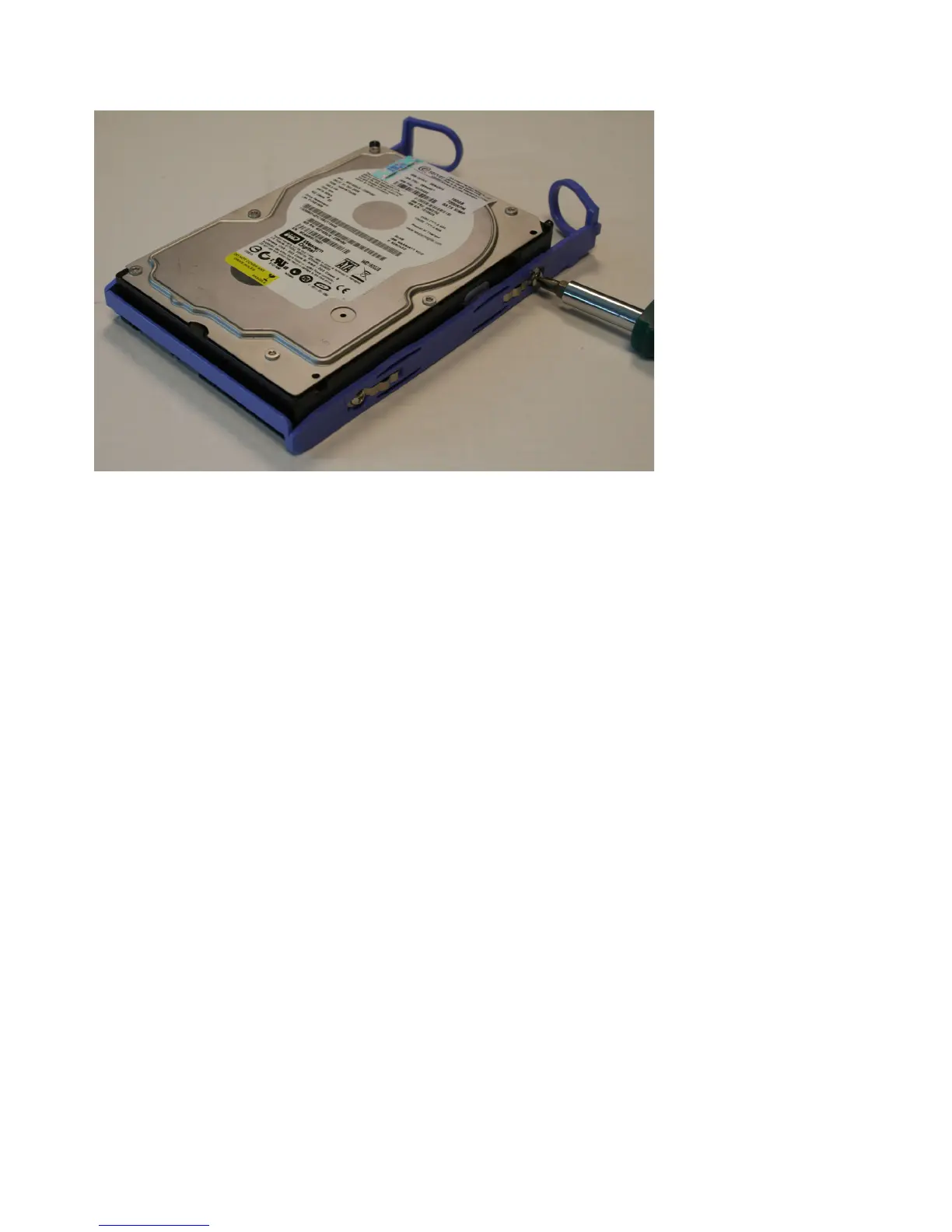

svc00315

Figure 112. Attaching the rails assembly to the SATA disk drive for the SAN Volume Controller 2145-8A4 and the SAN

Volume Controller 2145-8G4

110 IBM SAN Volume Controller Hardware Maintenance Guide
