19. Remove the six screws on the system board, as shown in Figure 278, that secure the system board to

the chassis.

20. Lift up the front edge of the system board slightly so that it disengages from the locator pin. Slide

the system board slightly toward the front of the node so that the I/O ports are free of the chassis.

21. Lift up the left side of the system board.

22. Lift up the rest of the system board and carefully remove it from the node, being careful not to

disturb any surrounding components.

svc00411

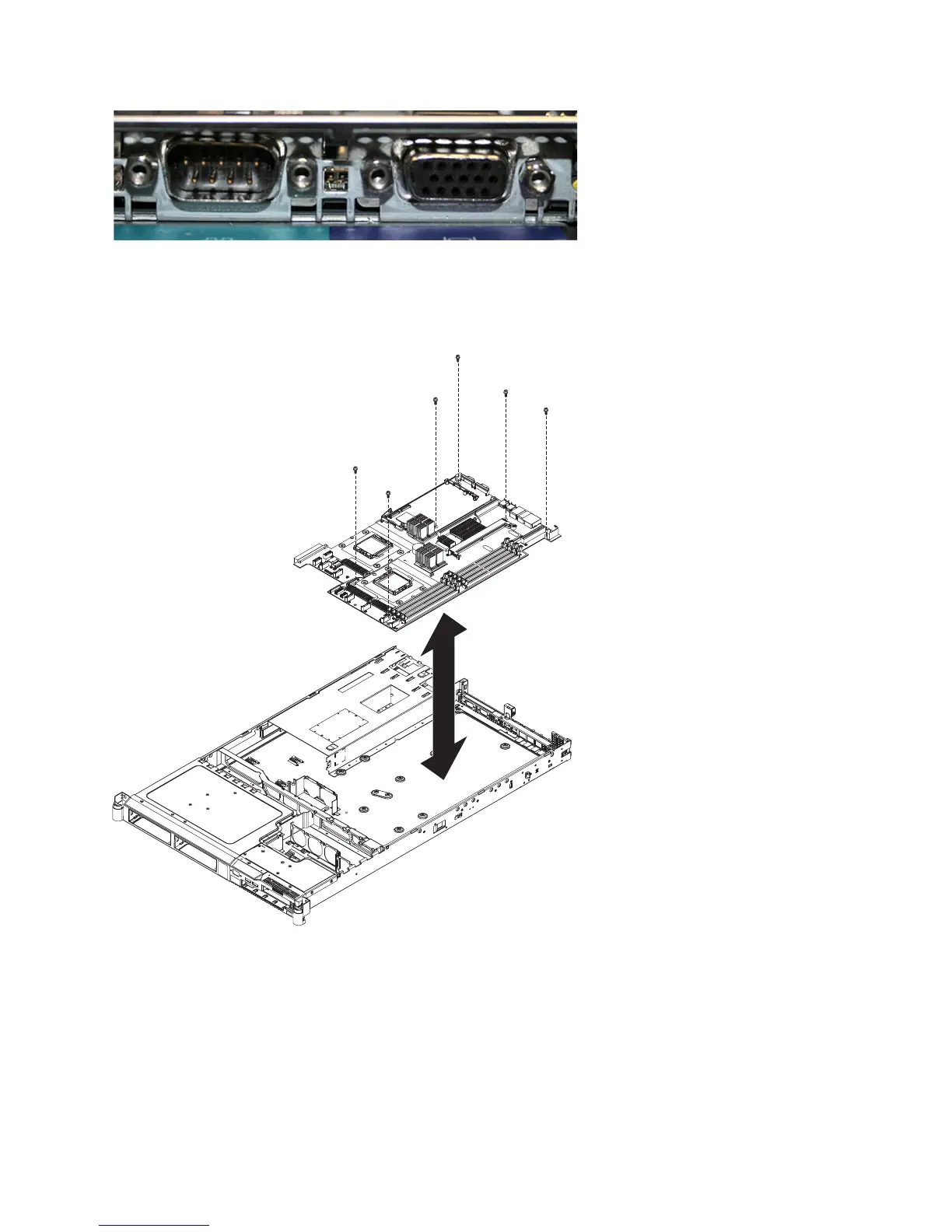

Figure 277. Serial and video ports on the SAN Volume Controller 2145-8G4

Figure 278. The placement of the screws that secure the SAN Volume Controller 2145-8G4 system board

Chapter 2. Removing and replacing parts 253
