To remove the SAN Volume Controller 2145-CF8 from the rack, complete these steps:
1. Follow the procedure in MAP 5350 in the IBM System Storage SAN Volume Controller 2145
Troubleshooting Guide to verify that the node data is mirrored and synchronized, and that there are no
dependent volumes before turning off the node..
2. Pull back the cable-management arm if you are working from the rear of the rack, or slide the node
out of the rack to the fully extended rail position if you are working from the front.
3. To make sure that you can replace all cables in the same ports from which they were removed, record
the position of all fibre-channel and Ethernet cables; then remove all cables from the back of the node.
4. Pull forward the two white catches (1 in Figure 37) on the side of the rails, and lift up the front of
the node very slightly.
5. Support the node from the front and the back and pull the node forward slightly and lift to remove
the node from the back of the rails (3).
Removing the SAN Volume Controller 2145-8A4 from a rack
Use these instructions when you are prompted to remove a SAN Volume Controller 2145-8A4 from a
rack.
If the SAN Volume Controller is not already turned off, see "Turning off the SAN Volume Controller
node" in the IBM System Storage SAN Volume Controller 2145 Troubleshooting Guide .
Attention: Do not touch the power control switches on adjacent SAN Volume Controller nodes when
you remove or install SAN Volume Controller nodes in a rack. Touching these switches on adjacent SAN
Volume Controller nodes might cause those devices to turn off and make customer data inaccessible.
Use the reference numbers in parentheses at the end of each notice, such as (C003) for example, to find
the matching translated notice in IBM Systems Safety Notices.
svc_bb1ka060

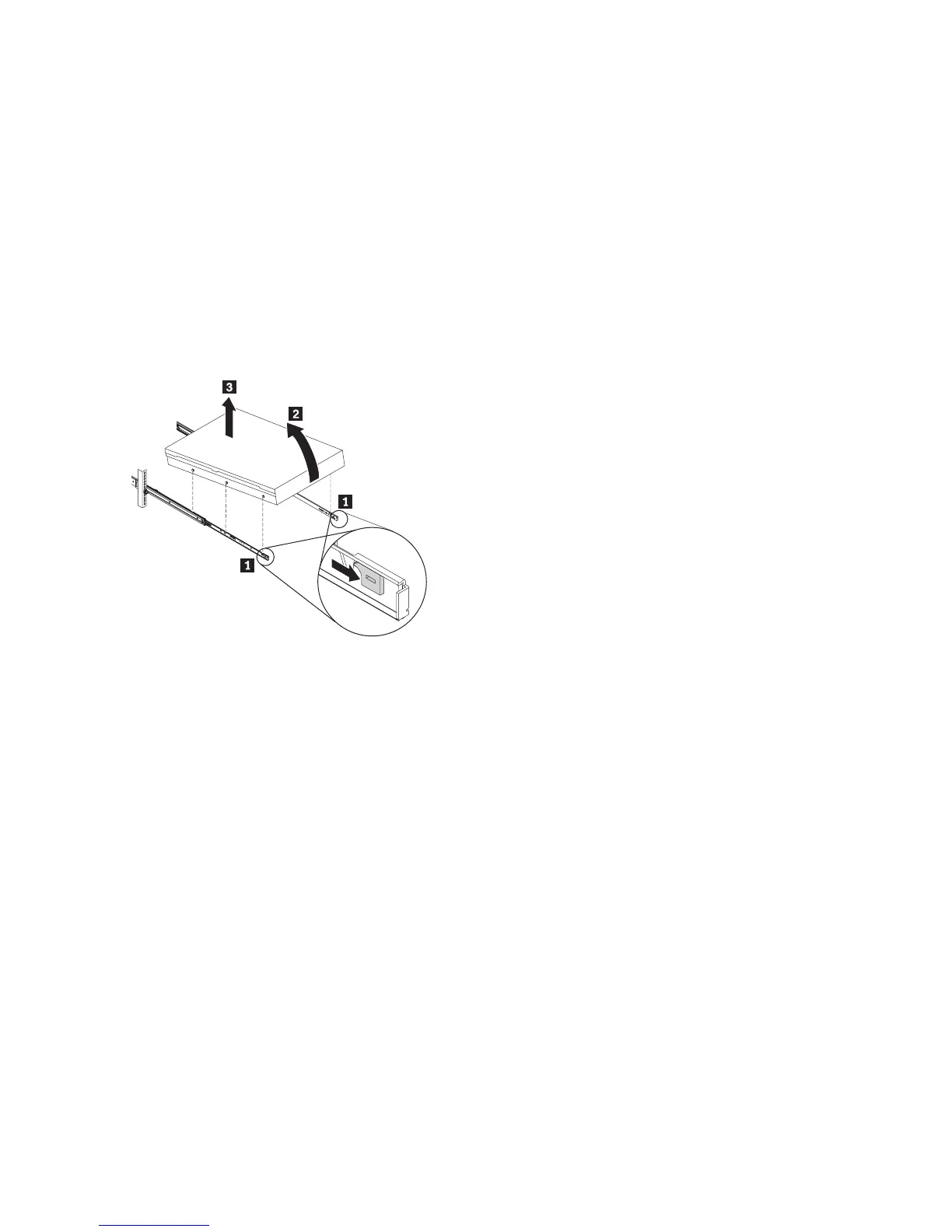

Figure 37. Removing the SAN Volume Controller 2145-CF8 from the rack
Chapter 2. Removing and replacing parts 43
