Table 19. Cable-management arm and associated parts descriptions and quantities
Reference Description Quantity
1 Slide rail (left) 1
2 Slide rail (right) 1
3 Large cable tie 1
4 Cable ties 5
5 M6 screws 4
6 10-32 screws 2
7 Cable-management support arm 1
8 Cable-management arm mounting bracket 1
9 Cable-management arm stop bracket 1
10 Cable-management arm assembly 1
The cable-management arm is installed to pivot from the left side of the SAN Volume Controller
2145-CF8 rack.
To remove the cable-management arm, perform the following steps:
1. Remove all power from the node, as described in MAP 5350 in the IBM System Storage SAN Volume
Controller 2145 Troubleshooting Guide.
2. Disconnect all cables from the back of the SAN Volume Controller 2145-CF8 node.
3. Slide the SAN Volume Controller 2145-CF8 away from the back of the rack.
a. Remove any optional M6 screws, as shown by 1 in Figure 9 on page 22, from the front of the
node.
b. To release the node from the rack, press the orange release latches 2 and slide the SAN Volume
Controller 2145-CF8 node forward until it latches in the service position.
5
6
7
8
9
10
1
2
3
4
svc_bb1ka200

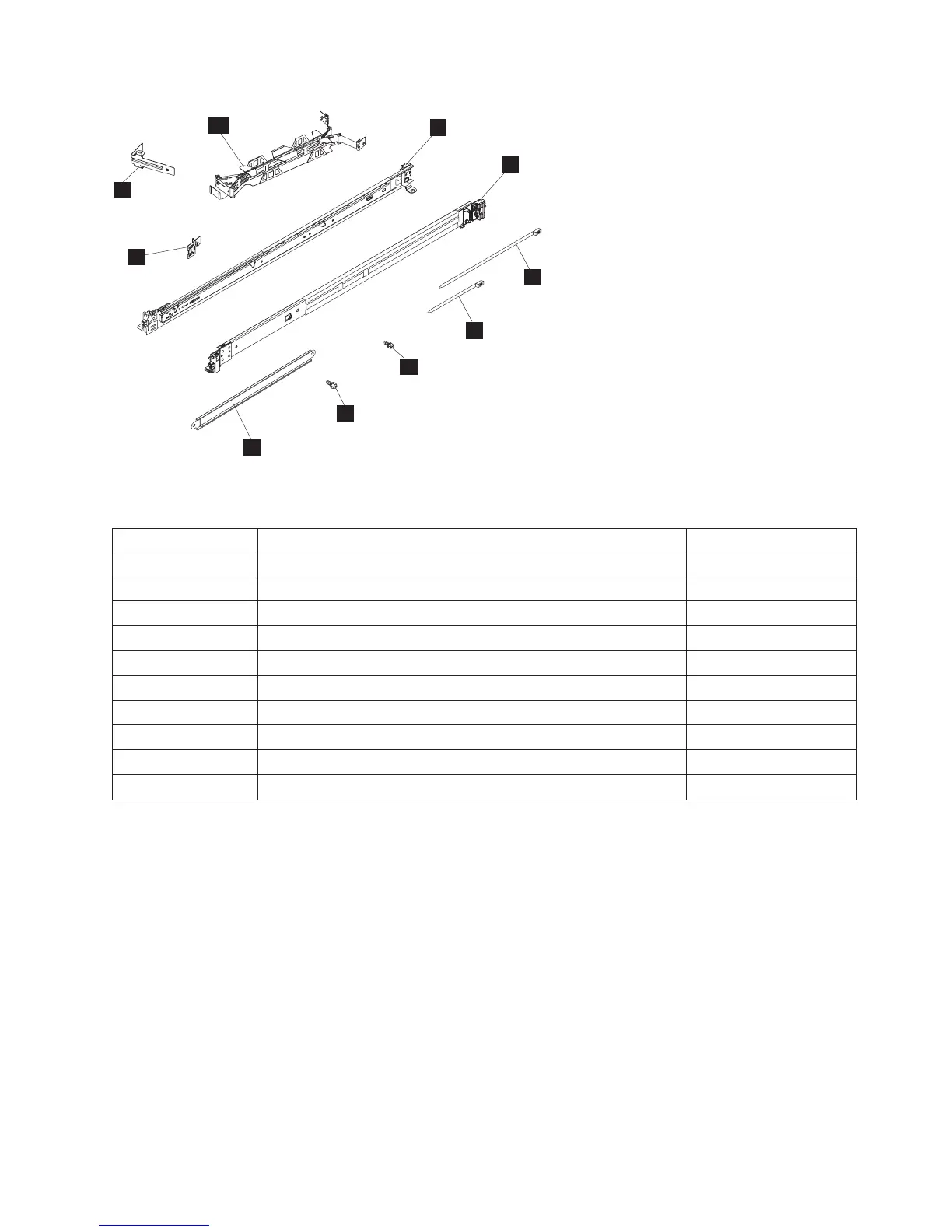

Figure 8. SAN Volume Controller 2145-CF8 cable-management arm, support rails, and associated parts
Chapter 2. Removing and replacing parts 21
