12. Turn on the node.

Replacing the SAN Volume Controller 2145-8A4 fans

This topic describes how to replace the SAN Volume Controller 2145-8A4 fans.

Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a

static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xix.

Perform the following steps to replace a failed fan:

1. Position the replacement fan, shown in Figure 241 on page 218, so that the airflow arrow on the side

of the fan points toward the rear of the node.

Note: Correct airflow is from the front to the rear of the node.

svc_bb1ka055

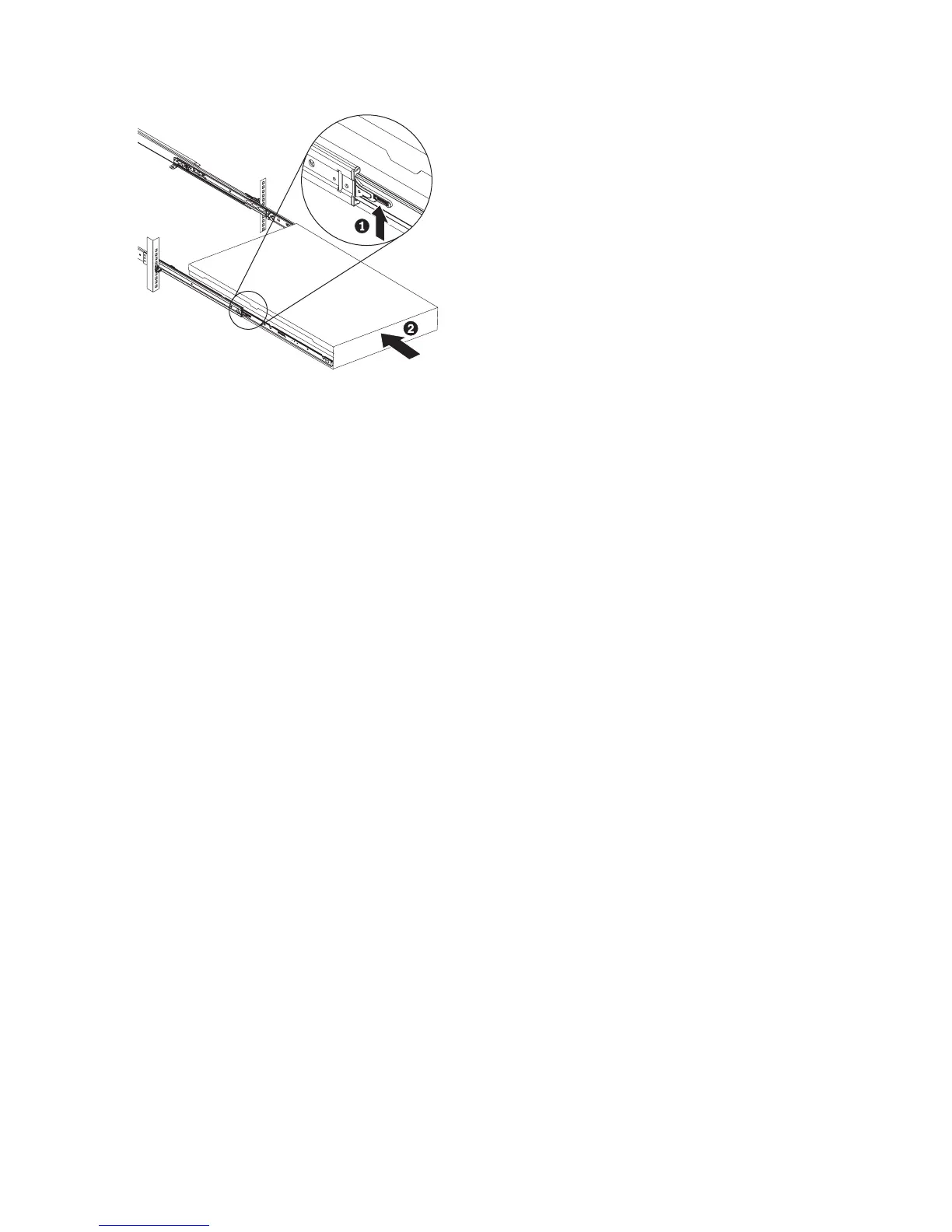

Figure 240. Raising the SAN Volume Controller 2145-CF8 locking levers of the slide rails of the rack

Chapter 2. Removing and replacing parts 217
