To attach the bracket to the rack rail, perform the following steps:
1. With the node powered off and the power cable removed, loosen and remove the two screws
1
on
the right side of the rear plate that covers the power supply fan unit, as shown in Figure 34.
2. Rotate the power supply handle out of the way.
3. Insert the power cable.
4. Position the cable-retention bracket so that the power cable runs through the slot in the bracket. Align
the screw holes in the bracket with the holes that are in the rear plate where you removed the two
screws.
5. Replace the top screw.
6. Move the power supply handle back into place over the retention bracket, and replace the lower
screw so that it holds the power supply handle, cable-retention bracket, and power supply rear plate
in place.
Replacing the cable-retention bracket - option B:
Replace the SAN Volume Controller 2145-8G4 cable retention bracket after you replace the node in the
rack.
Install the SAN Volume Controller 2145-8G4 cable retention bracket after you install the node in the rack.
To attach the bracket to the rack rail, perform the following steps:
1. Install the power cable into the power supply.
2. At the back of the cabinet, remove the securing bolt from the node side rail next to the power supply,
as shown in Figure 35 on page 40.
svc00364
1

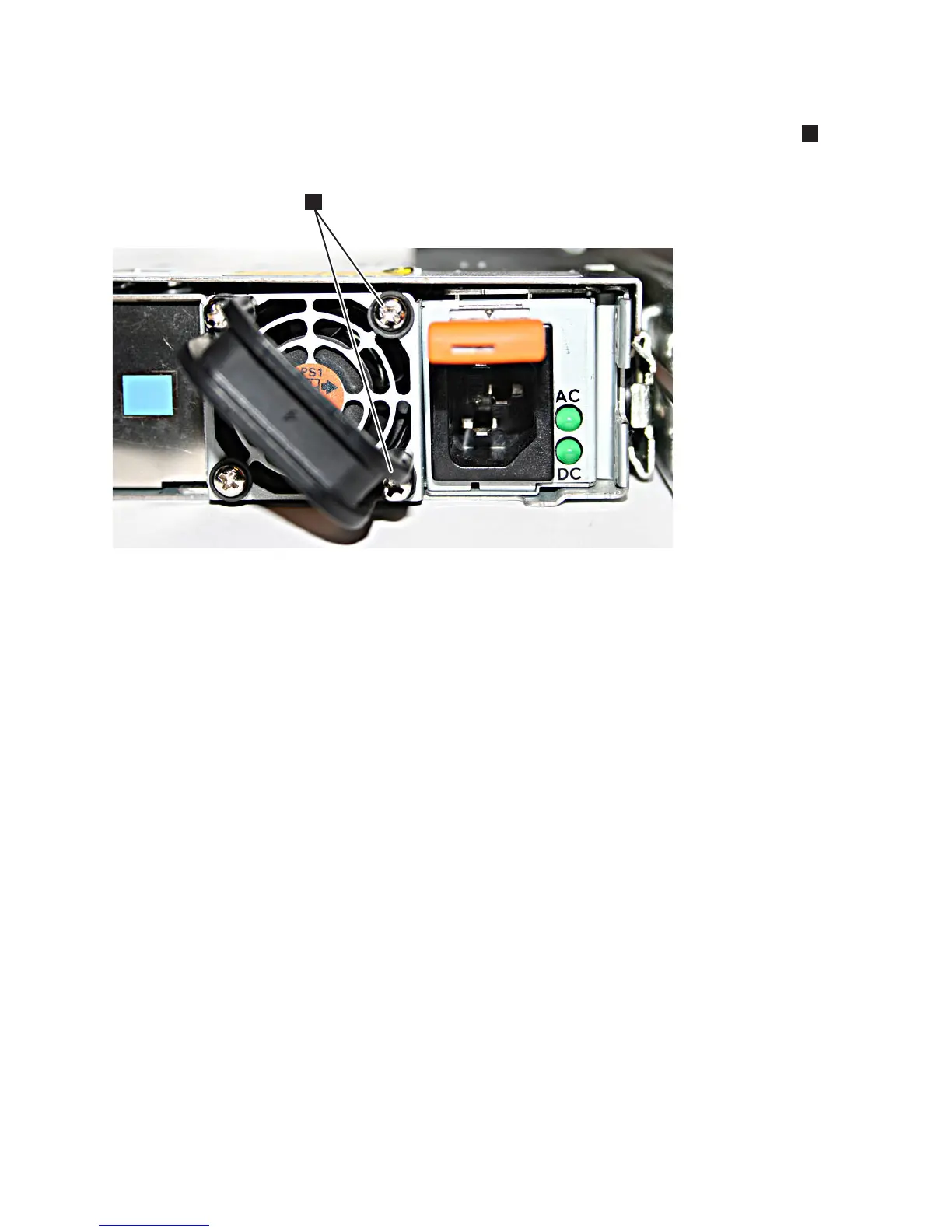

Figure 34. The SAN Volume Controller 2145-8G4 before you attach the cable-retention bracket
Chapter 2. Removing and replacing parts 39
