Table 12. FRUs that are not referenced by SAN Volume Controller 2145-8G4 service procedures (continued)
Part number Quantity Description
39Y9507 1 Media bezel assembly
32R2823 1 3.5 in. SATA cartridge assembly
SAN Volume Controller 2145-8F4 parts
You might need to replace a SAN Volume Controller 2145-8F4 field replaceable unit (FRU).
Figure 4 shows how the different parts of the SAN Volume Controller 2145-8F4 are assembled.
Table 13 provides the part numbers and a brief description of the frame assembly parts that are labeled in
Figure 4. The frame assembly comprises all the parts except the service controller and fibre-channel cards.
These parts are listed in Table 14 on page 13.
Table 13. SAN Volume Controller 2145-8F4 frame assembly
Assembly index Part number Units Description
31P0705 1 Frame assembly
5
6
7
8
9
10
11
12
13
14
1
2
3
4
svc00173

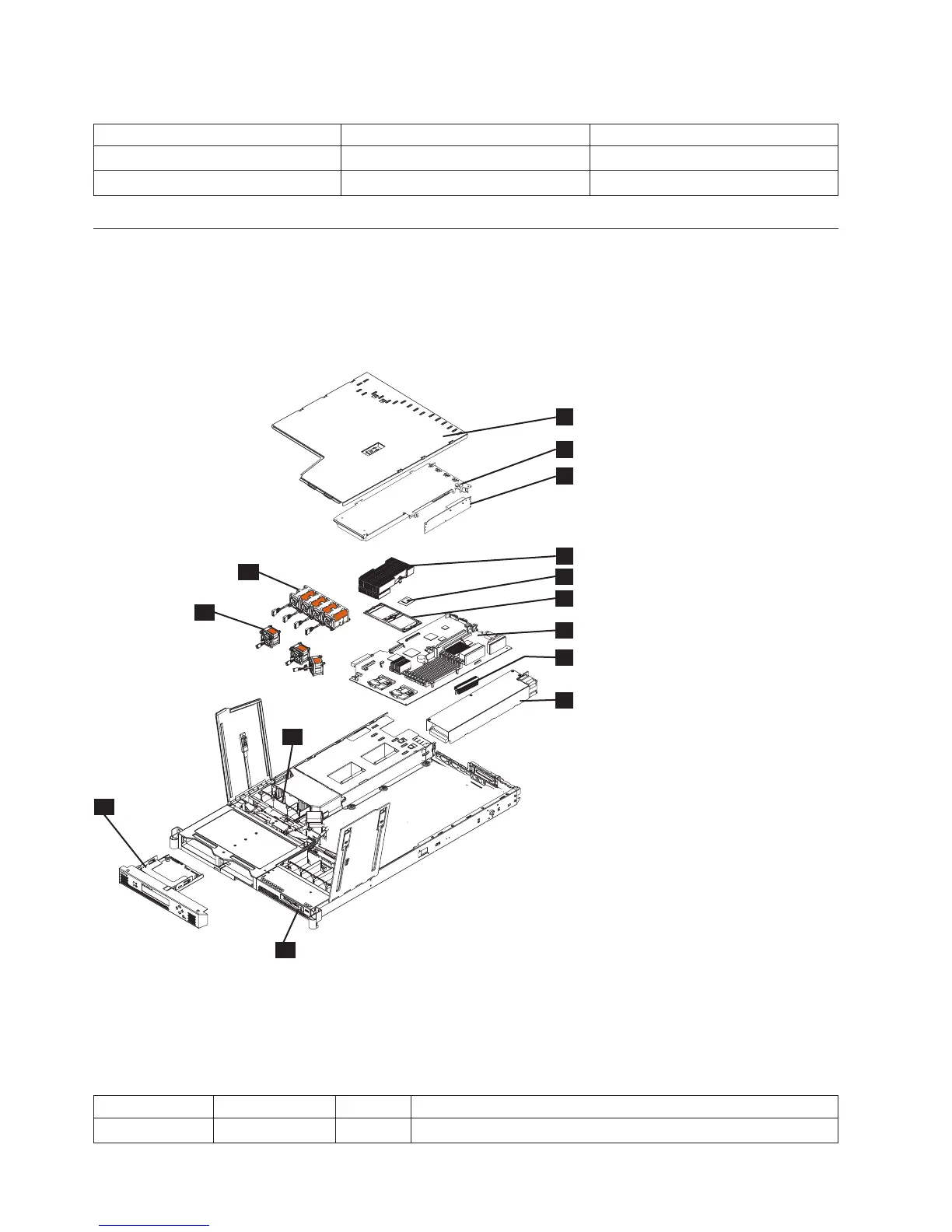

Figure 4. Exploded view of the SAN Volume Controller 2145-8F4 node
12 IBM SAN Volume Controller Hardware Maintenance Guide
