8. Repeat steps 6 on page 282 and 7 on page 282 for the other rail.

9. Tighten the assembly wing nuts on both rail assemblies.

Removing the power cable from the 2145 UPS-1U

You can remove the power cable from the 2145 UPS-1U if you are having problems with the power

supply and suspect that the power cable is defective.

Perform the following steps to remove the power cable:

1. Remove the power from each SAN Volume Controller node. See MAP 5350 in the IBM System Storage

SAN Volume Controller 2145 Troubleshooting Guide for information about removing the power cable

from the SAN Volume Controller.

2. Press and hold the on/off button

until the power light

is extinguished (approximately five

seconds). On some versions of the 2145 UPS-1U, you need a pointed device, such as a screwdriver, to

press the on/off button. The 2145 UPS-1U enters standby mode, with all indicators off. Figure 319 on

page 284 illustrates the front and rear views of the 2145 UPS-1U.

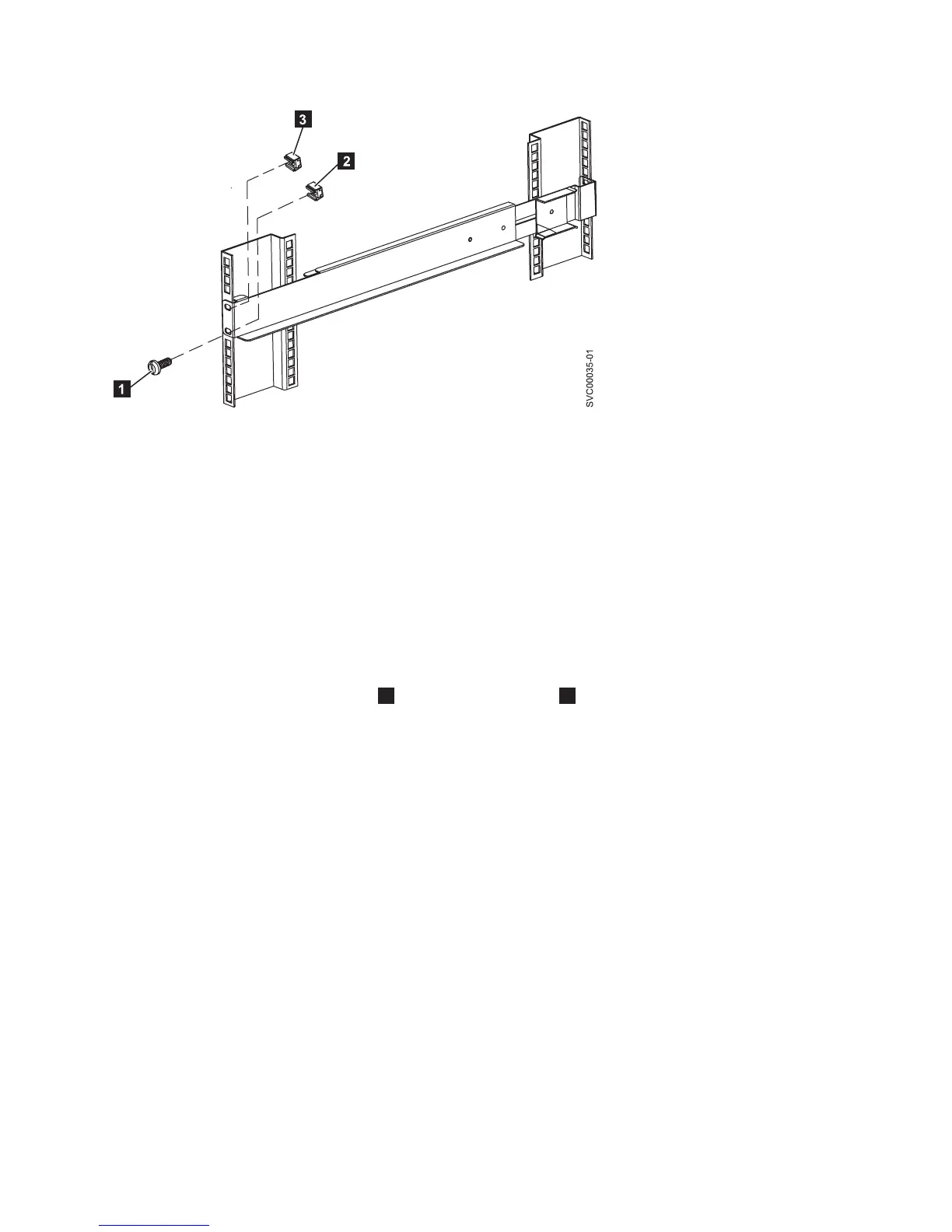

Figure 318. Securing the front rail on the 2145 UPS-1U

Chapter 2. Removing and replacing parts 283
