v If your cable-retention bracket looks like the following, go to “Replacing the cable-retention bracket -

option B” on page 39.

Replacing the cable-retention bracket - option A:

The cable-retention bracket attaches to the back of the SAN Volume Controller 2145-8G4 node. It is

connected with the screws that already hold the rear plate of the power supply in place.

Replace the SAN Volume Controller 2145-8G4 cable retention bracket after you replace the node in the

rack.

svc00363

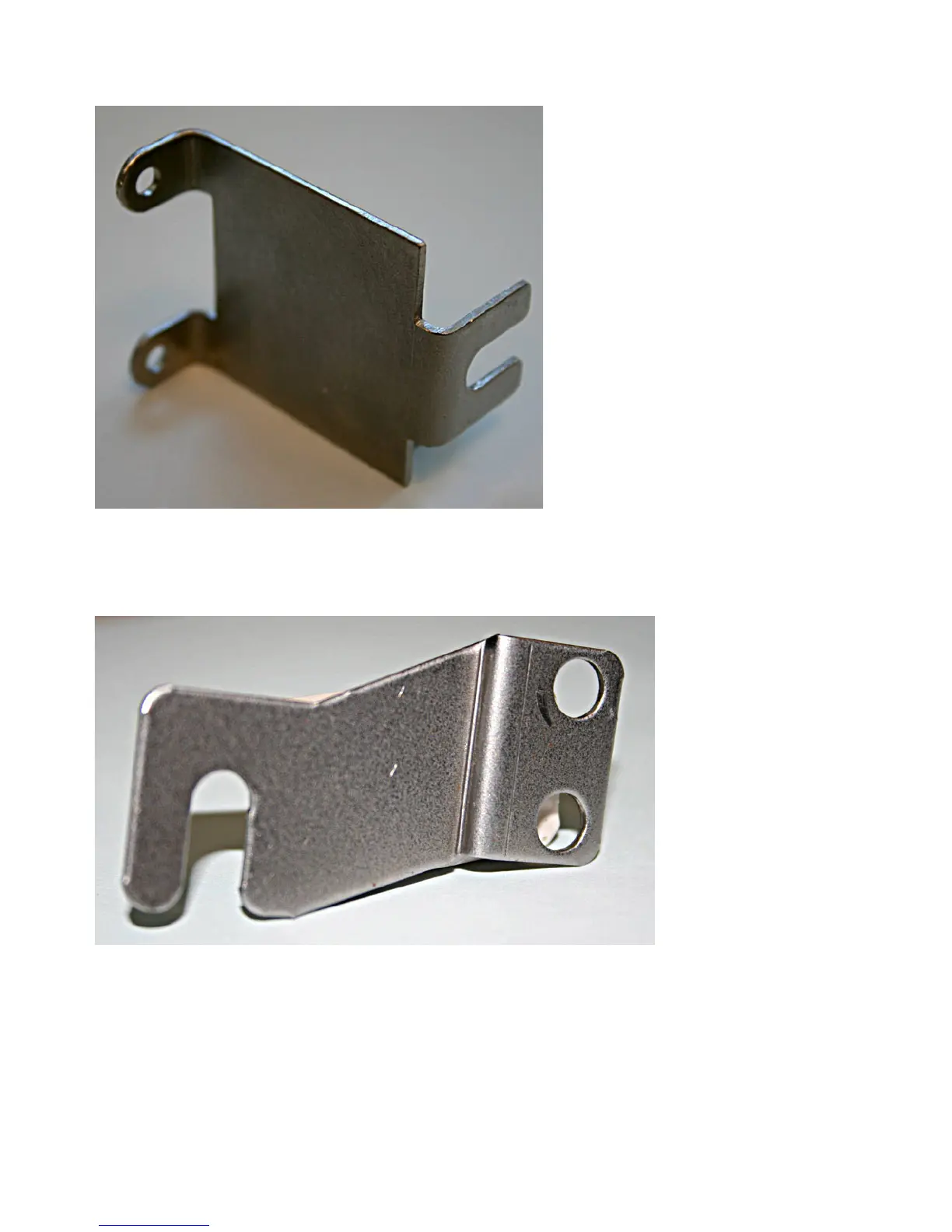

Figure 32. SAN Volume Controller 2145-8G4 cable retention bracket - type A

svc00362

Figure 33. SAN Volume Controller 2145-8G4 cable retention bracket - type B

38 IBM SAN Volume Controller Hardware Maintenance Guide
