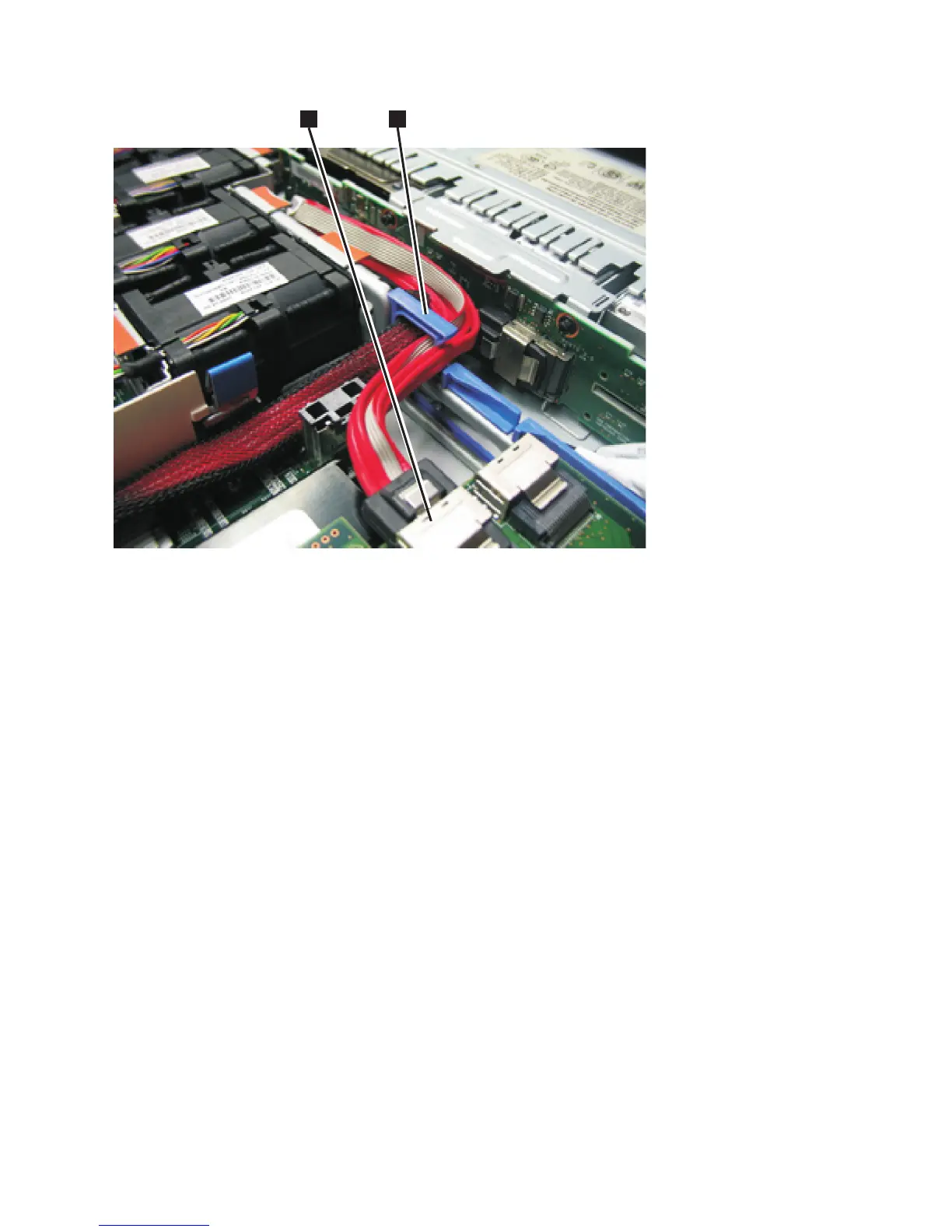

1 Boot-disk SAS cable that is plugged into the disk-controller-and-USB-riser-card assembly

2 Blue bulkhead clip with the high-speed SAS-adapter cable and the boot-disk SAS cable

Remove the boot-disk SAS cable from the blue bulkhead clip if necessary, before removing the

high-speed SAS adapter cable from the clip.

11. Disconnect the high-speed SAS cable from the SAS connector in the center of the back of the disk

backplane, as shown in Figure 194 on page 178.

Figure 193. Boot-disk SAS cable routed through the blue bulkhead clip and connected to the SAS disk controller in the

SAN Volume Controller 2145-CF8

Chapter 2. Removing and replacing parts 177
