5. Install the other rail in the same manner.
The installation of the support rails for the SAN Volume Controller 2145-CF8 is complete.
Installing the support rails for the SAN Volume Controller 2145-8A4
You must install the support rails that hold the SAN Volume Controller 2145-8A4 node.

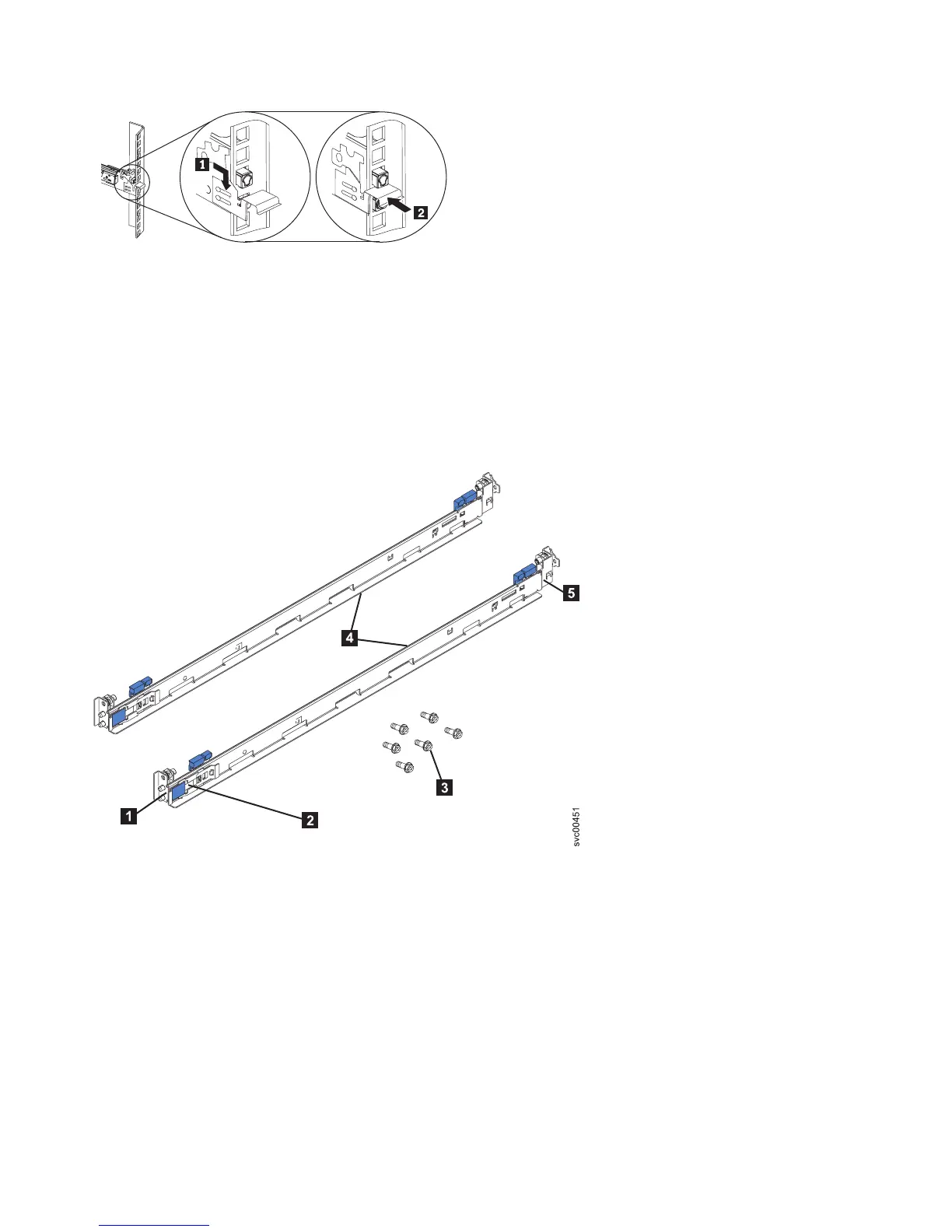

Figure 55 shows the items that you need to install the SAN Volume Controller 2145-8A4 node in a rack.
1 Rear of rail
2 Shipping bracket
3 M6 screws (6)
4 Rack mounting rails
5 Front of rail
Notes:
v With some types of racks, you might find it helpful to remove the rack doors and side panels to
provide easier access during installation.
v The slide rails are marked (RIGHT / FRONT and LEFT / FRONT) for proper placement on the rack
flanges.
svc_bb1ka015
Figure 54. Installing the front of a SAN Volume Controller 2145-CF8 slide rail in the front of the rack
Figure 55. SAN Volume Controller 2145-8A4 support-rails installation kit
60 IBM SAN Volume Controller Hardware Maintenance Guide
