1 Side release latch

2 Rail lock pin

3 Fan door A

4 Fan door B

5 Cover release latch

2. Open fan door A 3 and fan door B 4. To open fan door A, slide the slide latch to the left and lift

up the door panel. To open fan door B, slide the two slide latches to the right and lift up the door

panel.

3. Perform the following steps to remove the SAN Volume Controller 2145-8F4 or SAN Volume

Controller 2145-8F2 cover:

a. Lift up the cover release latch 5 and slide the cover to the rear of the node.

b. Make sure that the SAN Volume Controller 2145-8F4 or SAN Volume Controller 2145-8F2 cover

slides away from the insets that are on the front, rear, and sides of the SAN Volume Controller

2145-8F4 or SAN Volume Controller 2145-8F2 cover.

c. Lift the cover off the node and set the cover aside.

Replacing the top cover

You must replace the top cover on the SAN Volume Controller node after maintenance is completed.

Replacing the SAN Volume Controller 2145-CF8 top cover

This topic describes how to replace the SAN Volume Controller 2145-CF8 top cover.

Important: Before you slide the cover forward, make sure that all the tabs on both the front, rear, and

side of the cover engage the chassis correctly. If all the tabs do not engage the chassis correctly, it will be

very difficult to remove the cover later.

To replace the top cover on the SAN Volume Controller 2145-CF8, complete the following steps:

1. If you removed the node from the rack, replace the node in the rack, as described in “Replacing the

SAN Volume Controller in a rack” on page 48.

2. Make sure that all cables, adapters, and other components are installed and seated correctly and that

you have not left loose tools or parts inside the node. Make sure that all internal cables are correctly

routed. If you disconnected the fibre-channel and Ethernet cables, make sure that each cable is

reconnected to the same port from which it was removed.

svc00086

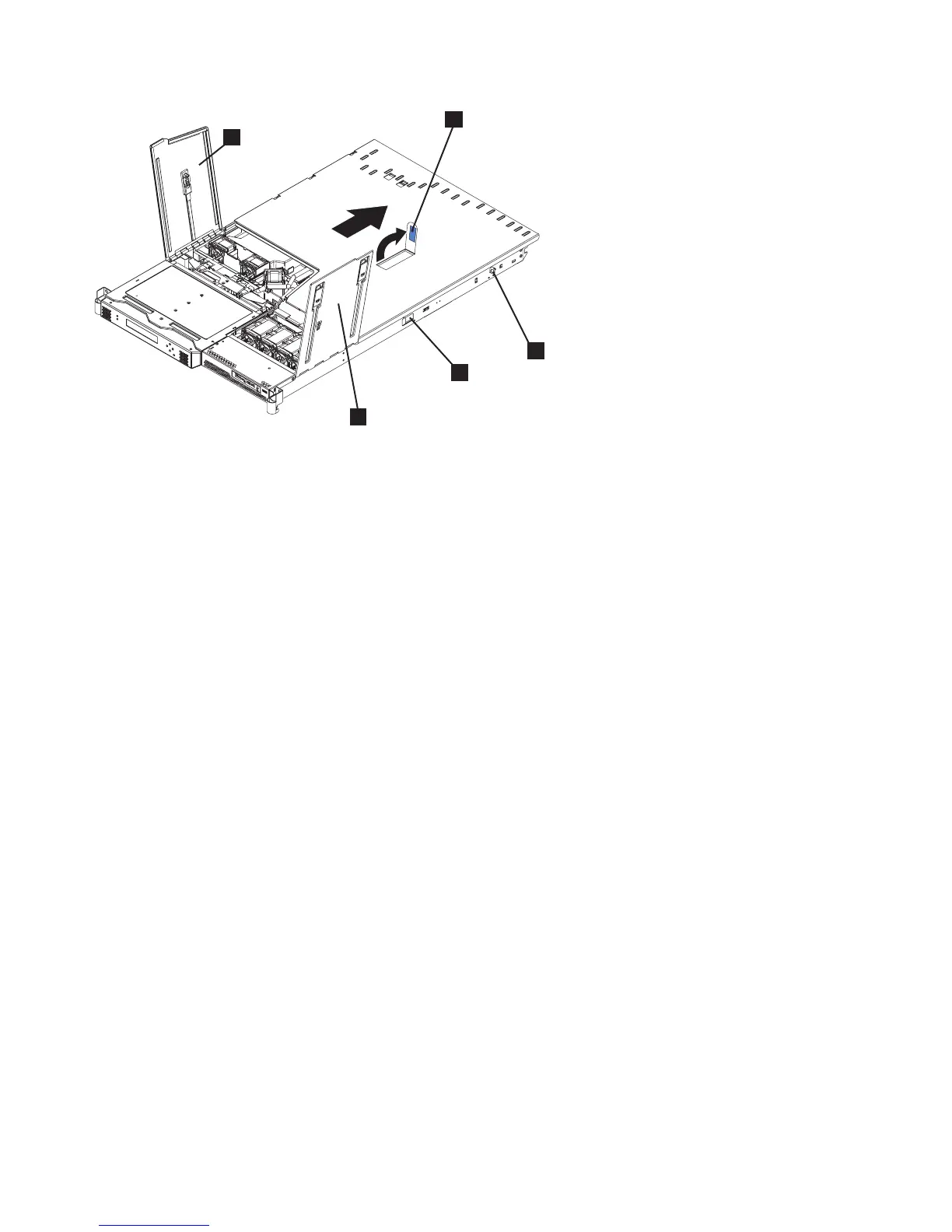

Figure 71. SAN Volume Controller 2145-8F2 or SAN Volume Controller 2145-8F4 with fan doors open

72 IBM SAN Volume Controller Hardware Maintenance Guide
