7.
8. Remove the high-speed SAS adapter from the slot 2 riser-card connector at the rear of the system
board, as described in “Removing the SAN Volume Controller 2145-CF8 high-speed SAS adapter
assembly” on page 172.

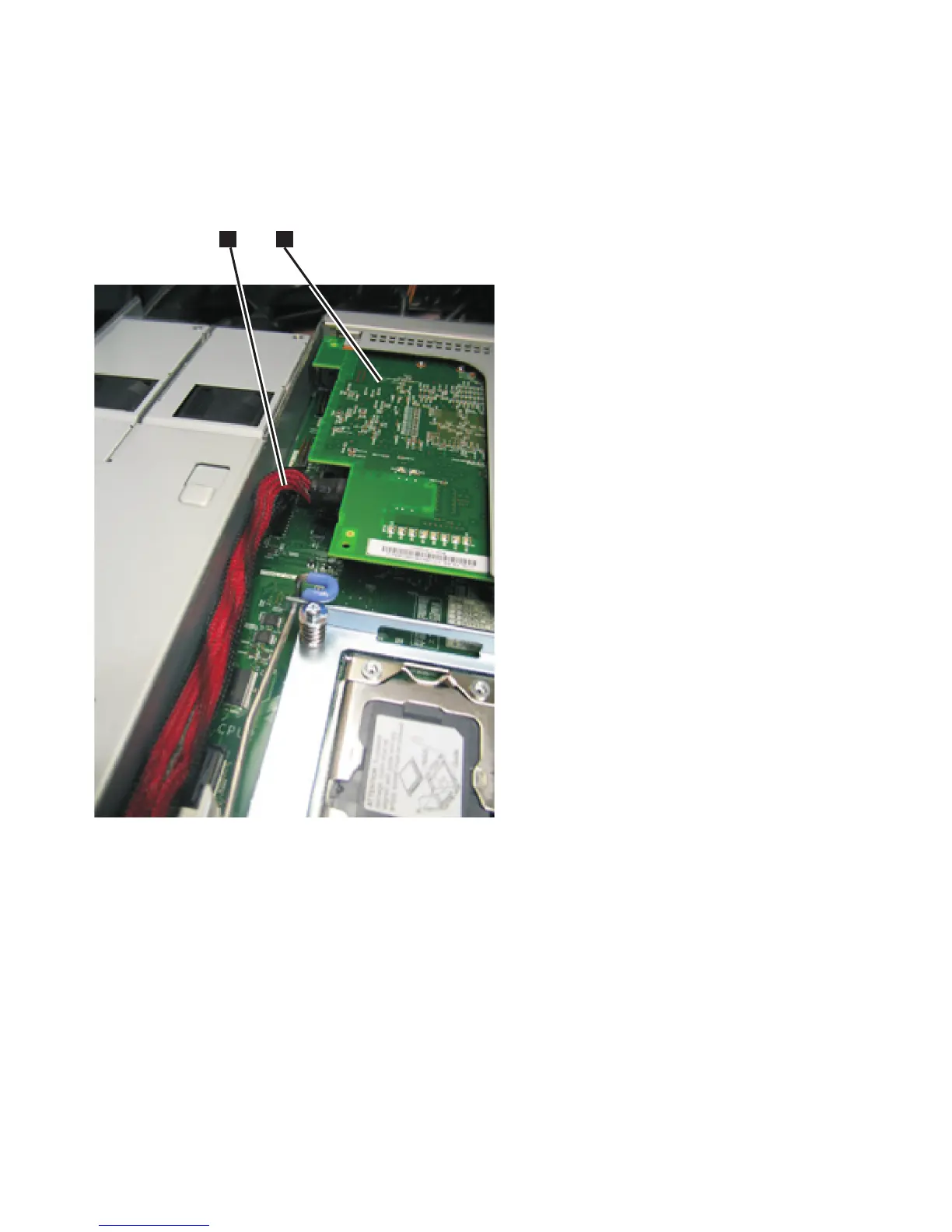

The high-speed SAS cable is shown in Figure 192.
1 High-speed SAS cable plugged into the high-speed SAS adapter assembly
2 High-speed SAS adapter assembly
9. Disconnect the high-speed SAS cable from the high-speed SAS adapter.
10. Remove the cable from the blue bulkhead clip behind the disk backplane, as shown in Figure 193 on
page 177.
1
2
Figure 192. High-speed SAS adapter assembly and high-speed SAS cable in the SAN Volume Controller 2145-CF8
176 IBM SAN Volume Controller Hardware Maintenance Guide
