6. Use a small screwdriver to push in the retention springs (
1
in Figure 215) on the sides of the
operator-information panel assembly.
1
Retention springs
2
Operator-information panel assembly cover
3
Cables
7. Slide the assembly forward and out of the node.
8. Push out on the two sides of the assembly cover to flare it out.
9. Rotate the assembly cover (
2
in Figure 215) up and off of the operator-information panel assembly.
10. Unplug the two cables from the rear of the assembly (
3
in Figure 215).
Replacing the operator-information panel assembly
You might be prompted to replace the SAN Volume Controller operator-information panel assembly.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xix.
1
svc00108
2

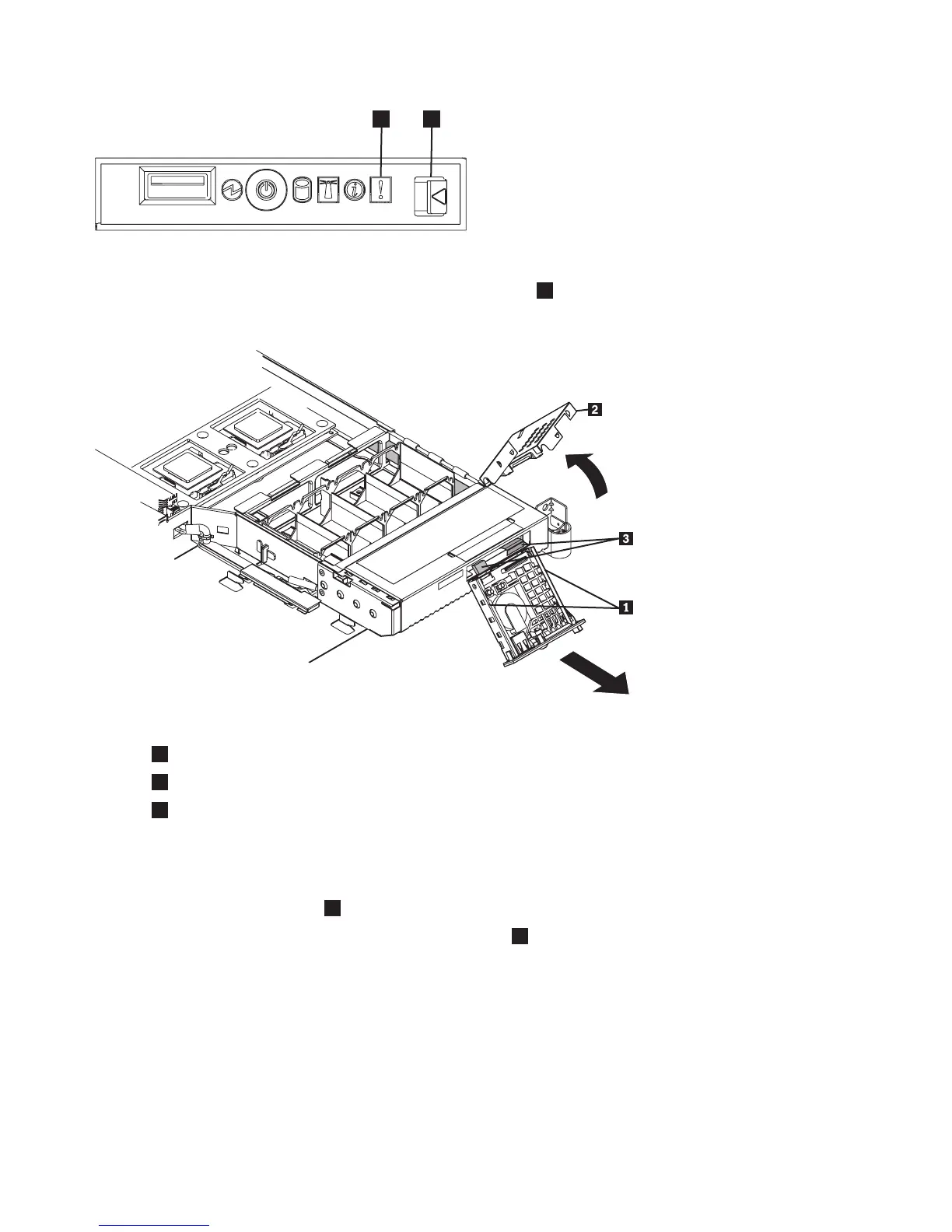

Figure 214. SAN Volume Controller 2145-8F4 operator-information panel
svc00118
Figure 215. SAN Volume Controller 2145-8F2 with exposed operator-information panel
196 IBM SAN Volume Controller Hardware Maintenance Guide
