place behind the chassis back plate.

6. Slide the bracket to the left until the side lip of the retention bracket goes behind the screw. Tighten

the screw.

Replacing the SAN Volume Controller 2145-8G4 cable retention bracket

The SAN Volume Controller 2145-8G4 uses one of two different cable-retention brackets. Depending on

which bracket you have, use the appropriate instructions to remove and replace the cable-retention

bracket.

v If your cable-retention bracket looks like the following, go to “Replacing the cable-retention bracket -

option A” on page 38.

svc00477

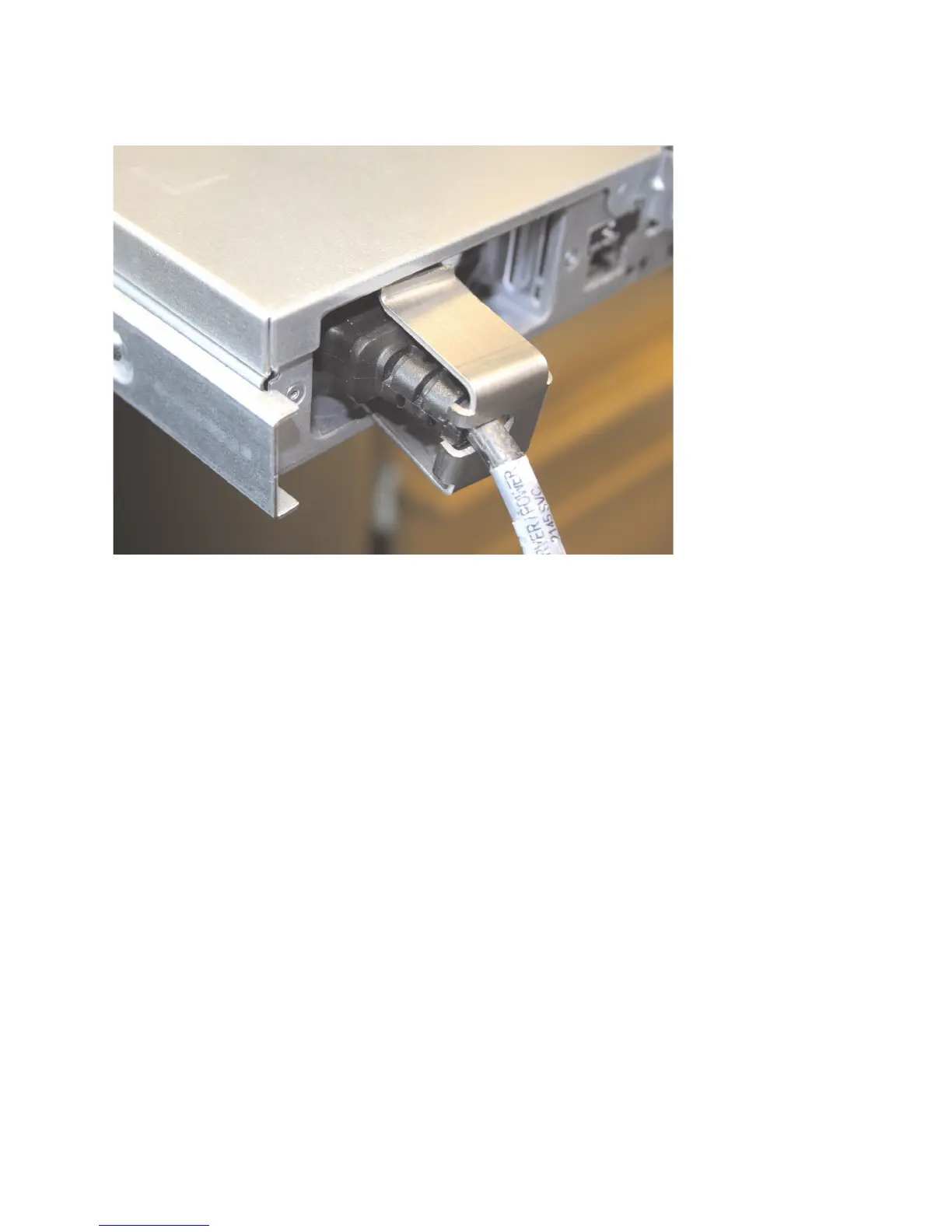

Figure 31. Installing the SAN Volume Controller 2145-8A4 cable retention bracket

Chapter 2. Removing and replacing parts 37
