Each cable-retention bracket attaches to the back of the SAN Volume Controller 2145-CF8 node. The
brackets connect without screws.
To replace each cable-retention bracket, perform these steps:
1. If you removed the node from the rack, replace the node in the rack, as described in “Replacing the
SAN Volume Controller in a rack” on page 48.
2. If you removed any fibre-channel or Ethernet cables, use the labels you placed on each cable to
replace all fibre-channel and Ethernet cables in the same ports from which they were removed.
3. Loosely install the cable-retention bracket on a power cord by slipping the power cord into the notch
on the rear of the bracket.
4. Align the cable-retention bracket on the power cord so that the bracket is to the left of the cord, as
shown by 2 in Figure 28.
5. Align the power cord with the power connector on the power supply and the bracket with the
power-supply handle.
6. Push the power cord into the power connector on the power supply.
7. Carefully push the bracket against the power-supply handle to force the spring clip (1) over the
leading edge of the handle.
8. Lift the locking levers (1 in Figure 29 on page 36) on the slide rails and push the server 2 all the
way into the rack until it clicks into place.
1
2

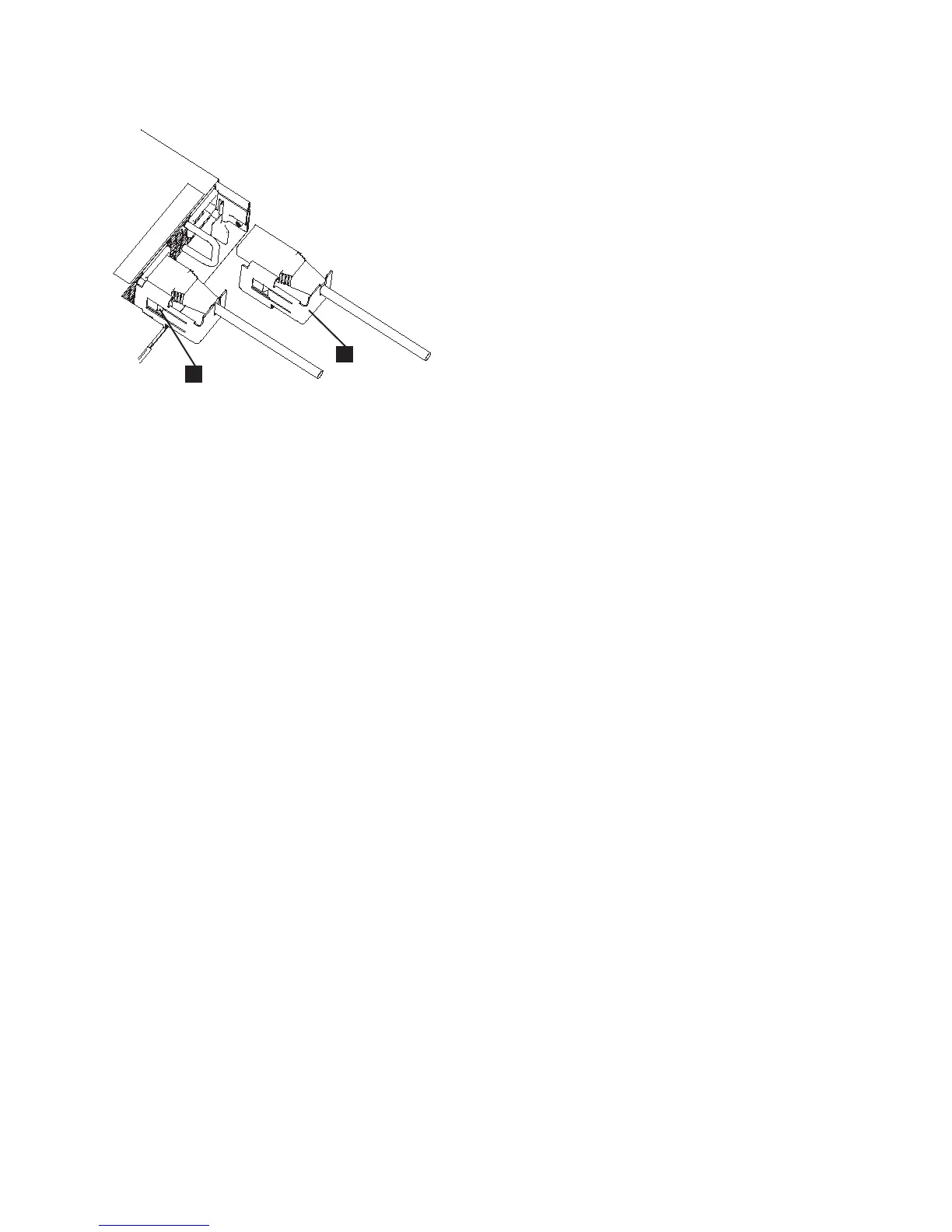

Figure 28. SAN Volume Controller 2145-CF8 cable-retention brackets
Chapter 2. Removing and replacing parts 35
