4. Make sure that the heat-exchanger assembly release latch is fully opened.

5. With the heat-exchanger assembly at an angle, carefully align the heat-exchanger assembly with the

microprocessor and the heat exchanger retention module (socket) on the system board. Make sure

that the alignment pins

, shown in Figure 258, protrude through the alignment hole (the opening

in the side of the heat-exchanger bracket) and that the flange of the heat sink rests under the lip of

the heat-exchanger socket.

svc00491

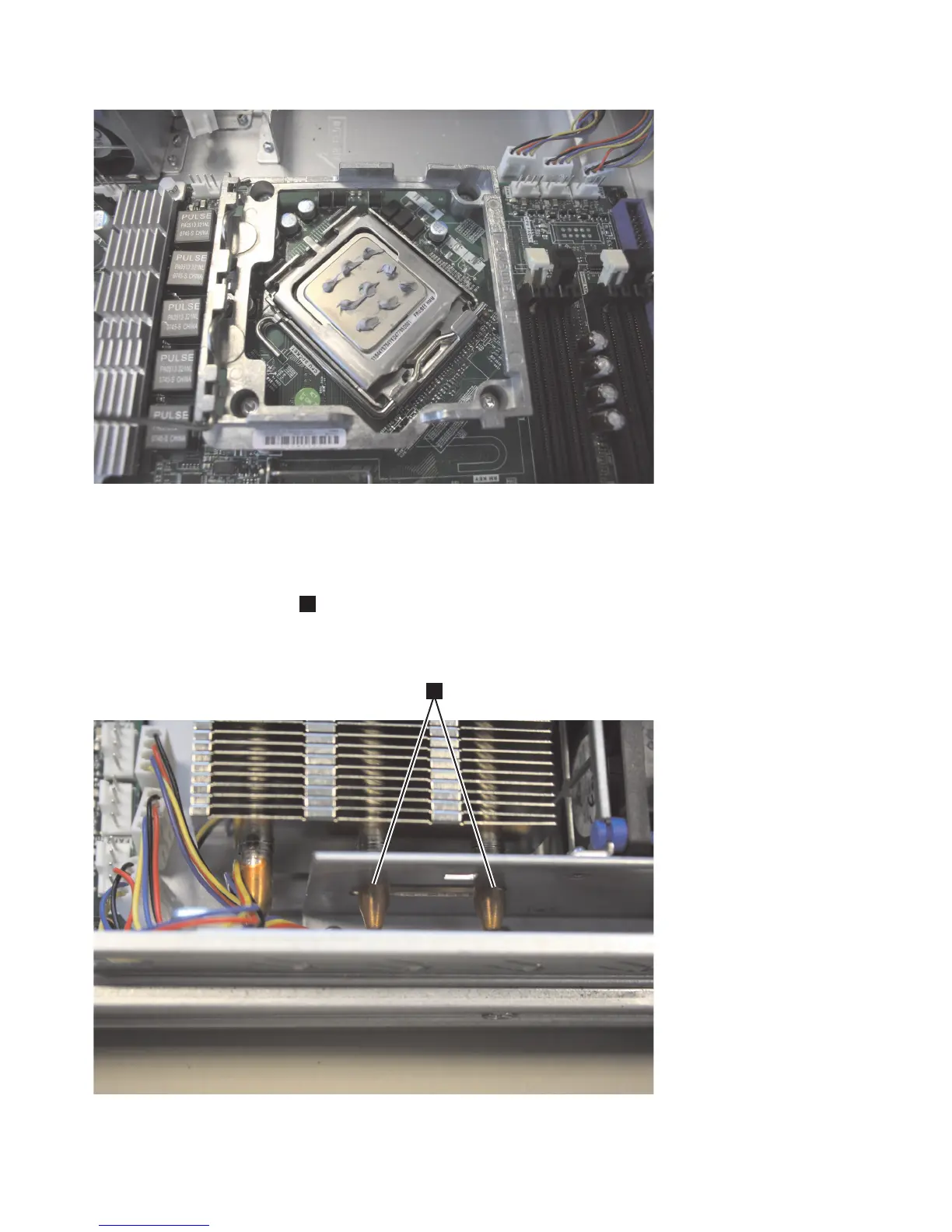

Figure 257. Complete set of nine thermal grease dots on the SAN Volume Controller 2145-8A4 microprocessor

svc00487

Figure 258. Alignment pins on the SAN Volume Controller 2145-8A4 heat-exchanger assembly

234 IBM SAN Volume Controller Hardware Maintenance Guide
