9. Disengage the power cable, which terminates in connector P5, from the retention-clip

, which is

shown in Figure 153.

10. Remove the screw

, shown in Figure 154 on page 145, that holds the power supply to the rear of

the chassis.

svc00483

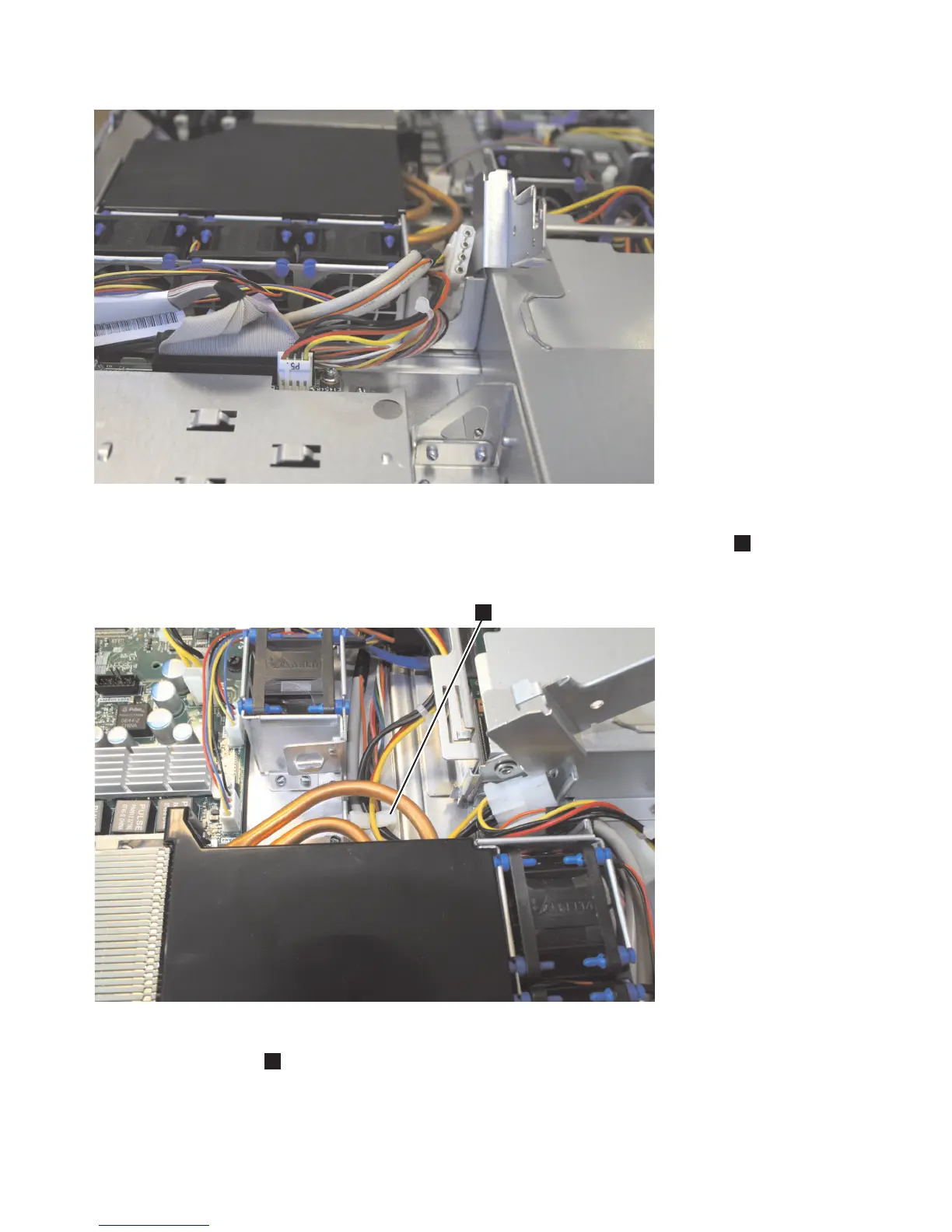

Figure 152. Power P5 connector on the SAN Volume Controller 2145-8A4 power supply

svc00486

Figure 153. The retention clip for the SAN Volume Controller 2145-8A4 power-supply cables

144 IBM SAN Volume Controller Hardware Maintenance Guide
