13. Turn on the node.

Replacing the SAN Volume Controller 2145-8A4 disk-drive backplane

To replace the SAN Volume Controller 2145-8A4 disk-drive backplane, including the SATA back plate,

complete the following steps.

1. Make sure that the air deflector

, which is shown in Figure 128, is in the open position.

Note: The air deflector also functions as the back plate latch. In this procedure, you must lift the air

deflector to access some of the cables.

2. Connect power cable connectors P2

and P3

to the replacement back plate, as shown in

Figure 129 on page 125.

svc_bb1ka055

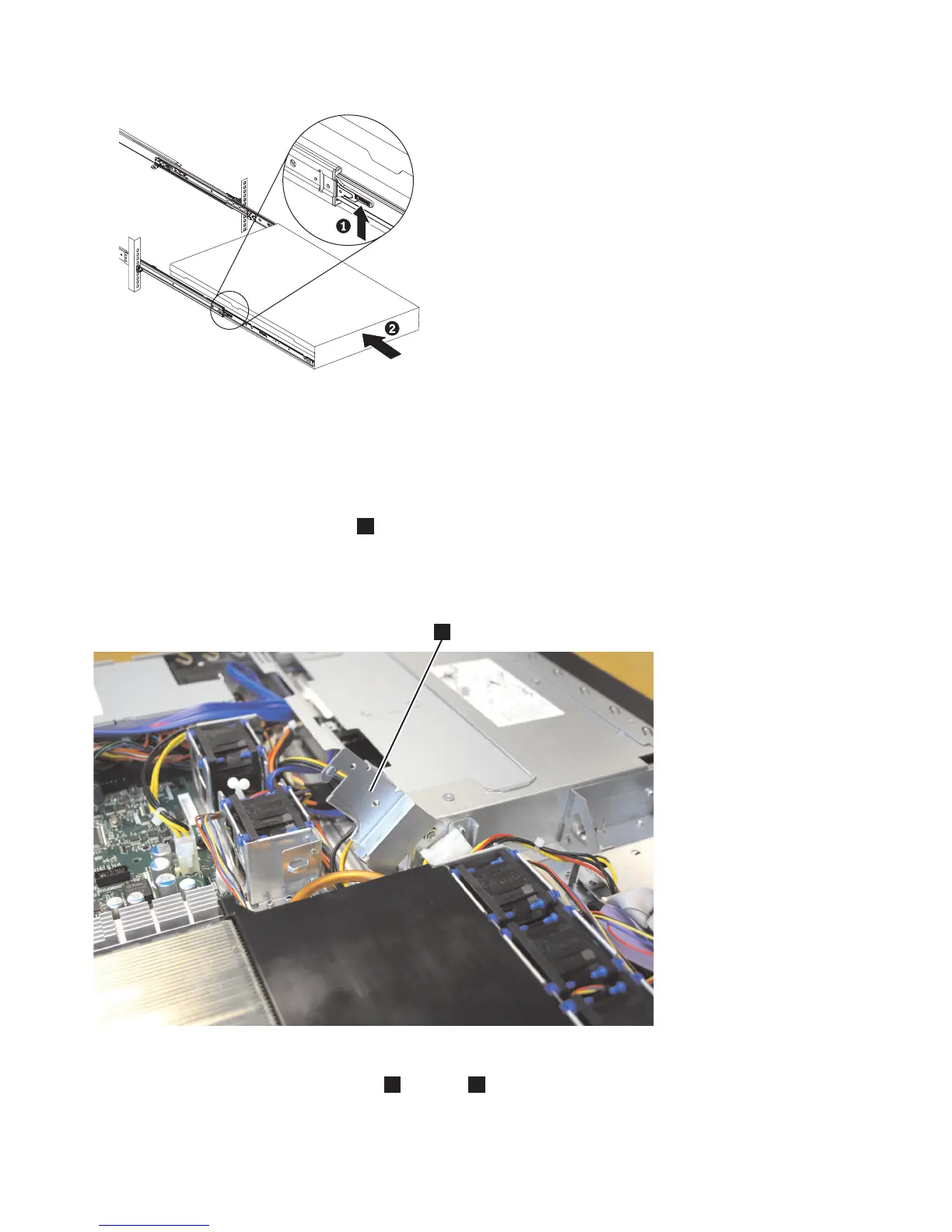

Figure 127. Raising the SAN Volume Controller 2145-CF8 locking levers of the slide rails of the rack

svc00485

Figure 128. Air deflector for the SAN Volume Controller 2145-8A4 power supply

124 IBM SAN Volume Controller Hardware Maintenance Guide
