IBM SAN Volume Controller User Manual

The following tables identify part numbers and provide brief descriptions of the SAN Volume Controller
2145-CF8 parts. Use the assembly index number to locate and identify the parts that are shown in
Figure 1.
v Table 3 on page 3 calls out the FRUs that are referred to in service procedures.
v Table 4 on page 5 lists the FRUs that are not referred to by any SAN Volume Controller 2145-CF8
service procedure, but that might be replaced in some circumstances.
v “SAN Volume Controller 2145-CF8 parts” on page 1 lists the FRUs that are related to the optional
solid-state drive (SSD) features.
4
1
2
3
7
8
11
13
14
12
10
15
svc_nn1en026
5
6
9

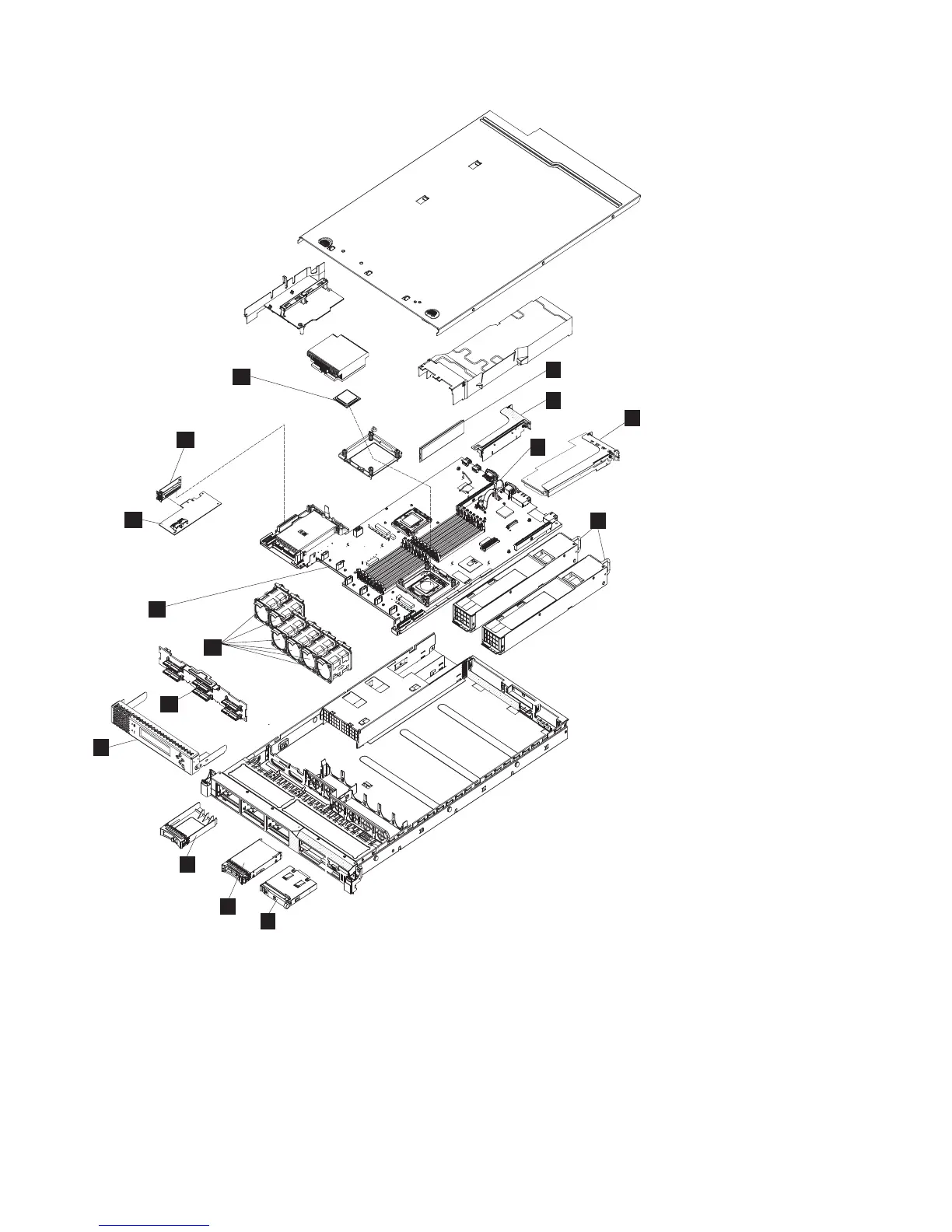

Figure 1. Exploded view of the SAN Volume Controller 2145-CF8 node
2 IBM SAN Volume Controller Hardware Maintenance Guide

IBM SAN Volume Controller Specifications

General

Product Name	IBM SAN Volume Controller
Category	Storage
Storage Virtualization	Yes
RAID Support	Yes
Compression Support	Yes
Encryption Support	Yes
Host Interface	Fibre Channel, iSCSI, FCoE, SAS
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Cache Per System	2TB
Supported Drive Types	SSD
High Availability	Yes
