1 Fan door A

2 Fan door B

4. Disconnect the cable of the failing fan from the connector. Figure 237 shows the location of the fans.

1 Fan 1

2 Fan 2

3 Fan 3

4 Fans 4, 5, 6, and 7

5. Pull up on the orange tab on the side of the failing fan.

6. Lift the fan out of the node.

Replacing the fans

You might have to replace one or more SAN Volume Controller fans if they fail.

svc00087

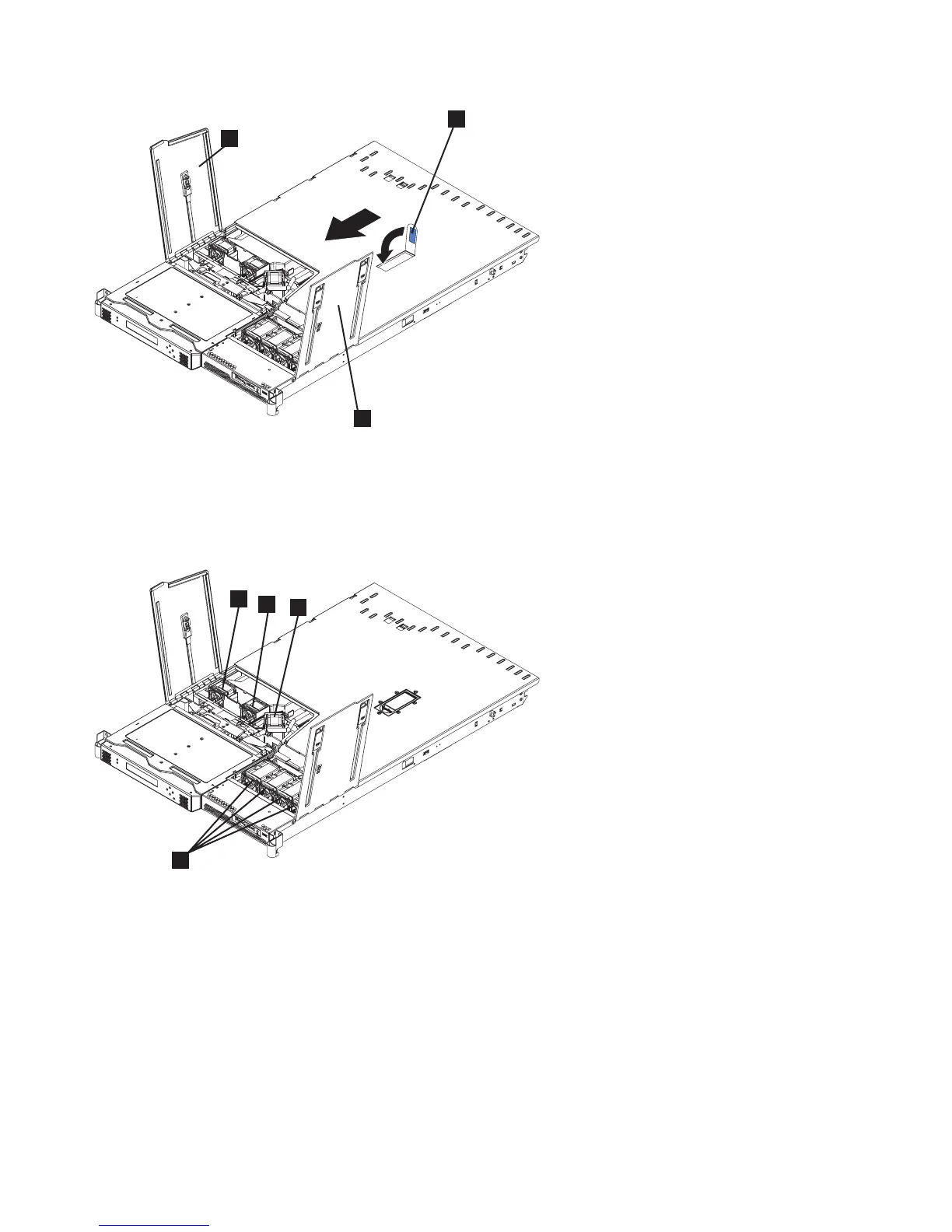

Figure 236. SAN Volume Controller 2145-8F2 with the access doors open

svc00120

Figure 237. SAN Volume Controller 2145-8F2 fan locations

214 IBM SAN Volume Controller Hardware Maintenance Guide
