Removing the support rails for a 2145 UPS-1U

You can remove the support rails for the 2145 UPS-1U.

Perform the following steps to remove the support rails:

1. Loosen and remove the two M6 × 10 screws from each side of the 2145 UPS-1U. See

in Figure 312.

2. Remove the 2145 UPS-1U from the rack.

3. Remove the clip nut from the top hole of the rail (

in Figure 313).

4. Detach the M6 × 10 screw

from the clip nut

in the bottom hole of the rail.

5. Remove the two M6 × 10 screws from the rear side of the rail (

in Figure 314 on page 281) and the

two clip nuts (

svc00008

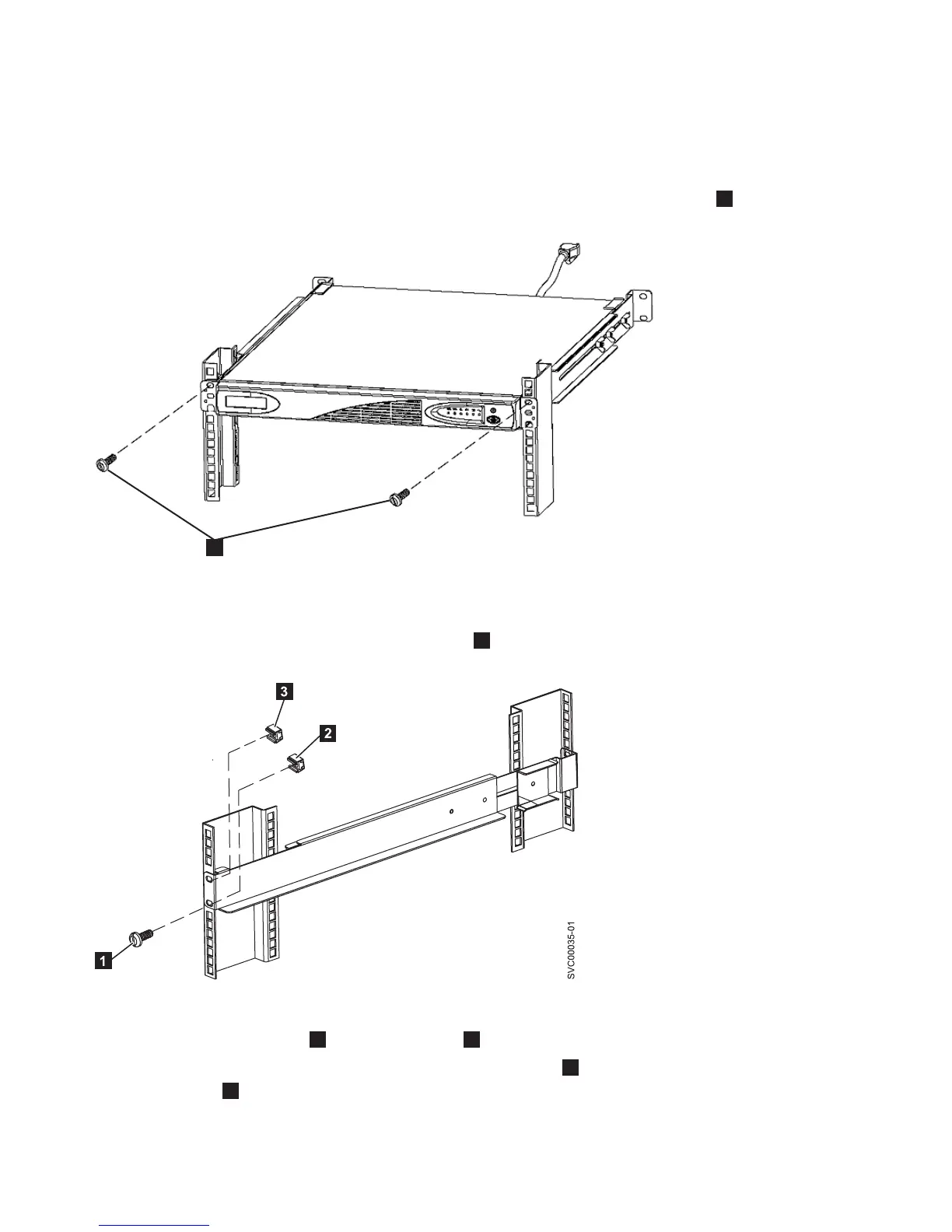

Figure 312. Removing the front screws from the 2145 UPS-1U

Figure 313. Removing the front rail on the 2145 UPS-1U

280 IBM SAN Volume Controller Hardware Maintenance Guide
