5. Remove the 2145 UPS-1U front panel by pulling it towards you and to the left, as shown in

Figure 306.

Note: If you are having difficulty pulling the right side of the panel free from the 2145 UPS-1U,

insert a flat-blade screwdriver between the right side of the cover and the frame and gently pry it

free.

6. Remove the protective tape from the internal battery connector (circled in Figure 307 on page 278).

svc00008

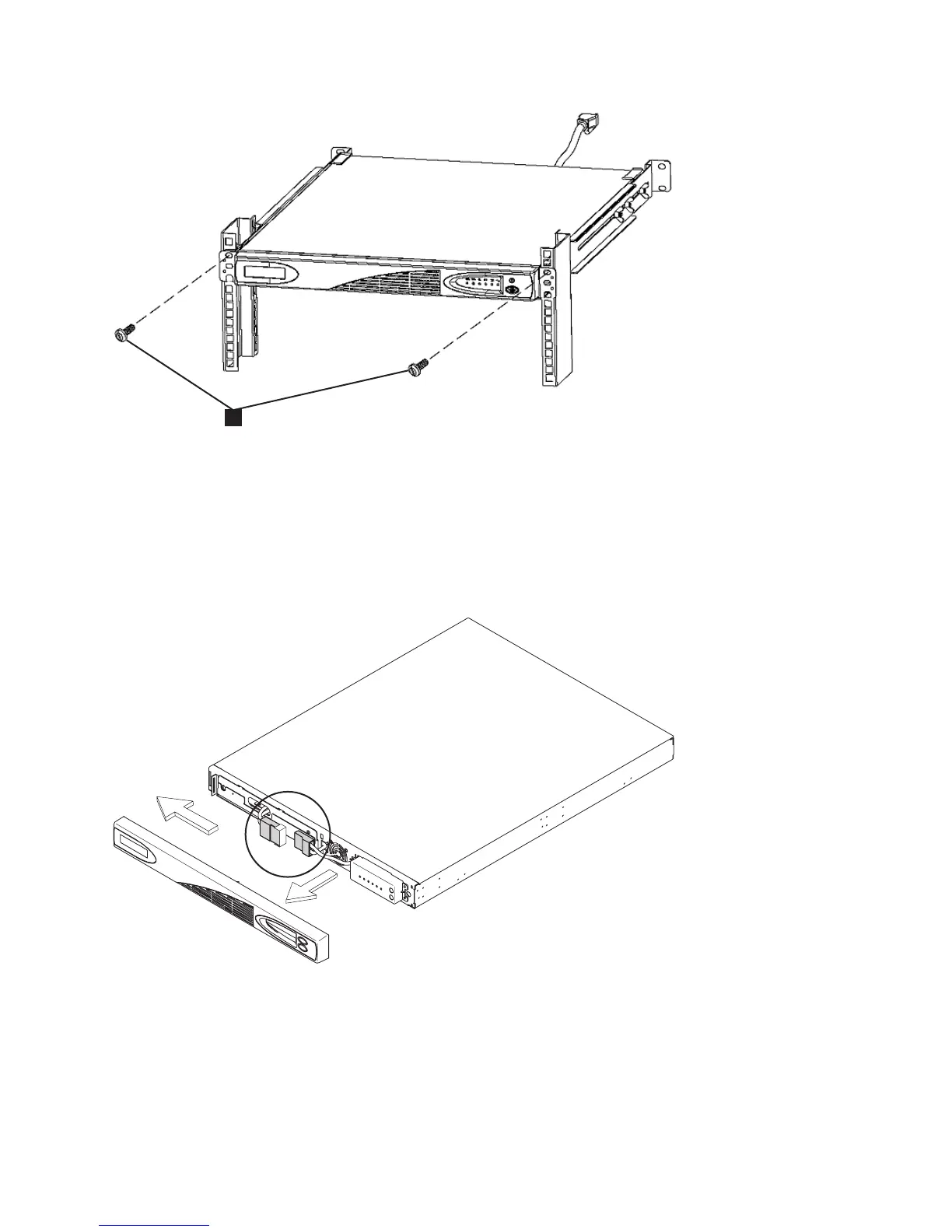

Figure 305. Mounting screws for the 2145 UPS-1U

svc00063

Figure 306. Removing the 2145 UPS-1U front panel

Chapter 2. Removing and replacing parts 277
