2. Install the L-shaped cable-management stop bracket, as shown by 1 in Figure 17 on the unattached

end of the support arm. Turn the bracket 2 to secure it to the support arm.

3. To attach the other side of the support arm to the backside of the slide rail, push the blue latch on the

cable-support-arm stop bracket, as shown by 1 in Figure 18, to slide the bracket 2 into the slide

rail.

svc_bb1ka025

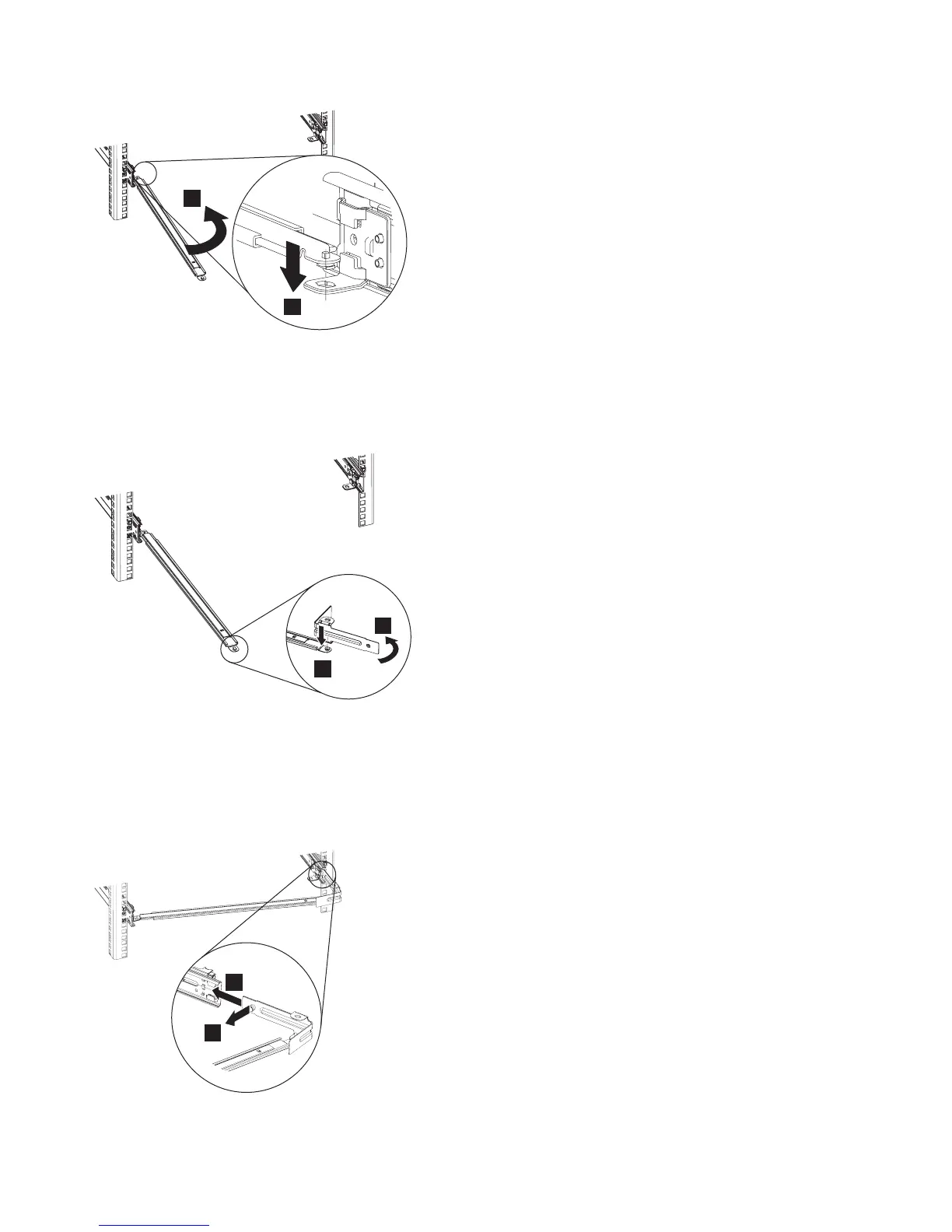

Figure 16. Rack rear: Attaching the SAN Volume Controller 2145-CF8 cable-management support arm

svc_bb1ka030

Figure 17. Rack rear: Installing the SAN Volume Controller 2145-CF8 cable-management stop bracket

svc_bb1ka035

Figure 18. Attaching the free end of the SAN Volume Controller 2145-CF8 support arm

26 IBM SAN Volume Controller Hardware Maintenance Guide
