5. Push the back rail bracket 1 (Figure 65) toward the front of the rail until it stops. The rail is now at

its shortest adjustment.

1 Latch-lever

2 Latch-lock

3 Back rail bracket

6. Place the front end of the left rail in the rack cabinet. Align the top of the front bracket 1

(Figure 66) with the required EIA marking that is on the rack.

1 Front bracket

2 Rack-mounting flange

3 Locating pins

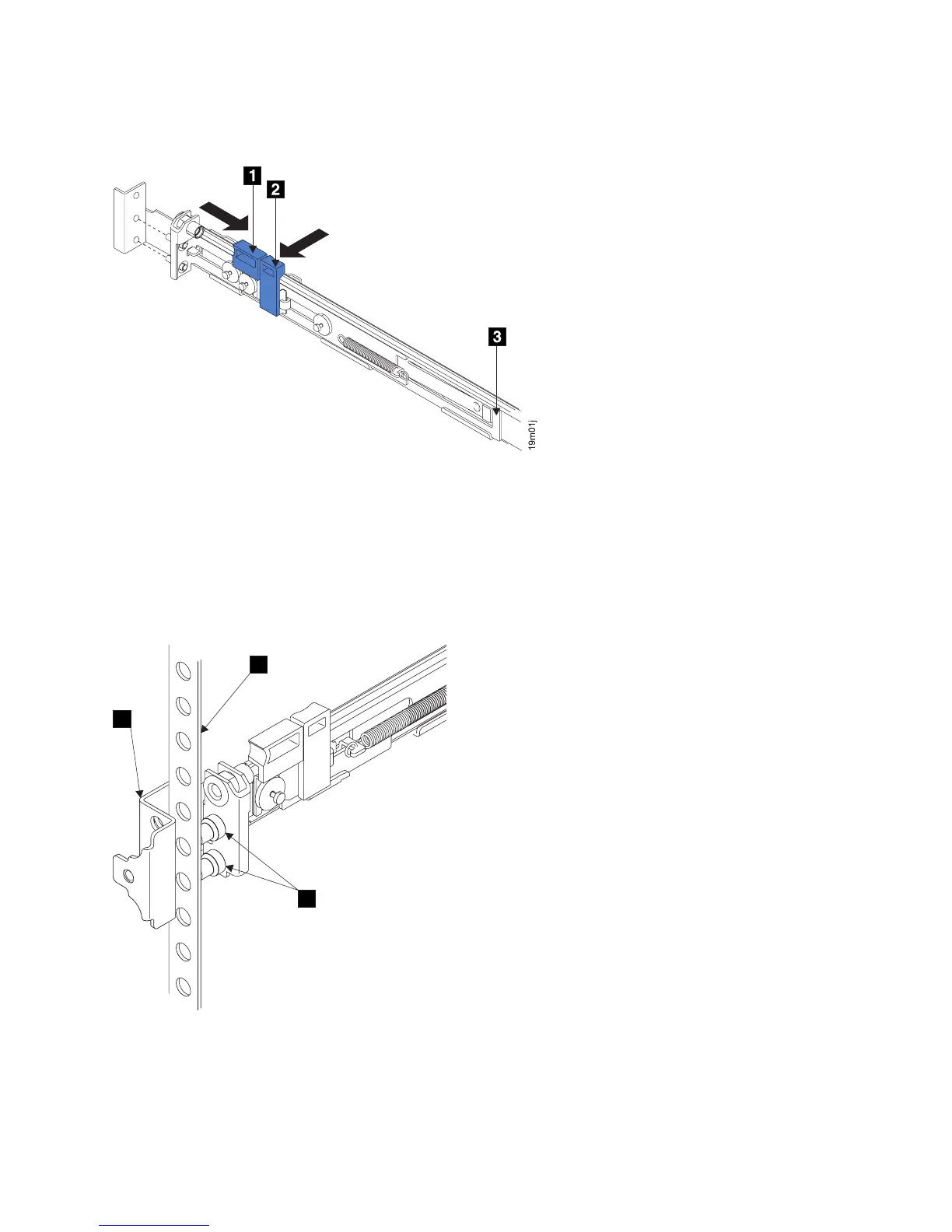

Figure 65. Opening the back latch-lock carrier assembly

Figure 66. Installing the front end of the rail

Chapter 2. Removing and replacing parts 67
