6. Remove the cable-management mounting bracket from the same slide rail onto which the

cable-management arm was installed.

The cable-management support arm is not shown in Figure 12 on page 24.

Pull out the mounting bracket pin 1 and slide the mounting bracket 2 out of the left slide rail.

Pull the bracket from the slide rail until it is free.

svc_bb1ka225

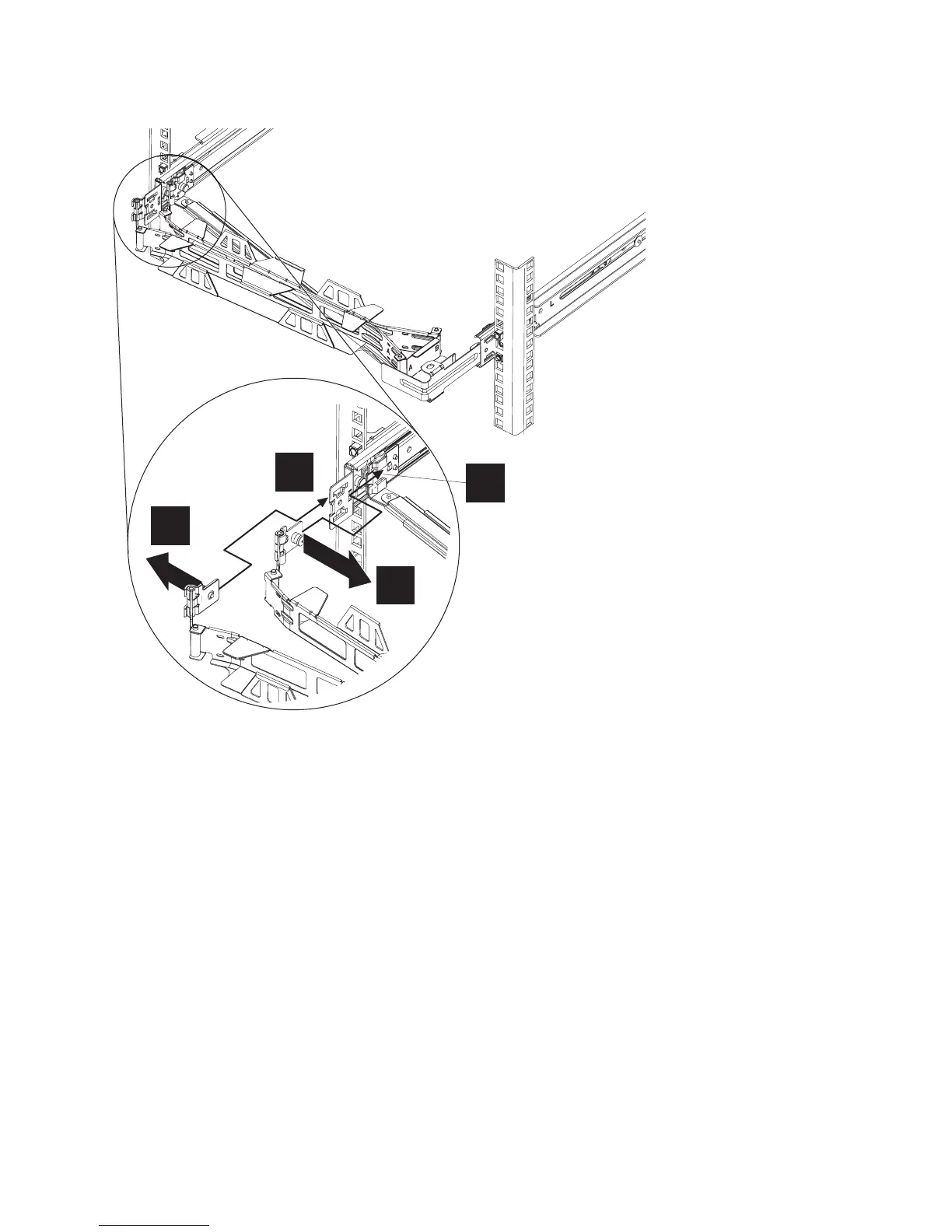

Figure 11. SAN Volume Controller 2145-CF8 cable-management arm on the support arm

Chapter 2. Removing and replacing parts 23
