7. Remove the accessory box and the Quick Start installation instructions.
8. Verify the parts received against the lists.
9. Remove the vapor corrosion inhibitor (VCI) packs attached to the pallet, being careful
not to break the VCI packs open.
10. To remove the brackets holding the chassis on the pallet, use a 1/2-in. socket wrench
and a number 2 Phillips screwdriver to remove the bolts and screws from the brackets.
11. Store the brackets and bolts inside the accessory box.
12. Save the shipping crate cover, pallet, and packing materials in case you need to move
or ship the switch at a later time.

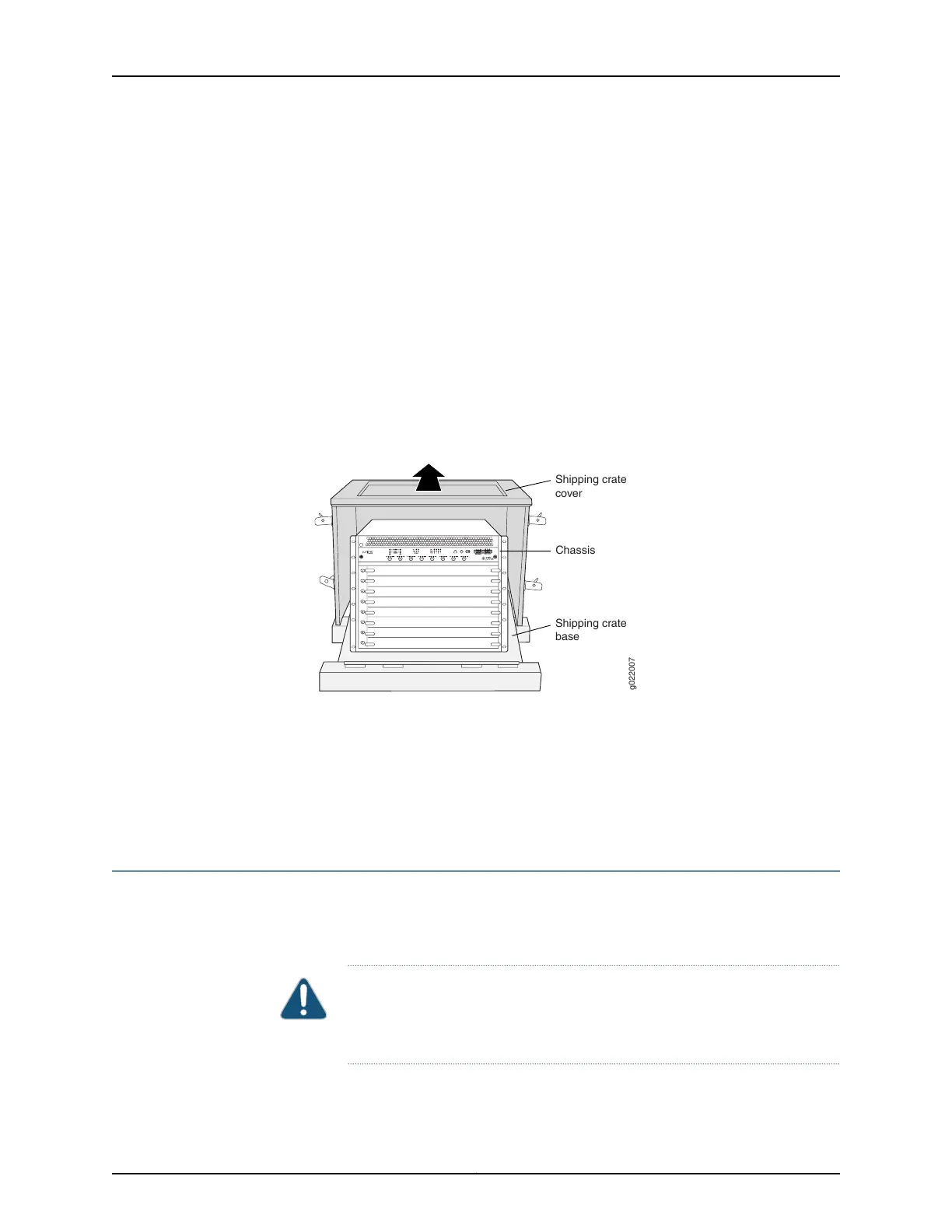

Figure 43 on page 156 shows an EX9208 switch in the shipping crate. The contents are
the same for all EX9200 switches.
Figure 43: Contents of the Shipping Crate for EX9200 Switches
g022007
Shipping crate
cover
Chassis
Shipping crate
base
Related
Documentation
Mounting an EX9200 Switch on a Rack or Cabinet Using a Mechanical Lift on page 165•
• Mounting an EX9204 Switch on a Rack or Cabinet Without Using a Mechanical Lift
• Mounting an EX9208 Switch on a Rack or Cabinet Without Using a Mechanical Lift on
page 168
Unpacking a Line Card Used in an EX9200 Switch
The line cards for EX9200 switches are rigid sheet-metal structures that house the line
card components including network ports. The line cards are shipped in a cardboard
carton, secured with foam packing material.
CAUTION: The line cards are maximally protectedinside the shipping carton.
Do not unpack the line cards until you are ready to install them in the switch
chassis.
Before you unpack a line card:
Copyright © 2017, Juniper Networks, Inc.156
EX9208 Switch Hardware Guide
