This topic describes:
•
Line Card Models on page 66
•
Line Card Components on page 66
Line Card Models
Table 30 on page 66 shows the model number, description of the line card model, and
the Junos OS release in which the line card was first supported.
Table 30: EX9200-40T Line Card
Junos OS Release RequiredDescriptionModel
12.3R2 or laterA line card with 40 RJ-45 ports that
support RJ-45 connectors
EX9200-40T
See Figure 33 on page 66.

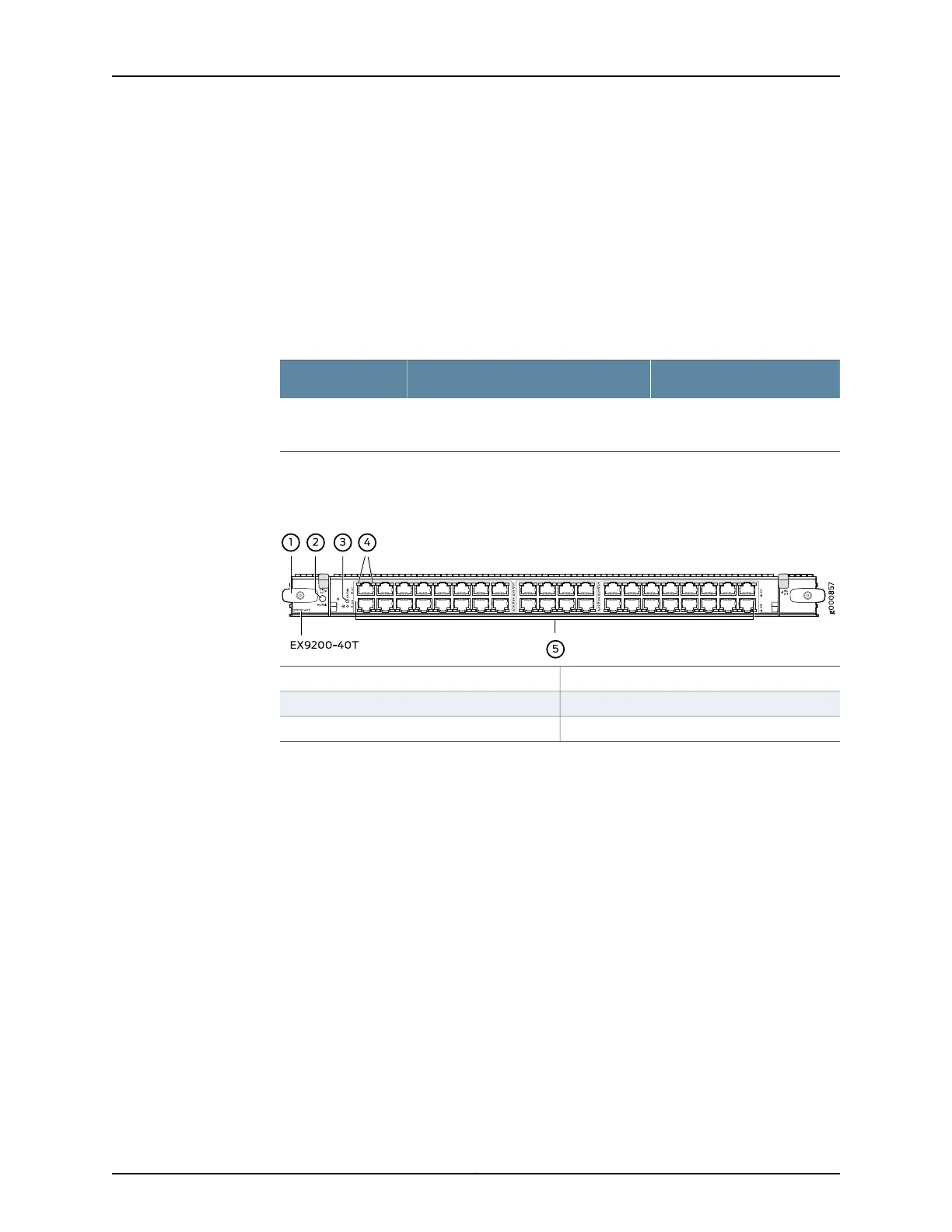

Figure 33: EX9200-40T Line Card
4—1— LEDs for the portsEjector lever
5—2— RJ-45 portsLine card LED
3—MIC LED
You can use the show version command to see the version of Junos OS for EX Series
switches loaded on the switch.
Line Card Components
The EX9200-40T line card has:
•
40 RJ-45 ports that support RJ-45 connectors
•
Line card LED—An LED labeled OK/FAIL, which indicates the status of the line card.
See “Line Card LED in an EX9200 Switch” on page 71.
•
MIC LED—An LED labeled OK/FAIL on each MIC, which indicates the status of the MIC.
See “Modular Interface Card LED in an EX9200 Switch” on page 34.
•
LEDs for the ports—One LED on each port, the Link/Activity LED, which indicates the
link status and activity on the port and another LED, the Status LED, which indicates
the status of the port parameters. See “Network Port LEDs on Line Cards in an EX9200
Switch” on page 33.
Copyright © 2017, Juniper Networks, Inc.66
EX9208 Switch Hardware Guide
