4. Place one hand underneath the RE module to support it.
5. Carefully align the sides of the RE module with the guides inside the RE slot on the
SF.
6. Slide the RE module into the SF module until you feel resistance, and then press in
the faceplate of the RE module until it engages the connectors.
7. Press both of the ejector handles inward to seat the RE module.
8. Tighten the screws, one on each side of the RE module using a screwdriver.
9. Connect the management device cables to the RE module.
The RE module might require several minutes to boot.
After the RE module boots, verify that it is installed correctly by checking the RE0 and
RE1 LEDs on the craft interface. If the switch is operational and the Routing Engine is
functioning properly, the ONLINE LED glows steady green. If the FAIL LED glows red
steadily instead, remove and install the RE again. If the FAIL LED still glows red steadily,
the RE is not functioning properly. Contact your customer support representative.
You can use show chassis routing-engine command to check the status of Routing
Engines.
Figure 69 on page 224 shows installing an RE module in an EX9204 switch. The procedure
is the same for all EX9200 switches.

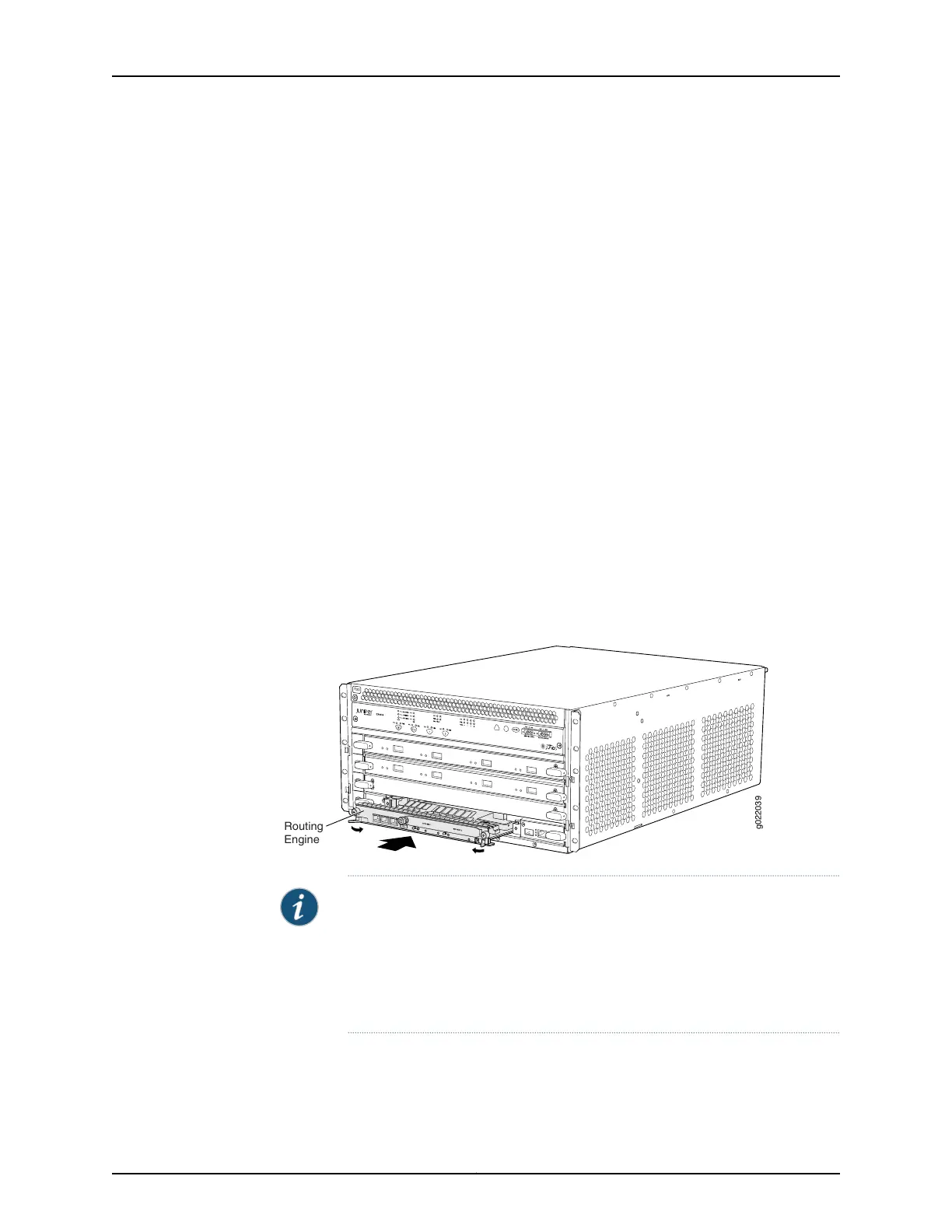

Figure 69: Installing an RE Module in an EX9200 Switch
g022039
0
2
1
0
1
ESD
Routing
Engine
NOTE: If you have a Juniper J-Care service contract, register any addition,
change, or upgrade of hardware components at
https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure
to do so can result in significant delays if you need replacement parts. This
note does not apply if you replace existing components with the same type
of component.
Related
Documentation
Removing an RE Module from an EX9200 Switch on page 225•
• Switch Fabric Module in an EX9200 Switch on page 29
Copyright © 2017, Juniper Networks, Inc.224
