Juniper EX9208 - Figure 4: EX9208 Switch; Figure 5: EX9208 Switch with AC Power Supplies

Table 7: Physical Specifications of the EX9208 Switch Chassis (continued)
DepthWidthHeightWeightDescription
22 in. (55.9 cm)17 in. (43.2 cm)1.25 in. (3.2 cm)14.8 lb (6.7 kg)EX9200-40F-M line
card
22 in. (55.9 cm)17 in. (43.2 cm)1.25 in. (3.2 cm)17 lb (7.7 kg)EX9200-40XS line
card

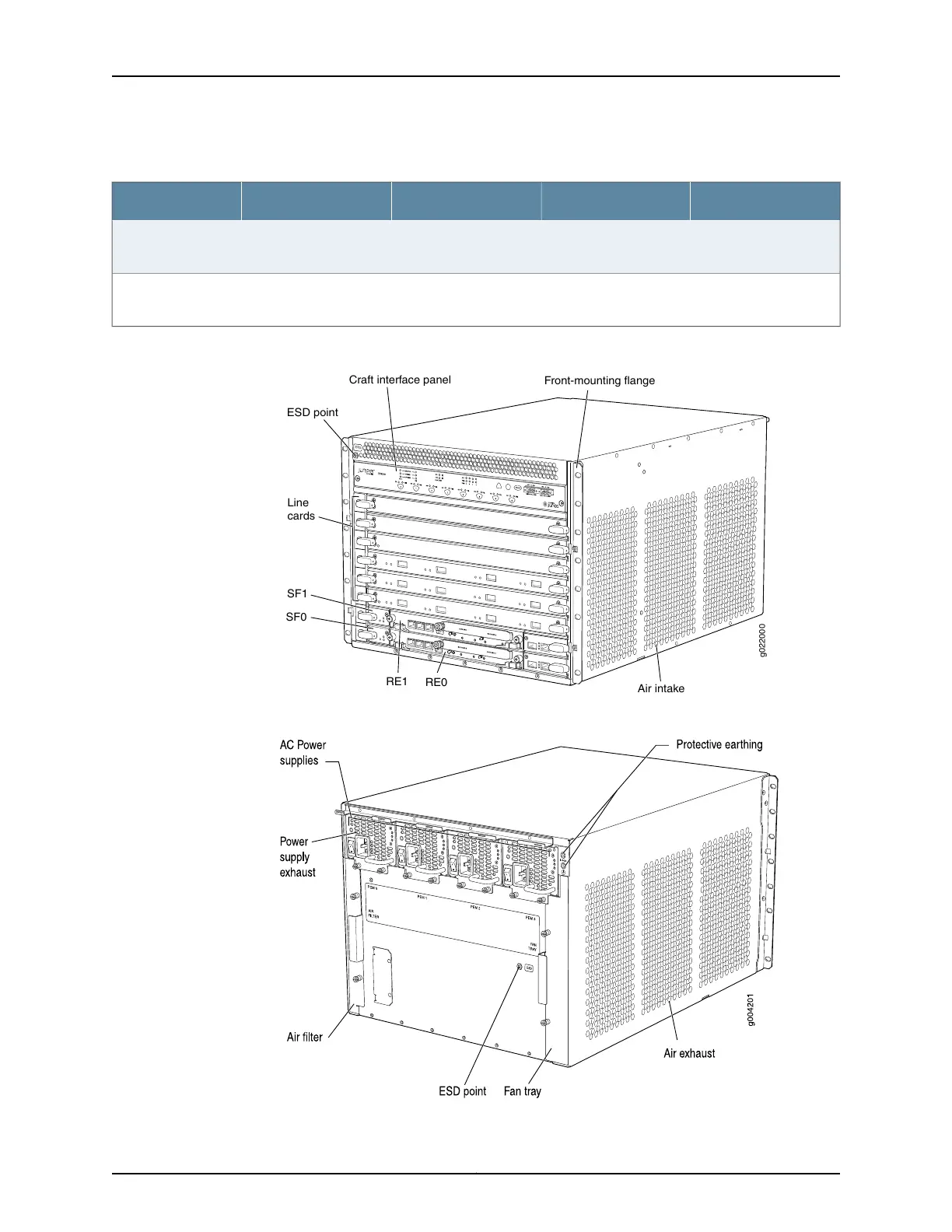

Figure 4: EX9208 Switch
ESD
g022000
Front-mounting flange
SF1
Line
cards
SF0
RE1
RE0
ESD point
Craft interface panel
Air intake
Figure 5: EX9208 Switch with AC Power Supplies
