switch; however, the orientation of the fan try is different—it is installed horizontally into

the top and bottom of the chassis (see Figure 62 on page 211).

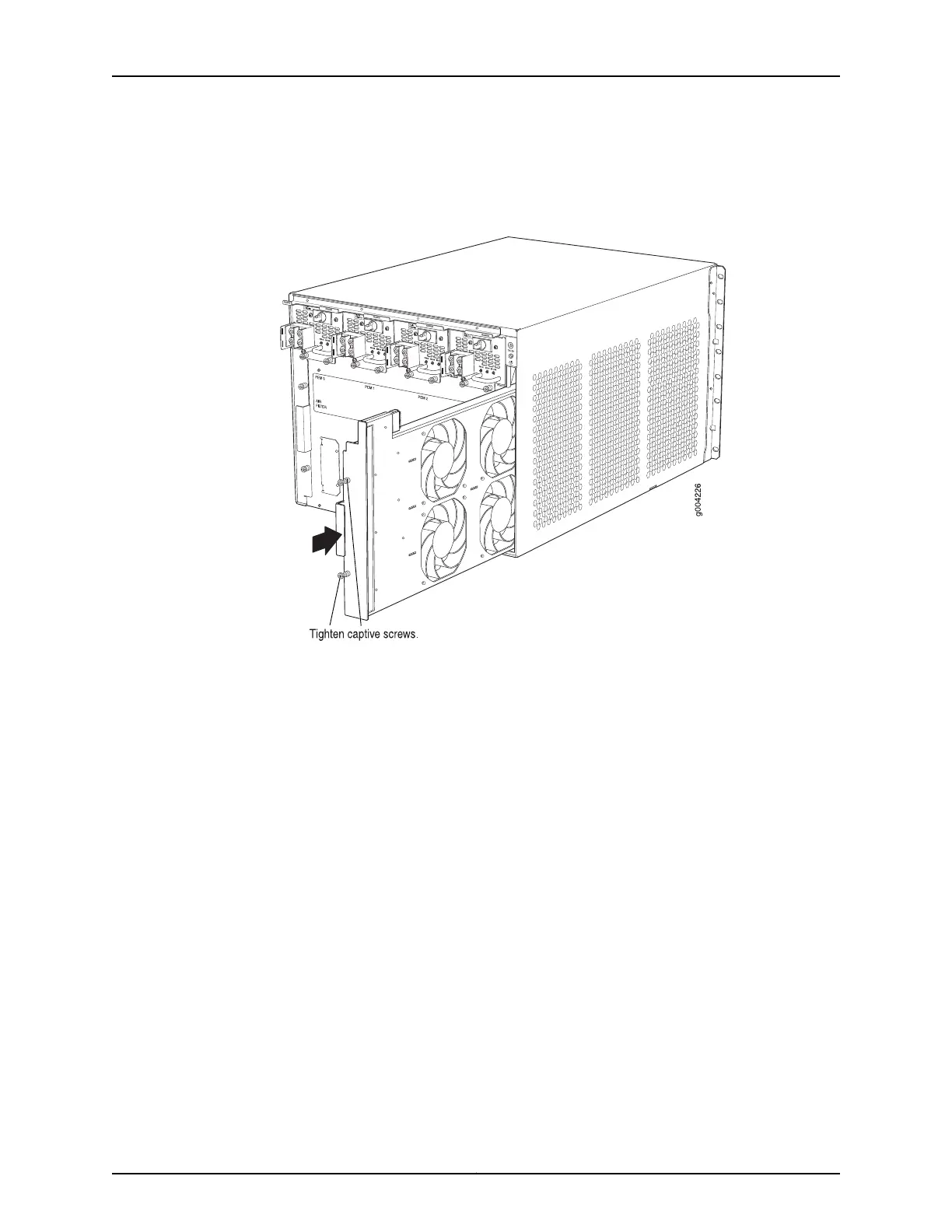

Figure 61: Installing a Fan Tray in an EX9208 Switch

Copyright © 2017, Juniper Networks, Inc.210

EX9208 Switch Hardware Guide
