5.0 V RE 4969 mV
12.0 V 12258 mV
12.0 V RE 12239 mV
Power 2
4.6 V bias MidPlane 4840 mV
11.3 V bias PEM 11195 mV
11.3 V bias FPD 11234 mV
11.3 V bias POE 0 11176 mV
11.3 V bias POE 1 11214 mV
Bus Revision 64
FPGA Revision 13
PMBus Expected Measured Measured Calculated
device voltage voltage current power
XF ASIC A 1000 mV 1002 mV 11281 mA 11303 mW
XF ASIC B 1000 mV 997 mV 11015 mA 10981 mW
NOTE: The output is of an EX9208 switch. The output is similar for all
EX9200 switches.

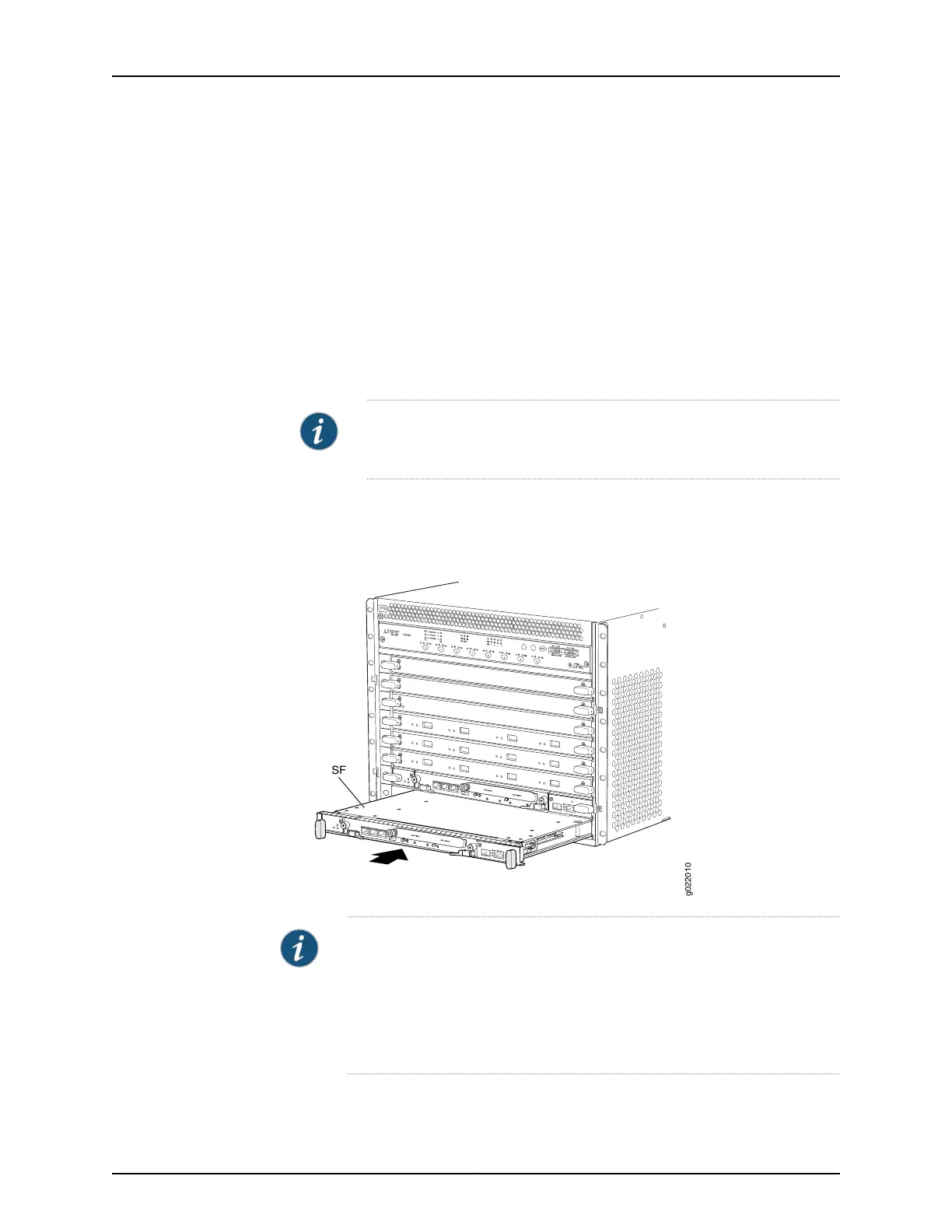

Figure 71 on page 234 shows installing an SF module in an EX9208 switch. The procedure
is the same for all EX9200 switches.
Figure 71: Installing an SF Module in an EX9200 Switch
ESD
g022010
SF
NOTE: If you have a Juniper J-Care service contract, register any addition,
change, or upgrade of hardware components at
https://www.juniper.net/customers/support/tools/updateinstallbase/ . Failure
to do so can result in significant delays if you need replacement parts. This
note does not apply if you replace existing components with the same type
of component.
