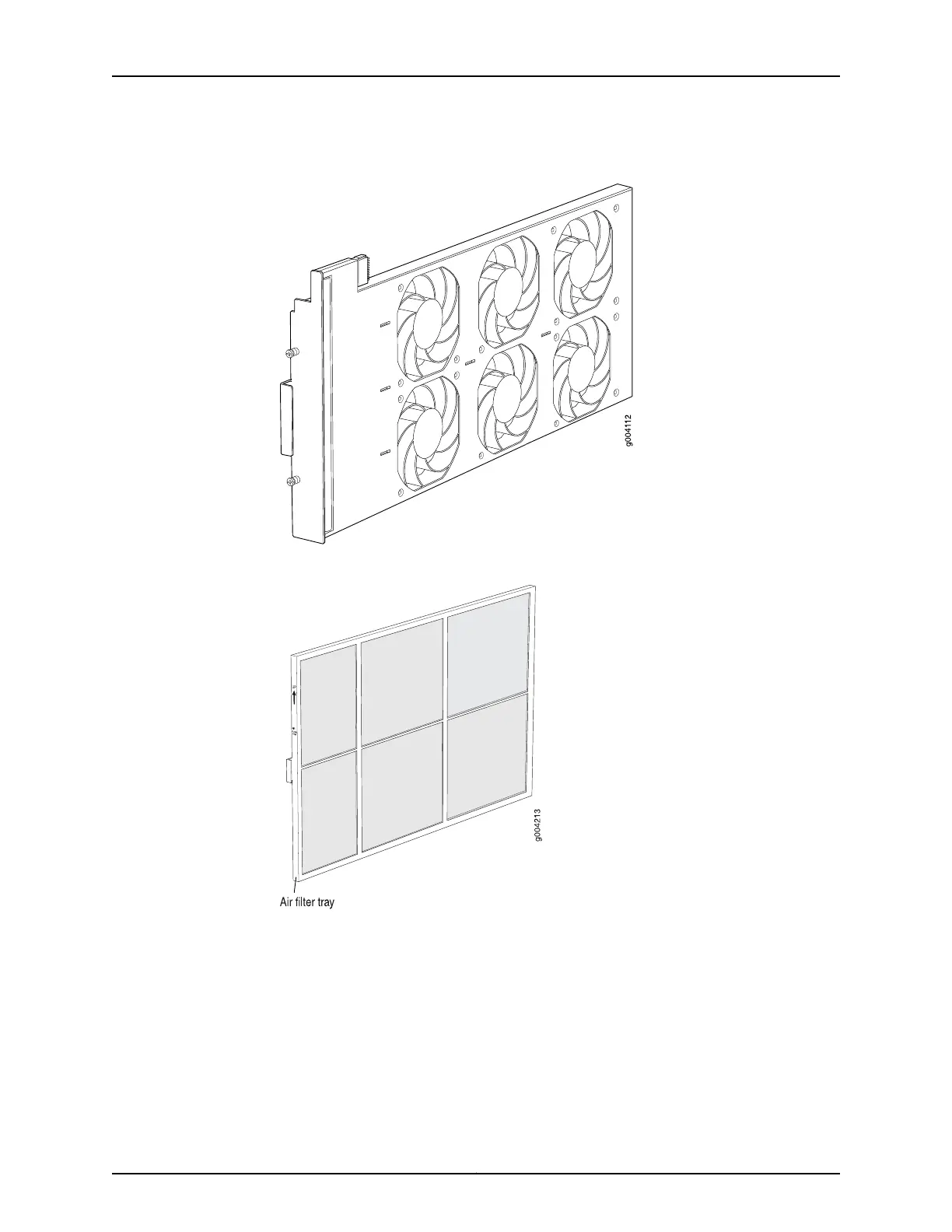

Figure 19: Fan Tray for an EX9208 Switch
Figure 20: Air Filter for an EX9208 Switch
Airflow Direction in the EX9208 Switch Chassis
The air intake to cool the chassis is located on the side of the chassis next to the air filter.
Air is pulled through the chassis toward the fan tray, where it is exhausted out through
the side of the chassis. The air intake to cool the power supplies is located in the front of
the chassis above the craft interface. See Figure 21 on page 41.
Copyright © 2017, Juniper Networks, Inc.40
EX9208 Switch Hardware Guide
