7. Grasp the RE module by the ejector handles and slide it about halfway out of the
chassis.
8. Taking care not to touch the leads, pins, or solder connections, place one hand
underneath the RE module to support it and slide it completely out of the chassis.
9. Place the RE module in the antistatic bag or on the antistatic mat.
CAUTION: Do not stack hardware components on one another after you
remove them. Place each component on an antistatic mat resting on a
stable, flat surface.
NOTE: To maintain proper airflow through the chassis, do not leave an
Switch Fabric module (SF module) installed in the chassis without an RE
module for extended periods of time. If you remove an RE module, install
a replacement RE module as soon as possible.
Figure 70 on page 226 shows removing an RE module from an EX9204 switch. The
procedure is the same for all EX9200 switches.

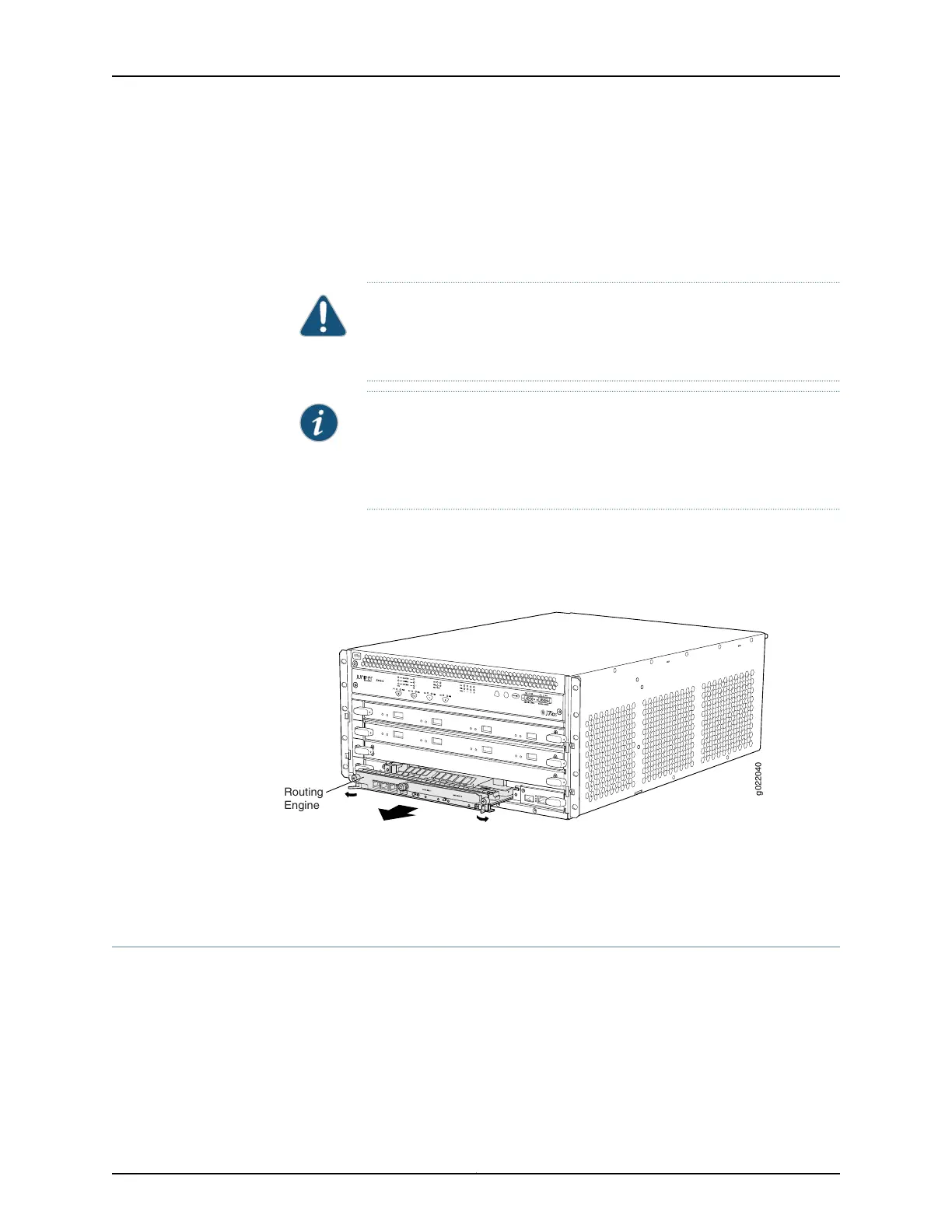

Figure 70: Removing an RE Module from an EX9200 Switch
g022040
0
2
1
0
1
ESD
Routing
Engine
Related
Documentation
Installing an RE Module in an EX9200 Switch on page 223•
• Host Subsystem in an EX9200 Switch on page 32
Taking the Host Subsystem Offline in an EX9200 Switch
Before removing a Routing Engine module (RE module) from an EX9200 switch, take
the host subsystem offline.
Thehost subsystem performs switching and system managementfunctions in an EX9200
switch.
Copyright © 2017, Juniper Networks, Inc.226
EX9208 Switch Hardware Guide
