To mount the switch on a wall:
1. Attach the wall-mount brackets to the sides of the chassis by using four of the wall-mount bracket
screws on each side (see the representation in Figure 126 on page 365). Use the screwdriver to tighten
the screws.

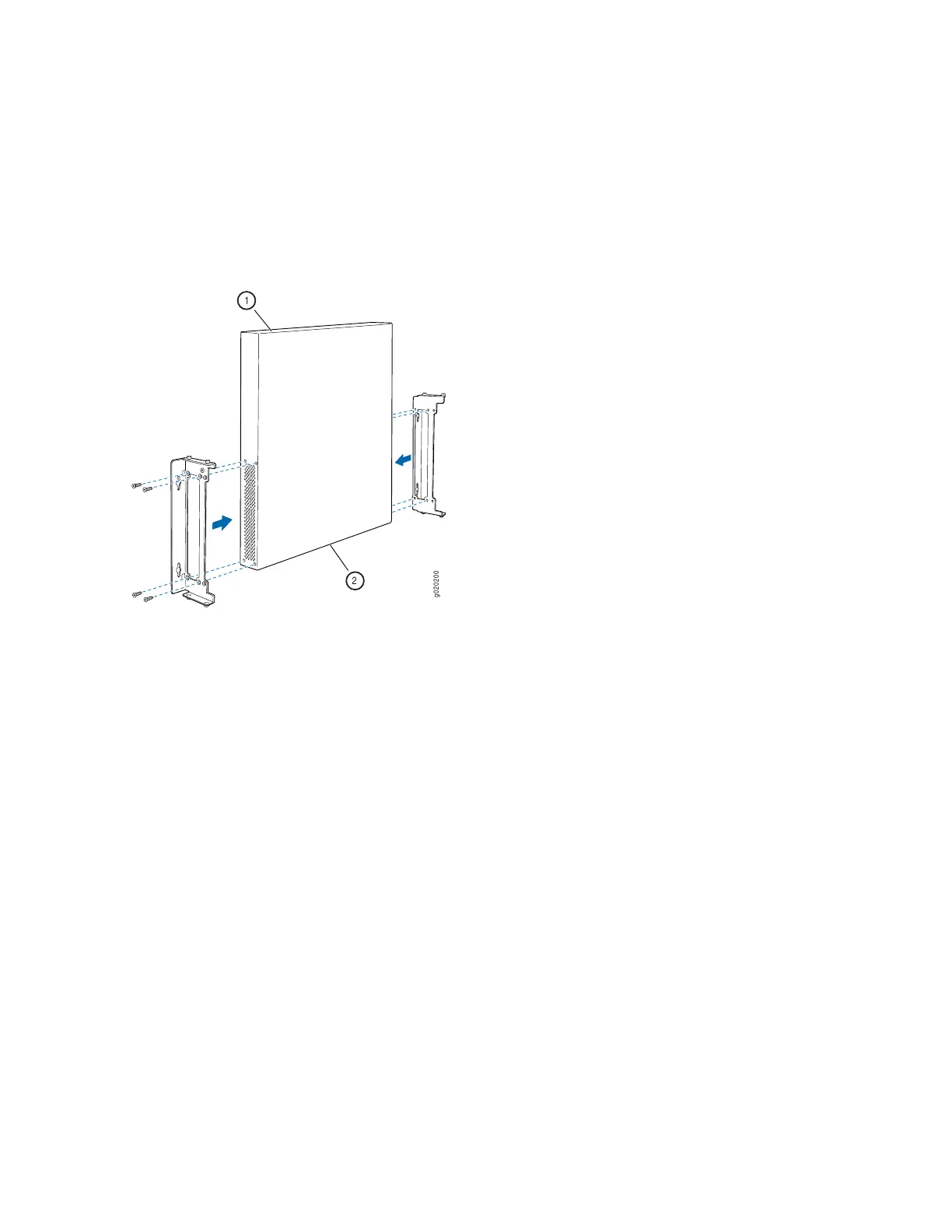

Figure 126: Attaching Wall-Mount Brackets to the Switch Chassis
2. If you are mounting two switches together, line the second switch on top of the first and attach it to
the mounting brackets by using two wall-mount bracket screws on each side (see the representation
in Figure 127 on page 366).
3. Insert the mounting screws in the wall. If you are mounting EX4300 switches except EX4300-48MP
and EX4300-48MP-S switches, insert the top pair of mounting screws 474.35 mm apart, and insert
the second pair of mounting screws 151.81 mm directly below the first set. If you are mounting
EX4300-48MP and EX4300-48MP-S switches, insert the top pair of mounting screws 474.2 mm apart,
and insert the second pair of mounting screws 152 mm directly below the first set (see
Figure 128 on page 366 and Figure 129 on page 367).
If the mounting screws are inserted in a wall board with no stud behind it, you must use dry wall anchors
rated to support 75 lb (34 kg). Insert the screws into wall studs wherever possible to provide added
support for the chassis.
Drive the screws only part way in, leaving about 1/4 in. (6 mm) distance between the head of the screw
and the wall. Use the screwdriver to drive the screws in.
4. Grasp each side of the switch or switches, lift the switch or switches, and hang the brackets from the
mounting screws (see the representation in Figure 127 on page 366).
365
