Juniper QFX5110 Series User Manual

•
Figure 208 on page 567 shows the LEDs on the built-in QSFP+ ports.
•
Figure 209 on page 568 shows the LEDs on the SFP+ uplink ports and on the uplink module ports on the
4-port 1-Gigabit Ethernet/10-Gigabit Ethernet SFP+ uplink module for EX4300 switches except
EX4300-48MP and EX4300-48MP-S switches.
•
Figure 210 on page 568 shows the LEDs on the ports on the 2-port 40-Gigabit Ethernet QSFP+ uplink
module for EX4300-32F switches.
•
Figure 211 on page 568 shows the LEDs on the ports on the 8-port 10-Gigabit Ethernet SFP+ uplink
module for EX4300-32F switches.
•
Figure 212 on page 569 shows the LEDs on the ports on the 2-port 40-Gigabit Ethernet
QSFP+/100-Gigabit Ethernet QSFP28 uplink module for EX4300-48MP and EX4300-48MP-S switches.
•
Figure 213 on page 569 shows the LEDs on the ports on the 4-port 1-Gigabit Ethernet SFP/10-Gigabit
Ethernet SFP+ uplink module for EX4300-48MP and EX4300-48MP-S switches.

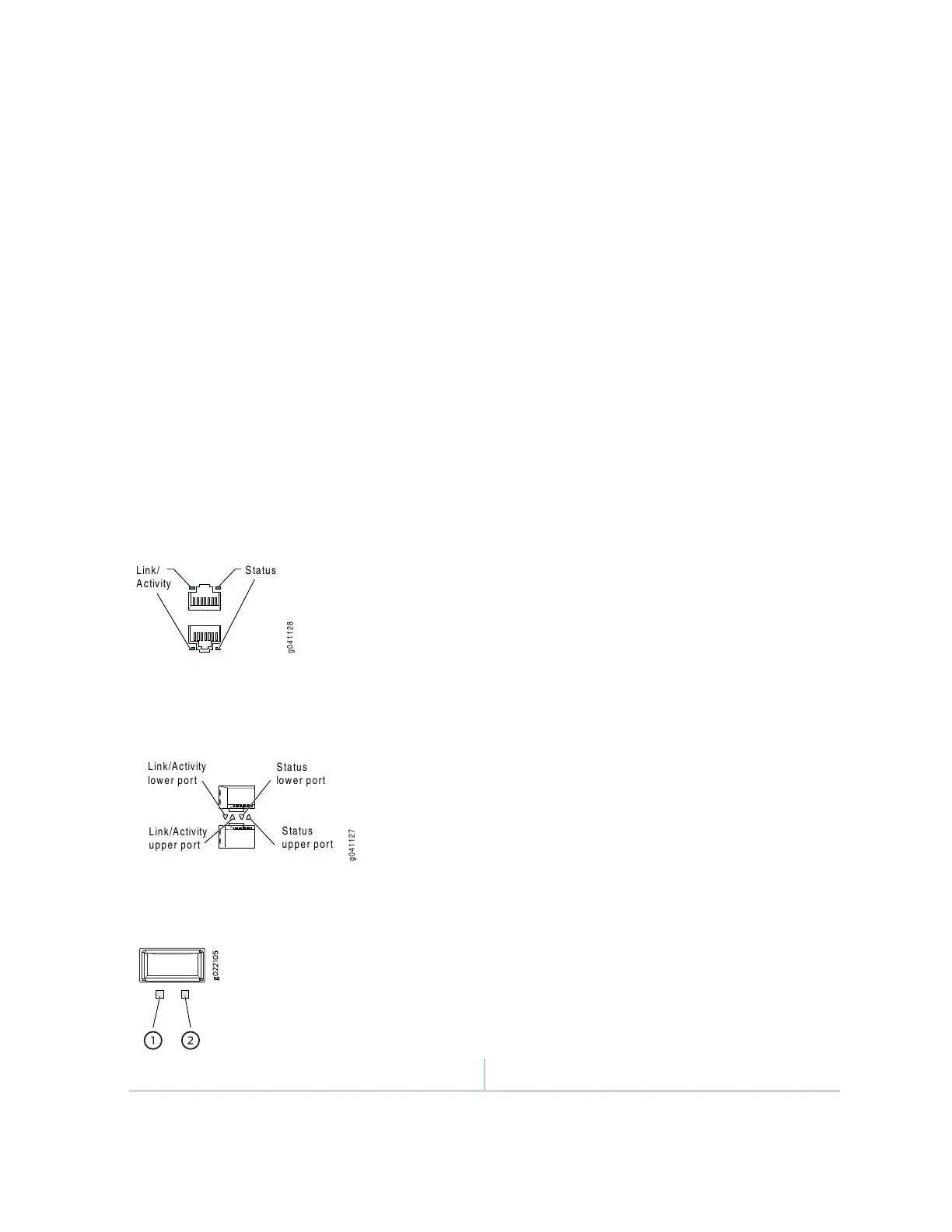

Figure 206: LEDs on 10/100/1000BASE-T Network Ports and 100/1000/2500/5000/10000BASE-T
Ethernet Network Ports
g041128
Link/
Activity
Status
Figure 207: LEDs on the SFP Network Ports on EX4300-32F Switches
g041127
Link/Activity
lower port
Link/Activity
upper port
Status
lower port
Status
upper port
Figure 208: LEDs on the Built-In QSFP+ Ports
2—1— Status LEDLink activity LED
567

Juniper QFX5110 Series Specifications

General

Rack Units	1U
Operating System	Junos OS
Form Factor	Fixed
Management	CLI, SNMP, NETCONF
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 90% non-condensing
AC Power Input	100-240 VAC
Power Supply	Redundant, hot-swappable
