Chapter 7: Diagnostics and Maintenance
MP65492–1 139 Linx 4900 Operating Manual
Editing and Printing a Test Pattern
Once the test patterns have been generated, they are stored as messages—
one message for each message type available on the printer. Test pattern
messages are automatically allocated names beginning with ‘TEST’,
followed by the message type name, for example, TEST16 Flexible.
You can select, edit, and print a test pattern message using the same
method as a normal message.
When you select a test message for printing, at the SELECT MESSAGE
menu, type in T (first character of a test message) to quickly find the test
message you want.

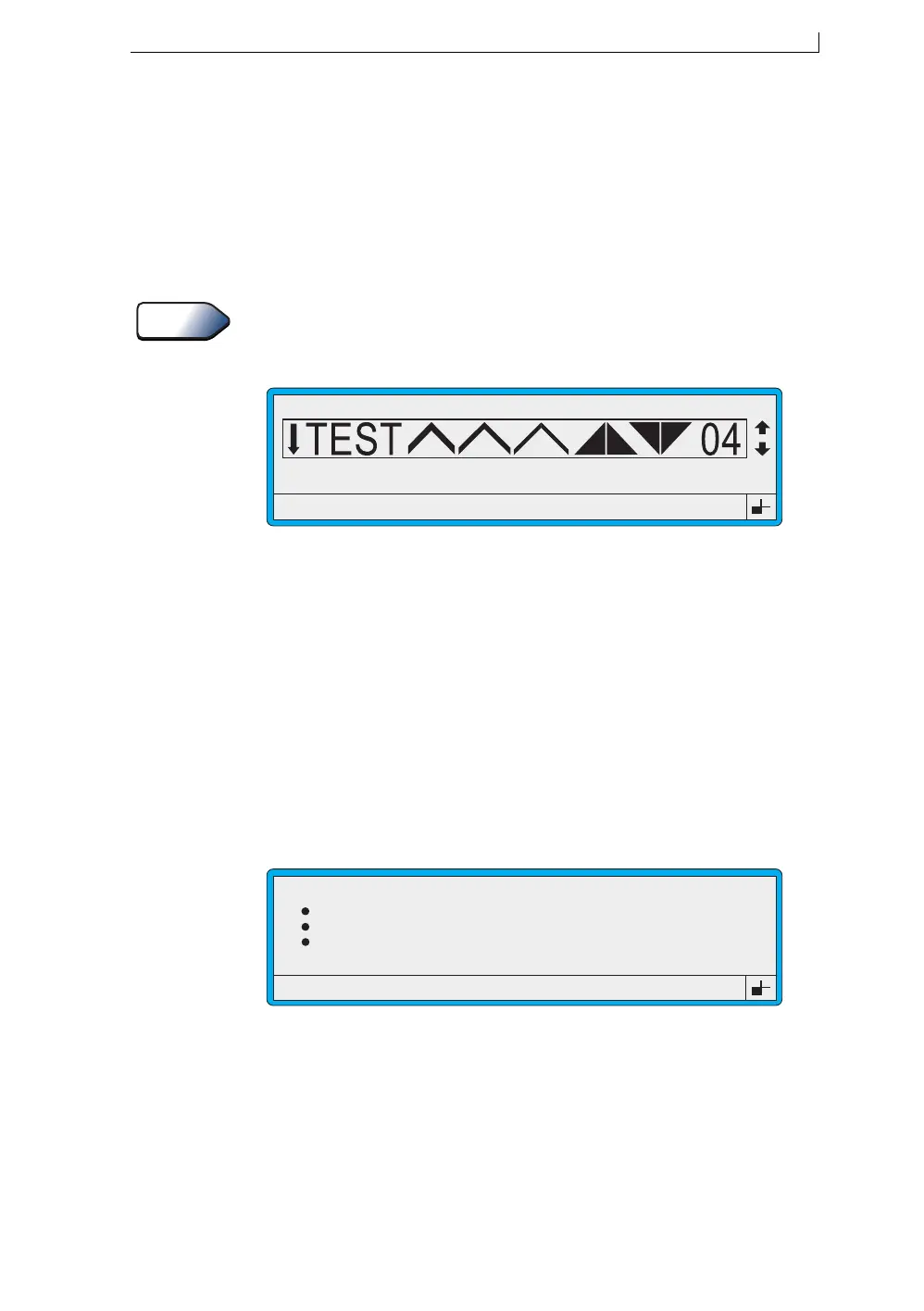

Figure 7-9 Test Pattern Selected for Printing
7.2.6 To View the Type of Ink in Use
The Ink Type Selection option displays the ink type used in the printer.
This option is set during commissioning of the printer and cannot be
changed. There are four types of ink available for the 4900 printer: A, B, C
and D. Type A is the default ink type.
To view the type of ink being used in the printer:
1. At the CURRENT MESSAGE screen, press the [F4] function key to
display the SETUP menu.
2. Scroll through the menu options to Ink Type Selection, as shown
below:
Figure 7-10 Setup Menu: Ink Type Selection Option
Tip
49077
F1 : Change Message
F3 : New Message
F2 : Check Status
F4 : Change Setup
CURRENT MESSAGE : Test16 Quality
Primary Trigger
Shaft Encoder
Auto Power Down
Ink Type Selection
49280
SETUP
: Leading Edge
: On
: A
>
