Chapter 1: Introduction
MP65492–1 1 Linx 4900 Operating Manual
1 Introduction
This chapter introduces you to the Linx 4900 printer system, explains the
main features of the printer system, the main features of the user interface
and gives you a brief overview of the ink jet printing process.
1.1 About the 4900 Printer System
1.1.1 Overview
The Linx 4900 printer system is a fast, reliable, non-contact ink jet printer
designed to provide versatile, uninterrupted operation in factory
environments. It is used to apply sell-by dates, batch codes, logos and other
variable information to a wide range of substrates on the production line
using ‘continuous ink jet’ printing technology. A brief overview of the
continuous ink jet process is described later in this chapter.
The printer has a stainless steel enclosure, known as the printer cabinet (see
Figure 1-1 below) that houses the following:
• Electronics module
• Ink system
• Power supply
• Integral printer control panel (see Figure 1-1 below)

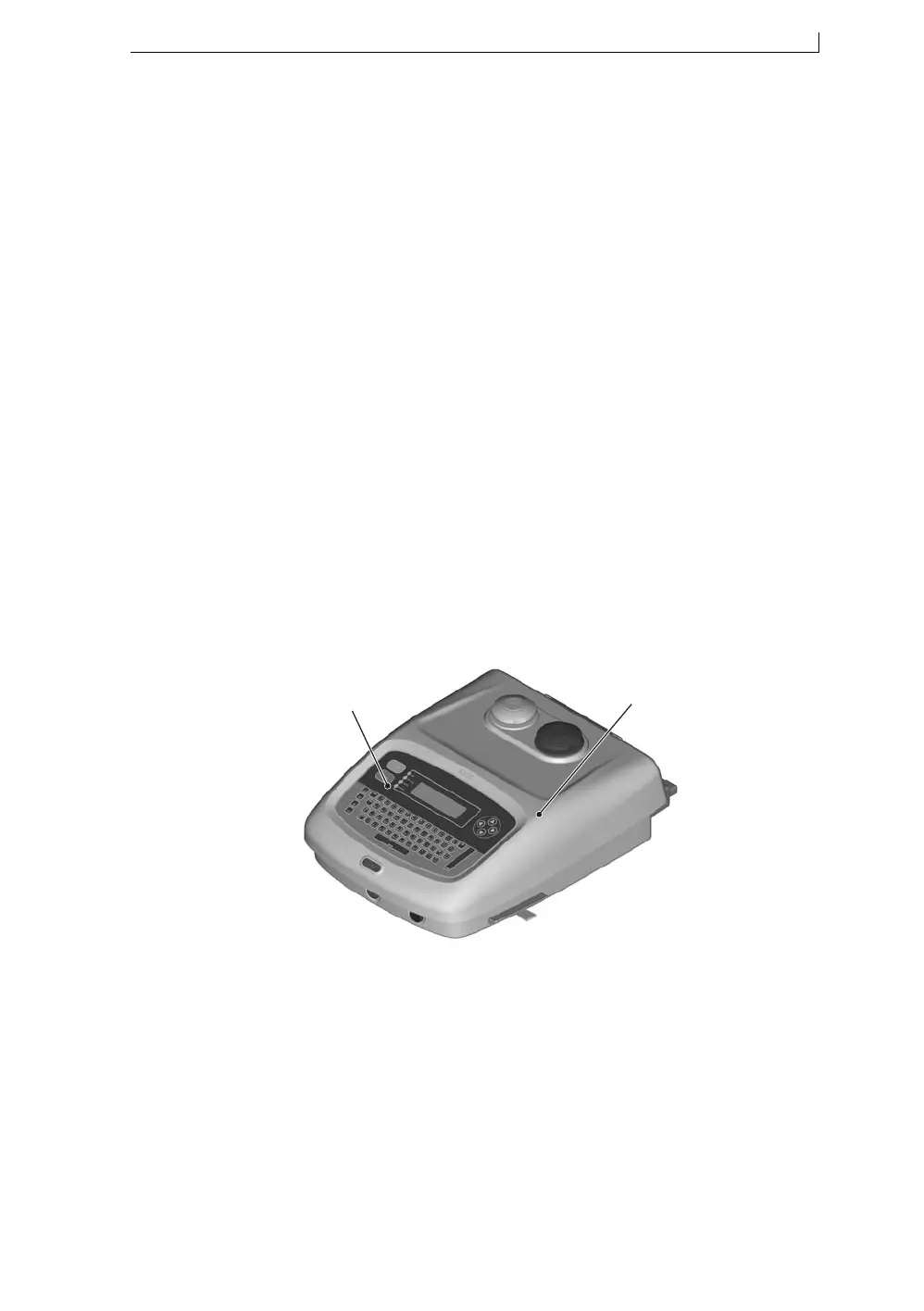

Figure 1-1 Linx 4900 Ink Jet Printer
The printhead is attached to the rear of the printer cabinet by a flexible
conduit.
During operation, the printer is located adjacent to a production line to
allow printing onto the product as it passes the printhead. A product sensor
(such as a photocell) is normally used to detect the presence of the product
and synchronize printing.
A Printer Control Panel
B Printer Cabinet
49142
B
A
