Chapter 7: Diagnostics and Maintenance
MP65492–1 145 Linx 4900 Operating Manual
To refill with ink or solvent, do the following:
1. Remove the appropriate filler cap. The white filler cap with the letter
‘S’ indicates the solvent tank, while the black filler cap with a ‘drop’
icon indicates the ink tank.
2. Remove the cap from the filler bottle, and invert the bottle into the
correct filler point as shown below:

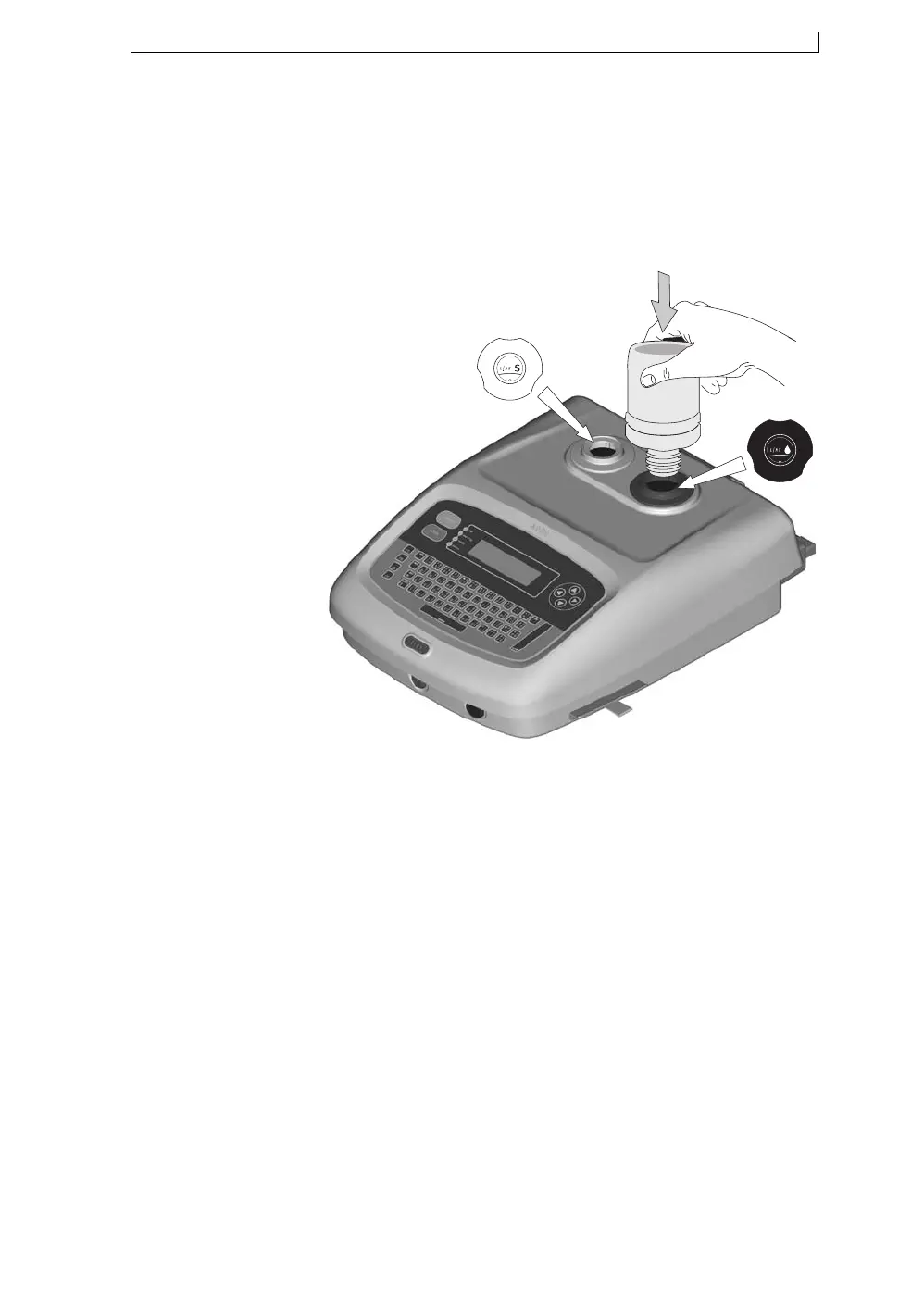

Figure 7-14 Refilling with Ink and Solvent
3. Press down the bottle to pierce the foil seal, and wait for
approximately 15 seconds to allow the contents to drain into the
system. The “3.03 Ink Low” or “3.04 Solvent Low” warning
disappears from the Status Line.
4. Ensure that the bottle is empty, then remove the bottle and refit the
filler cap.
49144
Ink
Solvent
