MacDon PW8 - Page 104

215575 88 Revision B

&
%
$
'
(
)

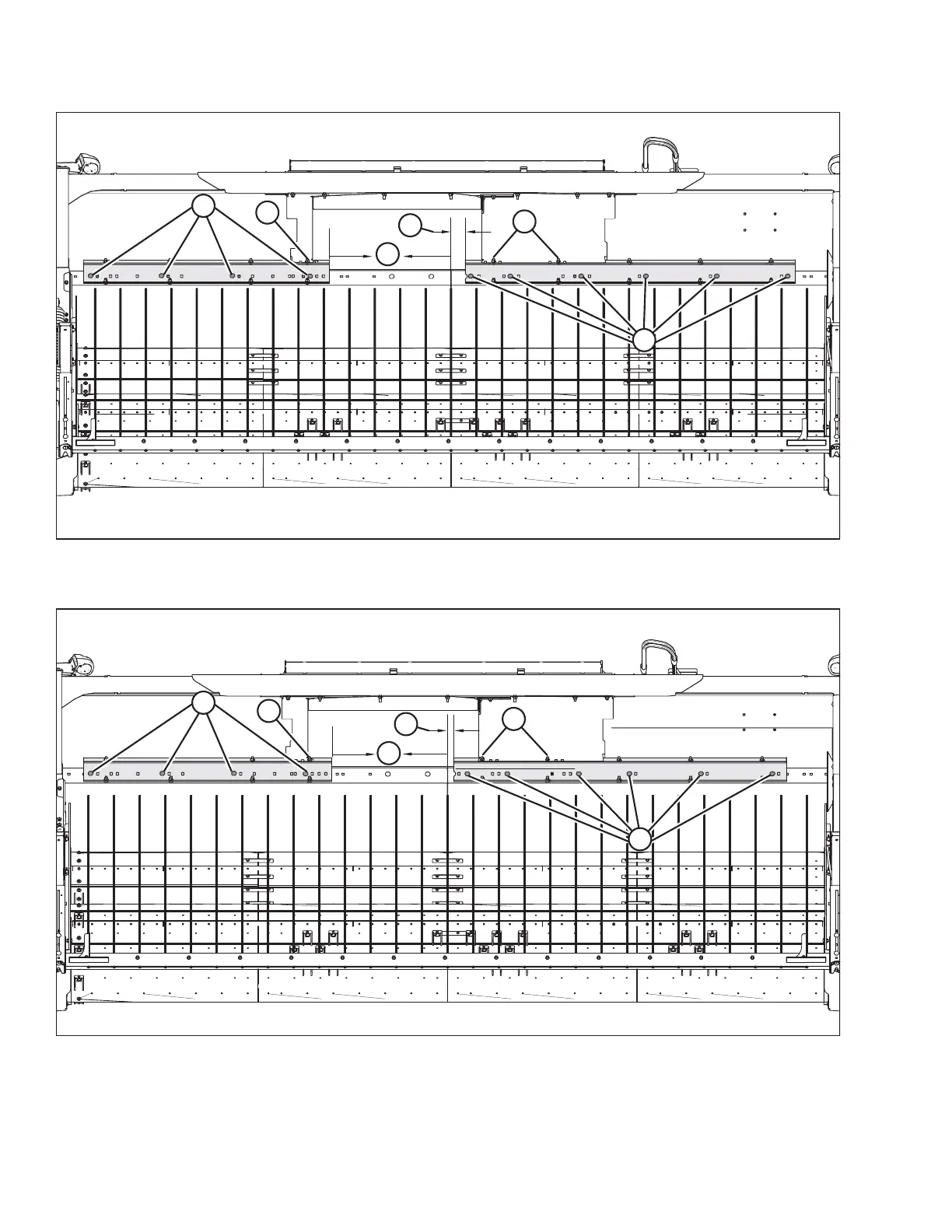

Figure 3.139: Factory Configuration 816 mm (32-1/8 in.)
A - Right Stripper Bracket Bolts x 4 B - Right Side Filler Bolt C - Right Stripper to Center of Feed Pan 729 mm
D - Left Stripper Bracket Bolts x 6 E - Left Side Filler Bolts F - Left Stripper to Center of Feed Pan 87 mm

&
%
$
'
(
)
Figure 3.140: Narrow Configuration 725 mm (28-1/2 in.)
A - Right Stripper Bracket Bolts x 4 B - Right Side Filler Bolt C - Right Stripper to Center of Feed Pan 688 mm
D - Left Stripper Bracket Bolts x 6 E - Left Side Filler Bolts F - Left Stripper to Center of Feed Pan 37 mm
OPERATION
