215575 89 Revision B
&
%
$
'
(
)

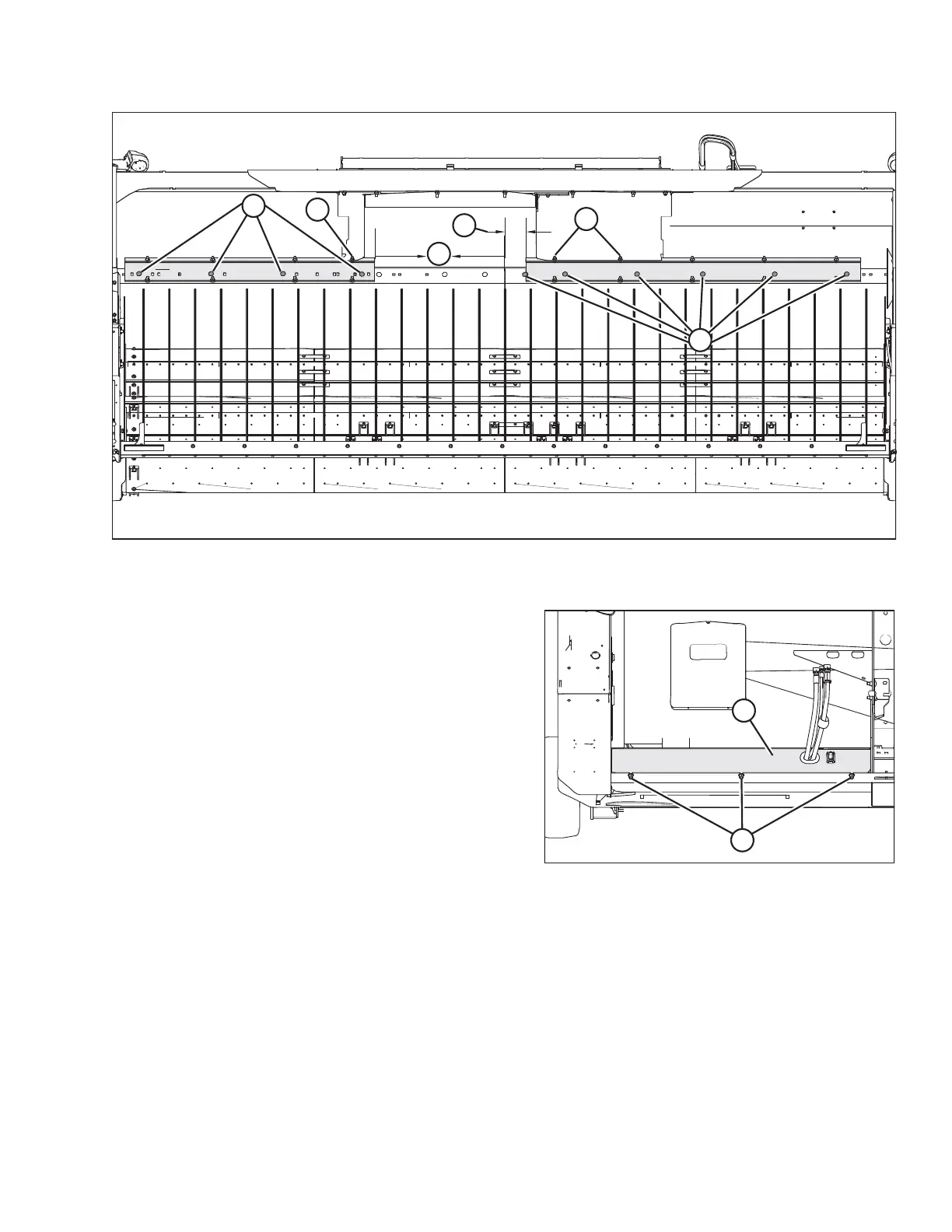

Figure 3.141: Wide Configuration 893 mm (35-1/8 in.)
A - Right Stripper Bracket Bolts x 4 B - Right Side Filler Bolt C - Right Stripper to Center of Feed Pan 769 mm
D - Left Stripper Bracket Bolts x 6 E - Left Side Filler Bolts F - Left Stripper to Center of Feed Pan 124 mm
Figure 3.142: Left Cover – Right Side Opposite
3. Check the clearance between the auger flighting and the
stripper plates, and adjust it if necessary. Refer to Stripper
Plate Clearance, page 86.
4. When your adjustments are complete, replace cover (B)
and secure it with bolts (A) on both sides of the header.
OPERATION
