MacDon PW8 - Page 110

215575 94 Revision B

$
%
&

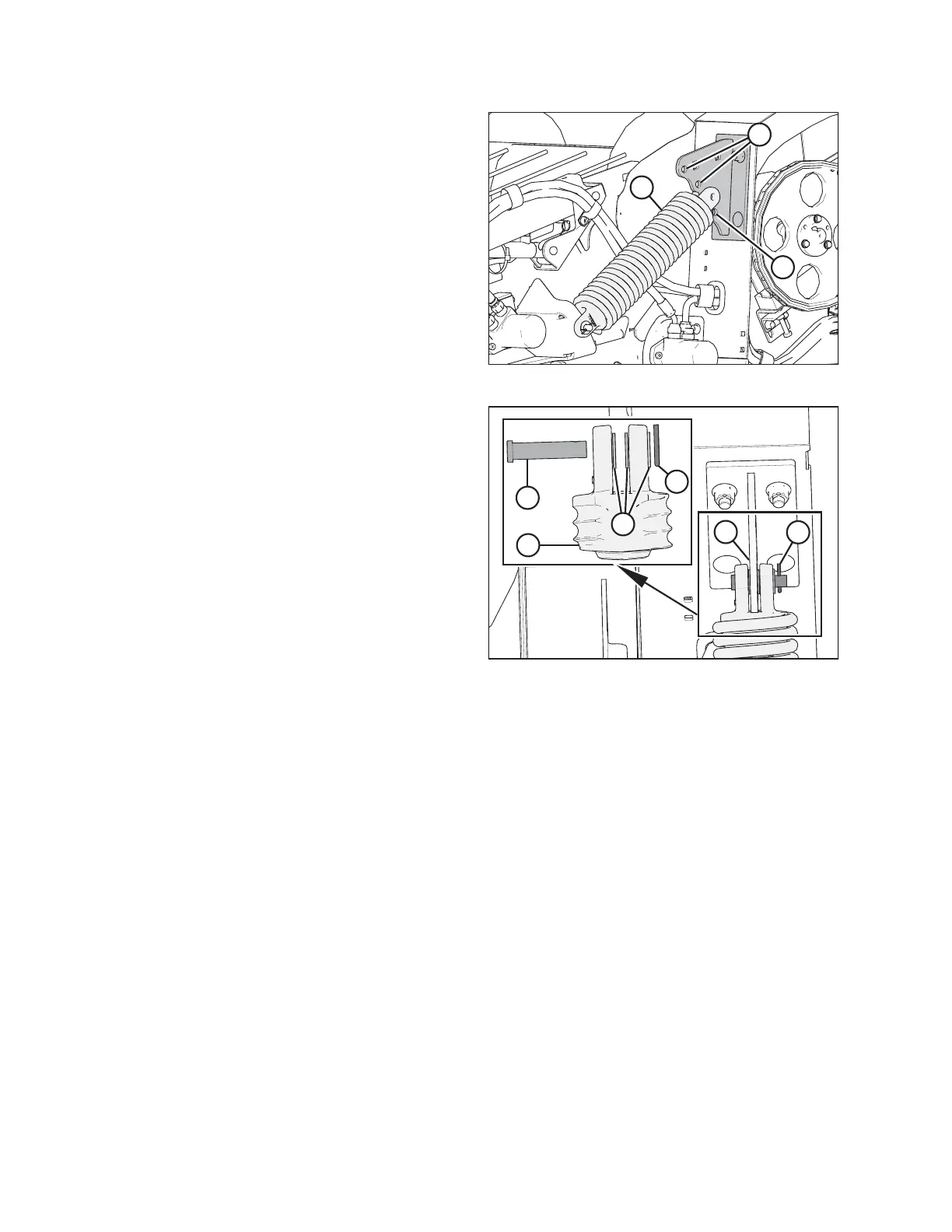

Figure 3.151: Left Spring Float Anchor
6. Move spring float assembly (A) to float anchor holes (B) to
reduce the pressure on the ground wheel, or move spring
float assembly to float anchor hole (C) to increase the
pressure on the ground wheel.
IMPORTANT:
To prevent damage to the draper deck, the left and right
spring float assemblies must be set to the same anchor hole
position.
NOTE:
If the spring float assembly (A) hole does not align with
float anchor holes (B) and (C), raise or lower header as
necessary.

$
%
&
'
(
(
Figure 3.152: Left Spring Float Assembly Clevis Pin
7. Insert clevis pin (A) from the inboard side through the rod
end of spring float assembly (B), along with three flat
washers (C), and anchor (D) as shown. Secure the clevis pin
with cotter pin (E).
8. Repeat Steps 4, page 93 to 7, page 94 on the opposite side
of header, ensuring that the left and right spring float
assemblies are set to the same anchor hole position.
9. Close the left endshield. For instructions, refer to 3.3.2
Closing Left Endshield, page 26.
10. Replace the right endshield, if previously removed.
OPERATION
