215575 112 Revision B
$
%
&

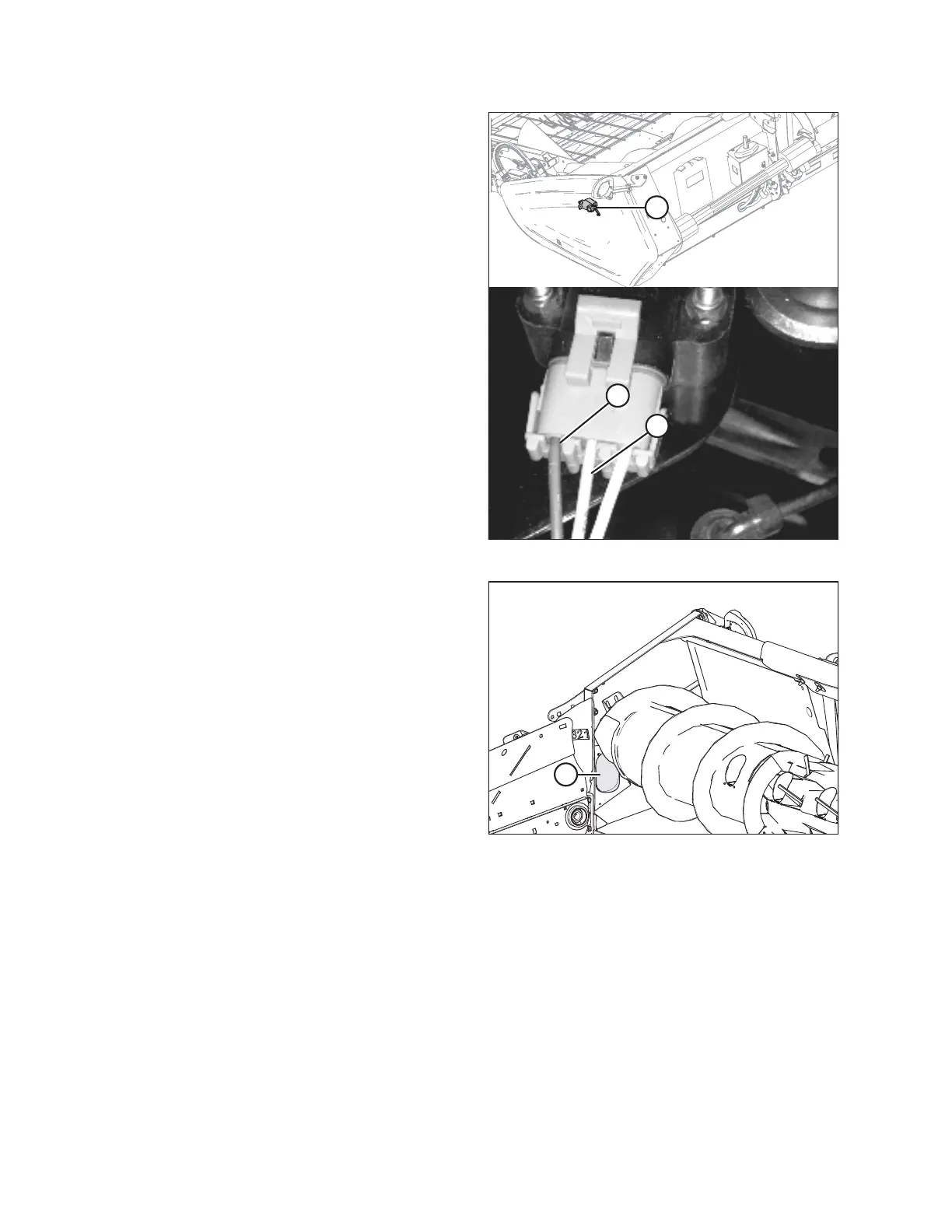

Figure 4.17: Left Height Sensor
4. Locate left height sensor (A).
NOTE:
The sensor and the connector may not be exactly as shown.
5. With the connector plugged into the sensor, measure the
voltage between orange signal wire (B) in the middle
position on the connector and brown ground wire (C) at
one side of the connector. The voltage obtained from this
reading tells you the maximum voltage for the left sensor.
$
Figure 4.18: Right Access Panel
6. Locate access panel (A) on the inside of the right endsheet.
AUTO HEADER HEIGHT CONTROL
To Next Page
