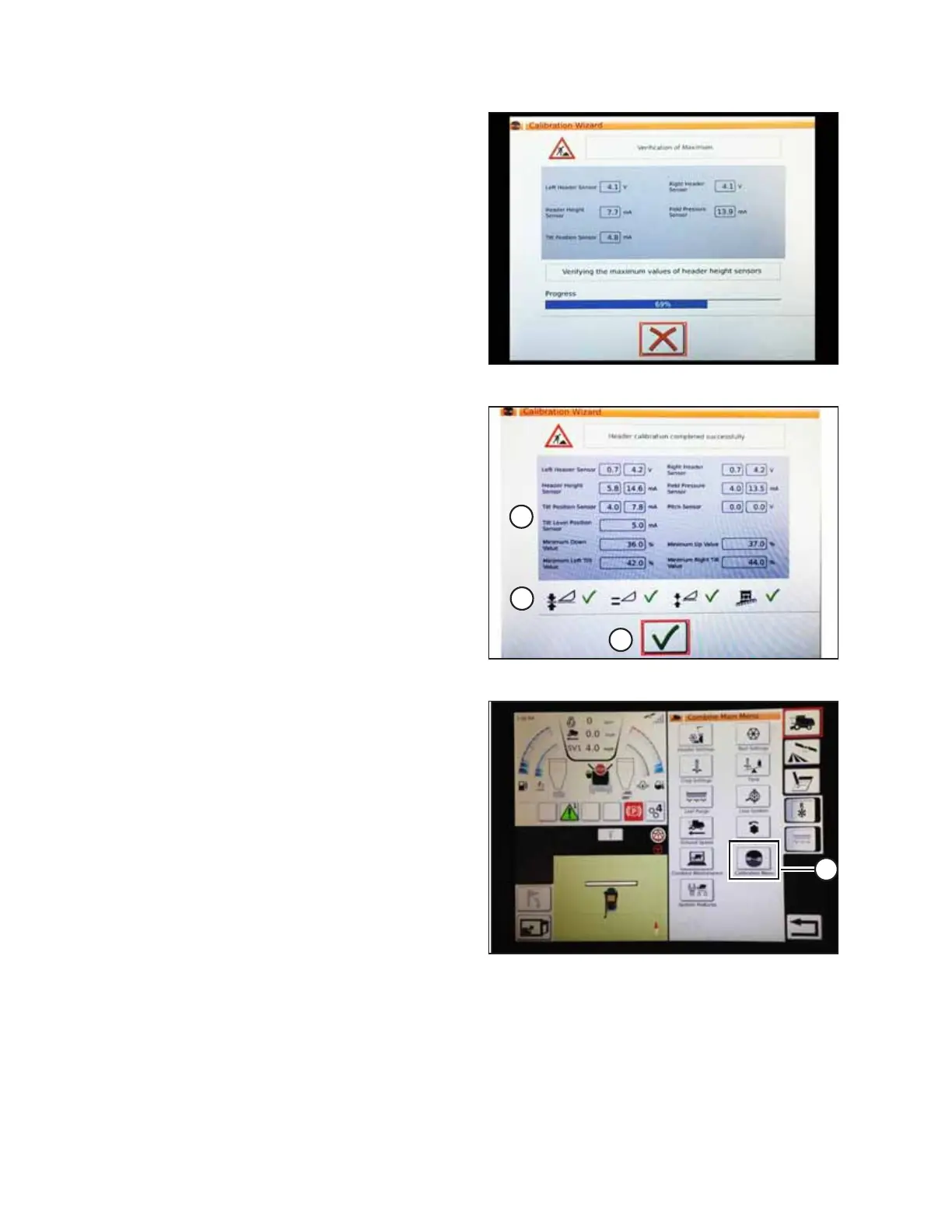

Figure 4.134: Calibration In Progress
A progress bar will appear. The calibration wizard can be
stopped at any time by touching the red X. The header
moves automatically during this process.
$
%
&
Figure 4.135: Completed Calibration Page
7. When the calibration procedure is complete, a message
appears displaying summary information (A). A green check
mark on row (B) confirms that a particular function has
been calibrated. Touch bottom green check mark (C) to
save these settings.
$
Figure 4.136: Direct Calibration Menu
NOTE:
On the COMBINE MAIN MENU page, touching CALIBRATION
icon (A) opens a general CALIBRATION menu where you can
directly choose settings such as header and reel calibration.
