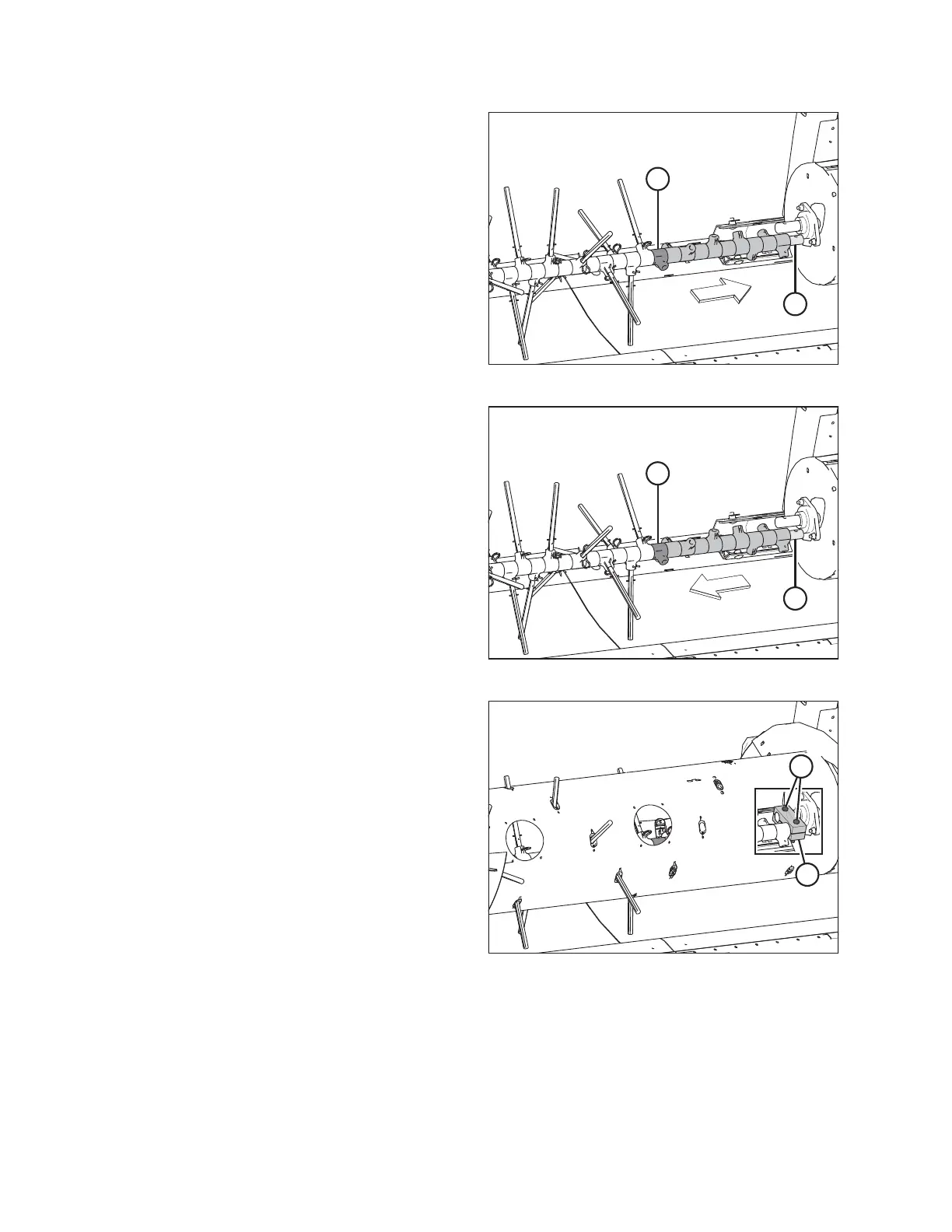

Figure 5.83: Left Auger Finger Holders
11. Reach inside the auger and slide auger finger holders (A) off
the end of shaft (B).
NOTE:
The middle auger sheet has been removed from the
illustration for the sake of clarity.
$
%
Figure 5.84: Left Auger Finger Holders
12. Reach inside the auger, and slide new auger finger
holders (A) onto shaft (B).
NOTE:
The middle auger sheet has been removed from the
illustration for the sake of clarity.
$
%
Figure 5.85: Side Auger Finger Support Clamp —
Cutaway View Shown
13. Reach inside the auger, place finger support clamp (B) onto
the shafts, and secure the clamp with two M10 hex head
bolts, nuts, and washers (A). Torque the bolts to 54–61 Nm
(40–45 lbf∙ft).
MAINTENANCE AND SERVICING
