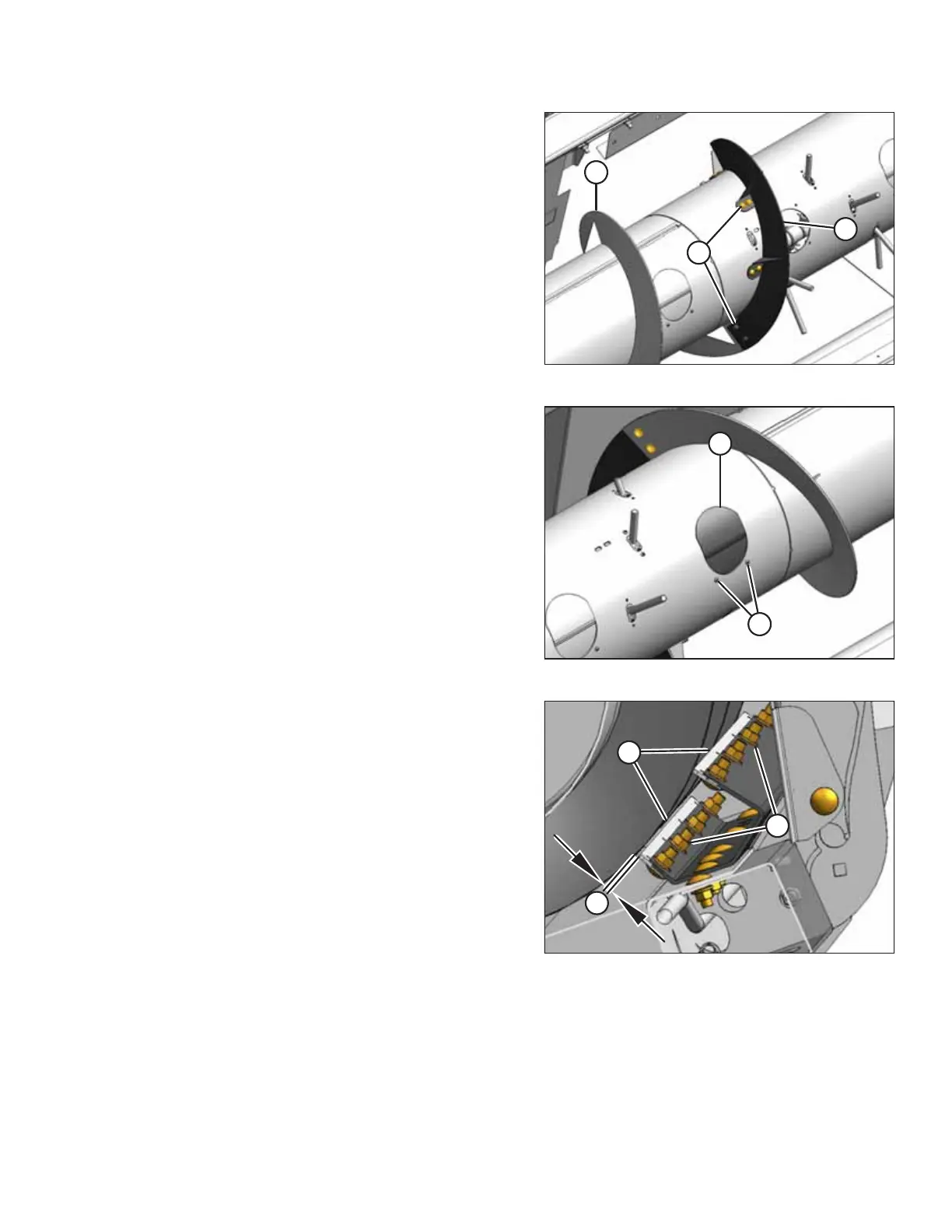

Figure 5.91: Flighting Extension
4. Place new flighting extension (A) on the auger and ensure
that the new flighting is positioned on the outboard side of
existing flighting (B).
5. Secure flighting extension (A) to the auger using existing
hardware (C).
NOTE:
Install bolts (C) with their heads facing inboard and the nuts
facing outboard.
6. Repeat Steps 3, page 258 to 5, page 259 on the opposite
side of the auger.
Figure 5.92: Access Cover
IMPORTANT:
To avoid damaging the auger, remove all loose hardware and
tools from inside the auger.
7. Install access covers (A) using two screws (B) coated with
medium-strength threadlocker (Loctite
®
243 or equivalent).
Torque the screws to 9 Nm (80 lbf∙in).
Figure 5.93: Stripper Plate Clearance
8. Rotate the auger manually to check for interference and to
check the clearance between the auger flighting and
stripper plates (B). Ensure that clearance (C) is 3–8mm
(1/8–5/16 in.) and adjust nuts (A) if necessary. For
instructions, refer to Adjusting Stripper Plate Clearance,
page 87.
