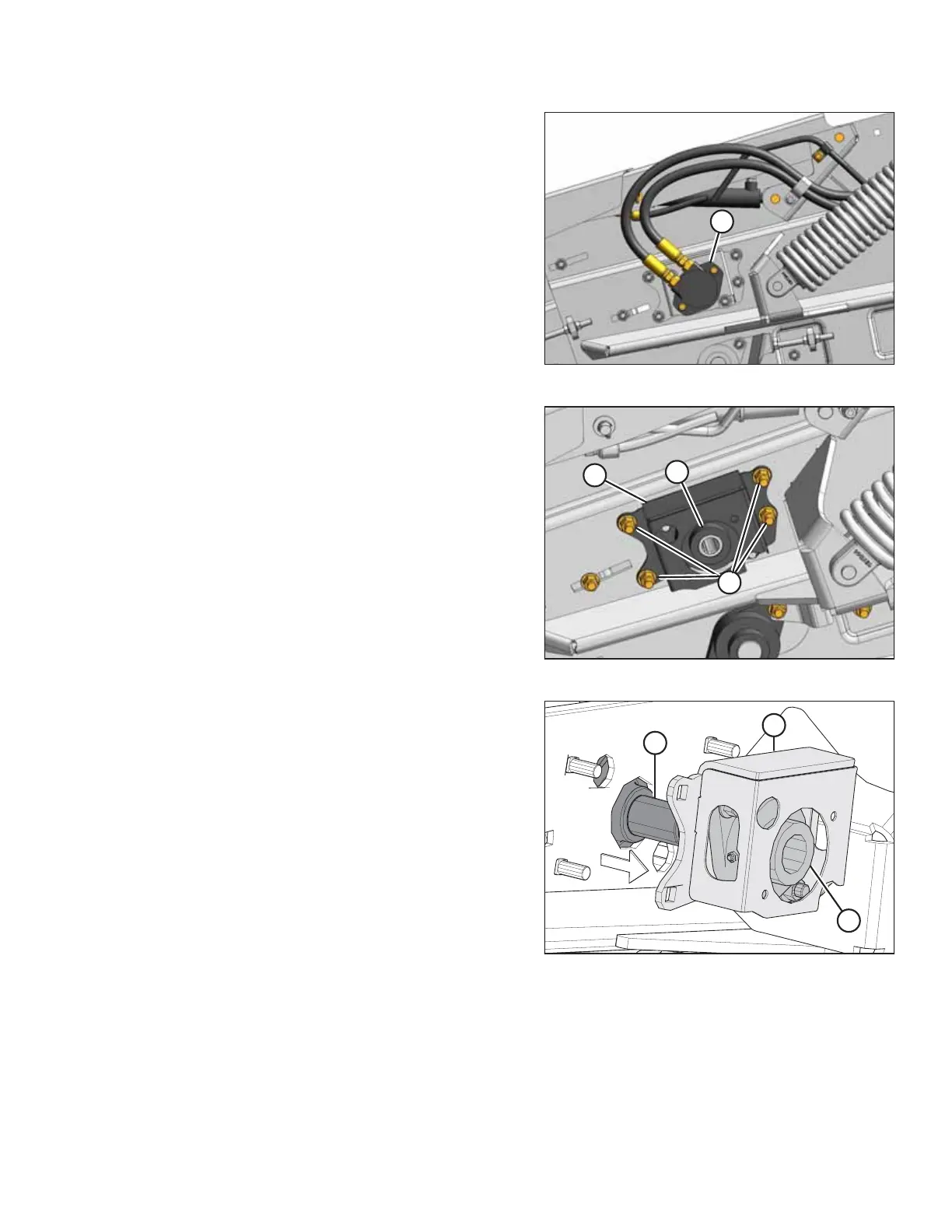

Figure 5.145: Front Deck Hydraulic Motor
6. Remove front hydraulic motor (A). Refer to Removing Front
Hydraulic Motor, page 233 for instructions.
Figure 5.146: Motor Support Secured to Header
7. Turn the draper roller manually until the set screw on lock
collar (A) is accessible.
8. Loosen the set screw and loosen lock collar (A) by turning it
counterclockwise using a hammer and punch. Remove
the collar.
9. Support the roller with a wooden block, and remove four
M12 nuts from bolts (B) securing motor support (C) to
the frame.
Figure 5.147: Motor Support Removed from Header
10. Remove motor support (A) along with bearing (B) from
shaft (C) in the direction indicated by the arrow.
