215575 290 Revision B

$

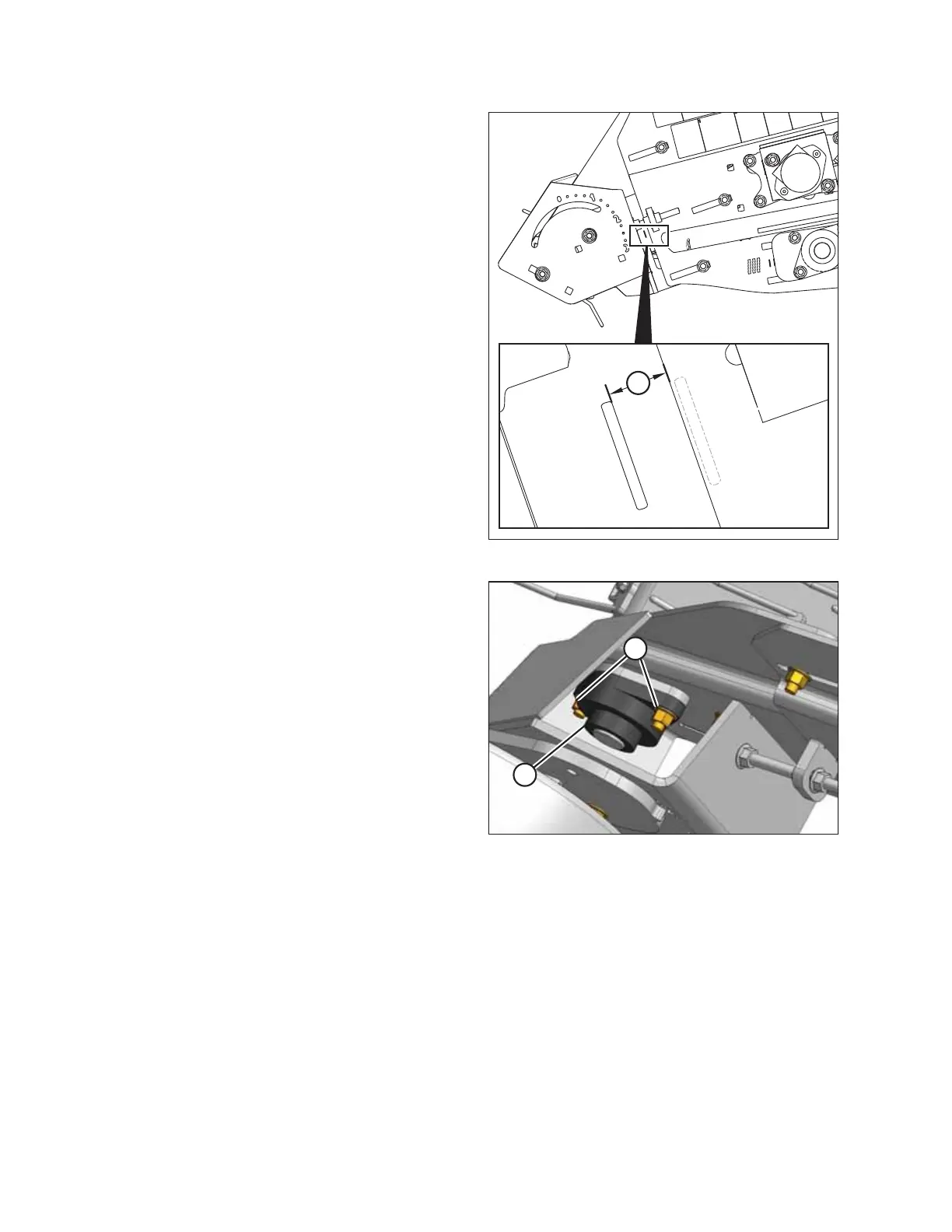

Figure 5.163: Left Front Deck Slot Distance
13. Measure distance (A) between the frame and nearest slot.
Repeat this step on the right side.
NOTE:
These measurements will be used later in this procedure to
verify the draper belt alignment.

$
%
Figure 5.164: Left Front Deck Idler Roller
14. On the left front deck idler roller, tighten locking collar (A)
and two nuts (B). Repeat this procedure on the right front
deck idler roller.
MAINTENANCE AND SERVICING
